Mercedes A0309971648 - ПРОКЛАДКА

HL 4/40 DS-7,7 770.003

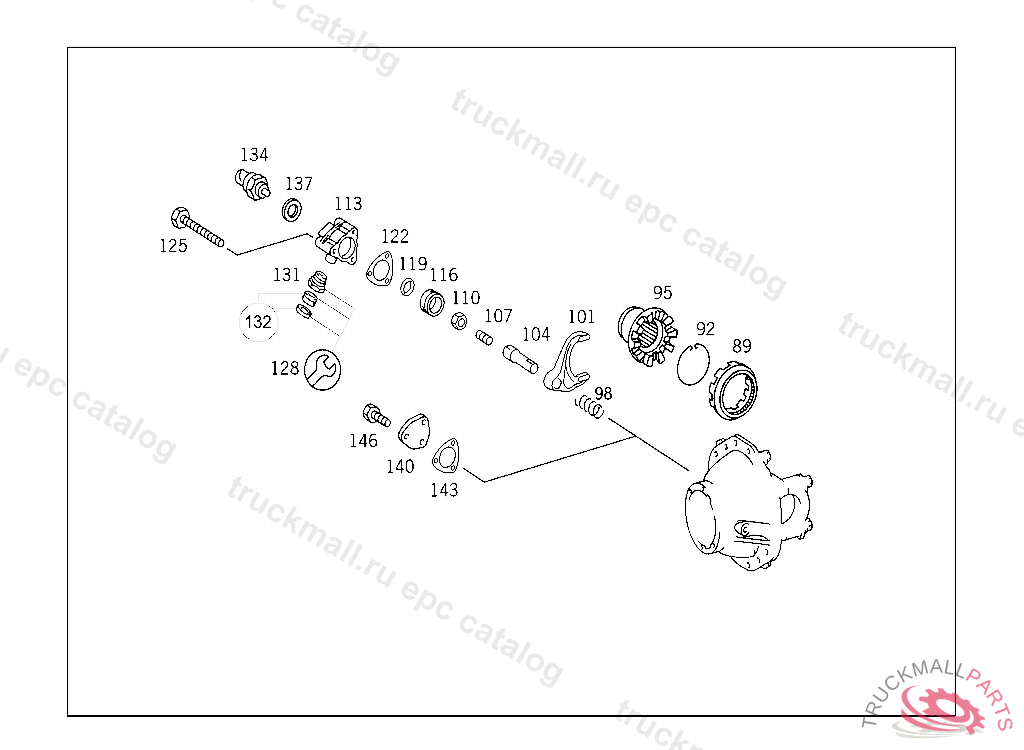

35 REAR AXLE - 350 DIFFERENTIAL GEAR,DIFFERENTIAL LOCK IL. 2
  • Поз.
    Артикул
    Описание
  • 89
    COUPLING (DOG COUPLING)
  • 92
    WIRE RING CLUTCH TO DIFFERENTIAL GEAR
  • 95
    FOLLOWER DIFFERENTIAL LOCK CONTROL
  • 95
    FOLLOWER DIFFERENTIAL LOCK CONTROL
  • 98
    SPRING SHIFTING FORK TO SHIFTING SHAFT
  • 101
    SHIFTING FORK DIFFERENTIAL LOCK CONTROL
  • 104
    SHAFT TRANSVERSE DIFFERENTIAL LOCK CONTROL
  • 107
    HEADLESS SETSCREW TRANSVERSE DIFFERENTIAL LOCK
  • 110
    NUT
  • 113
    CYLINDER (OPERATING CYLINDER),TRANSVERSE DIFFERENTIAL LOCK
  • 116
    PISTON TRANSVERSE DIFFERENTIAL LOCK
  • 116
    PISTON TRANSVERSE DIFFERENTIAL LOCK
  • 119
    SEAL RING SHIFTING CYLINDER
  • 122
    GASKET SHIFTING CYLINDER TO INTERMEDIATE FLANGE
  • 125
    SCREW BRACKET TO BEARING BRACKET
  • 128
    REPAIR KIT , Replaced By: A0309971648
  • 128
    SEAL RING. REPAIR KIT COMPRESSED-AIR-LINE PLUG-CONNECTION TO M 10
  • 131
    UNION SCREW PNEUMATIC CONNECTION,SUPPLY UNIT M 10, VOSS 232, SDF
  • 131
    UNION SCREW COMPRESSED-AIR-LINE PLUG-CONNECTION TO M 10, VOSS 230
  • 131
    UNION SCREW COMPRESSED-AIR-LINE PLUG-CONNECTION M 10, VOSS 232, Replaced By: A0009975034
  • 131
    UNION SCREW SPRING LOAD ACCUMULATOR CYLINDER M10X1 / VOSS 230,D 259885
  • 132
    REPAIR KIT O-RING COMPRESSED-AIR-LINE PLUG-CONNECTION TO M 10, SDF
  • 134
    SWITCH
  • 134
    SWITCH , Replaced By: A0015455709
  • 137
    SEAL RING ON OIL PUMP HOUSING
