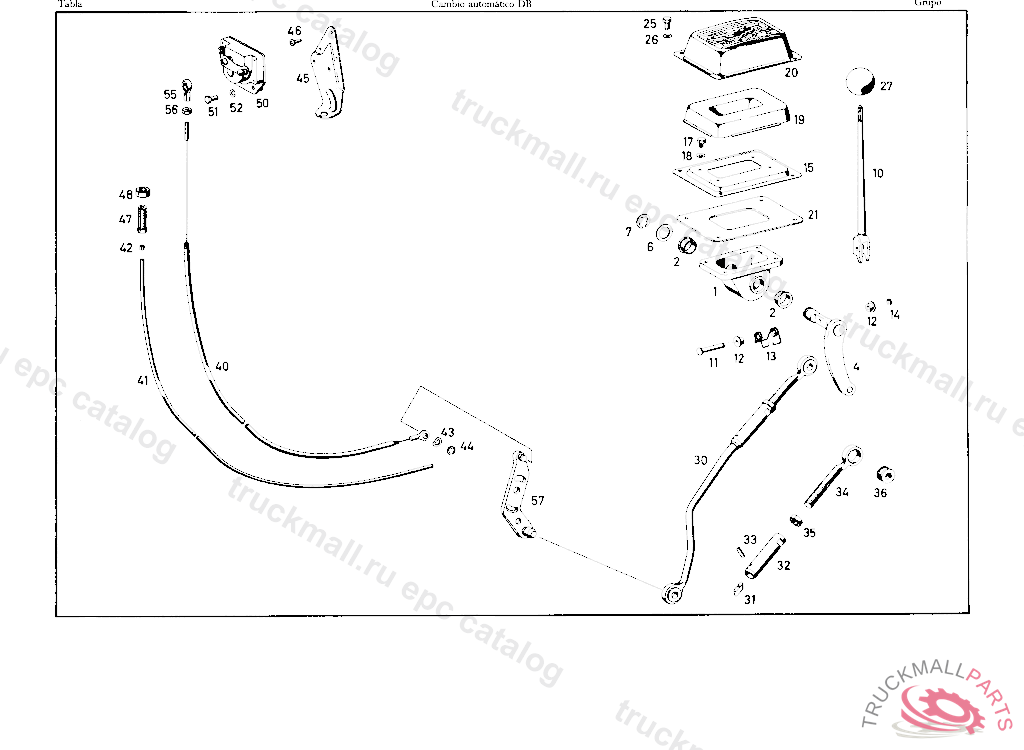

Поз.
Артикул
Описание
1
CASE
2
BUSHING
4
LEVER , Replaced By: A1122600237
6
WASHER
7
LOCK RING REVERSE SPEED STOP
10
SHIFT LEVER
11
PIN
12
BUSHING
13
SPRING
14
LOCK , Replaced By: N912002006000
15
BRACKET
17
SCREW SHUT-OFF VALVE TO BRACKET
18
LOCK WASHER 3/2-WAY SOLENOID VALVE TO BRACKET
19
BOOT
20
GUIDE PLATE
21
SHIM
25
SCREW BRACKET TO BRACKET
26
SPRING WASHER CABLE TO ALTERNATOR
27
HANDLE , 108.018,019 071883 EXCEPT FOR 071802,071873 109.016 UNTIL PRODUCTION STOP 109.056 003758 111.024,025 005065 111.026,027 002941
31
SEAL
33
RIVET
35
NUT
36
BUSHING
40
WIRE CABLE
41
INSULATING HOSE5 X 0.6 MM, ORDER BY THE METER
42
SEAL RING
43
SPRING WASHER PROTECTIVE PLATE TO BELL HOUSING
44
LOCK PLATE
45
BRACKET
46
SHEET METAL SCREW WIRE CABLE TO CAB
47
SPACER TUBE
48
NUT
50
SWITCH,AUTOMATIC
51
SCREW FAN SHROUD TO RADIATOR
52
LOCK WASHER EXTENSIBLE BRAKE VALVE TO CAB
55
BALL SOCKET , Replaced By: A6089910022
56
NUT CLAMP TO BRACKET
999
BALL PIVOT
999
GEAR SELECTOR LEVER
999
SHIFTING ROD , Replaced By: A1122604433
999
SHIFTING ROD
999
END PIECE , Replaced By: A1132671132
999
GUIDE PLATE , Replaced By: A1112600028
999
GUIDE
999
END PIECE
999
WASHER , UP TO CHASSIS: 017 029988 114 000523 117 064694
999
SCREW MANUAL PUMP TO BRACKET,D 031246
999
NUT
999
BULB BLINKER LAMP, FOR U.S.A.
