Поз.
Артикул
Описание

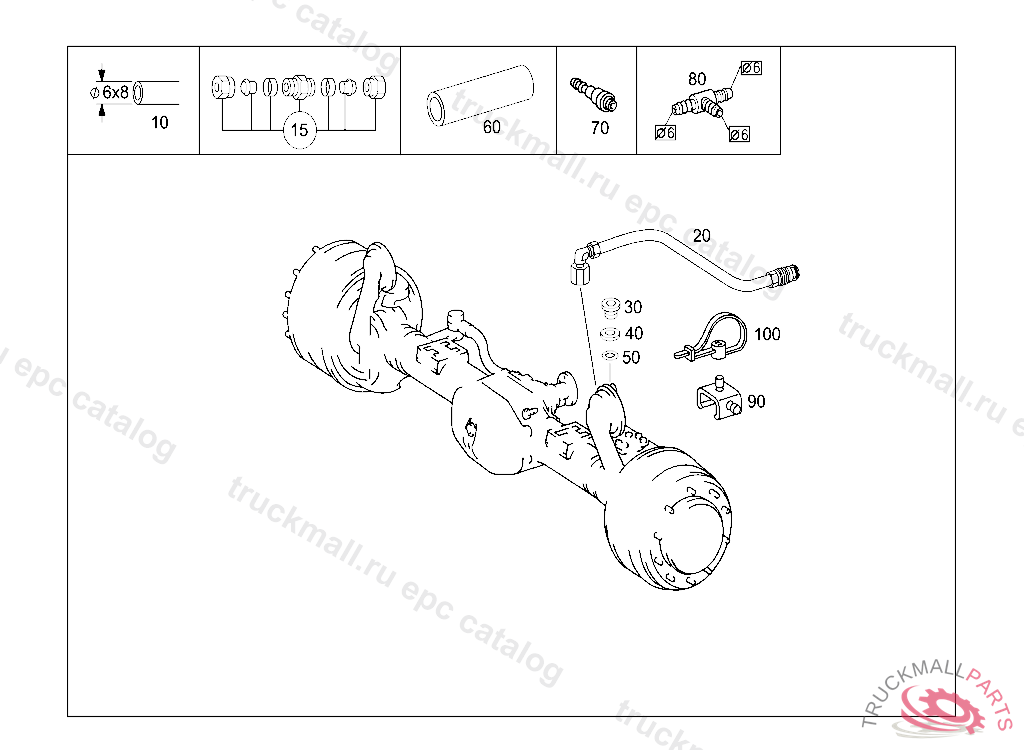

10
PLASTIC PIPE AERATION, ORDER BY THE METER
15
FITTING (PARTS KIT),LINE RUPTURE
20
VENT LINE FRONT AXLE WHEEL CYLINDER BREATHING, RIGHT AND LEFT
30
SCREW PLUG, FILLING. SCREW PLUG 3/2-WAY VALVE,CONNECTION: "10"
40
THRUST RING LOAD/NO-LOAD VALVE,CONNECTION: "20",5 727400
50
SEAL RING LOAD/NO-LOAD VALVE,CONNECTION: "40"
60
HOSE I.D., 30MM, ORDER BY THE METER
70
COUPLING CONNECTION OF COMPRESSED AIR LINE 6MM
80
T-FITTING COMPRESSED-AIR-LINE PLUG-CONNECTION
90
CLIP SENSOR CABLE
100
LOOM TIE BRAKE CYLINDER
