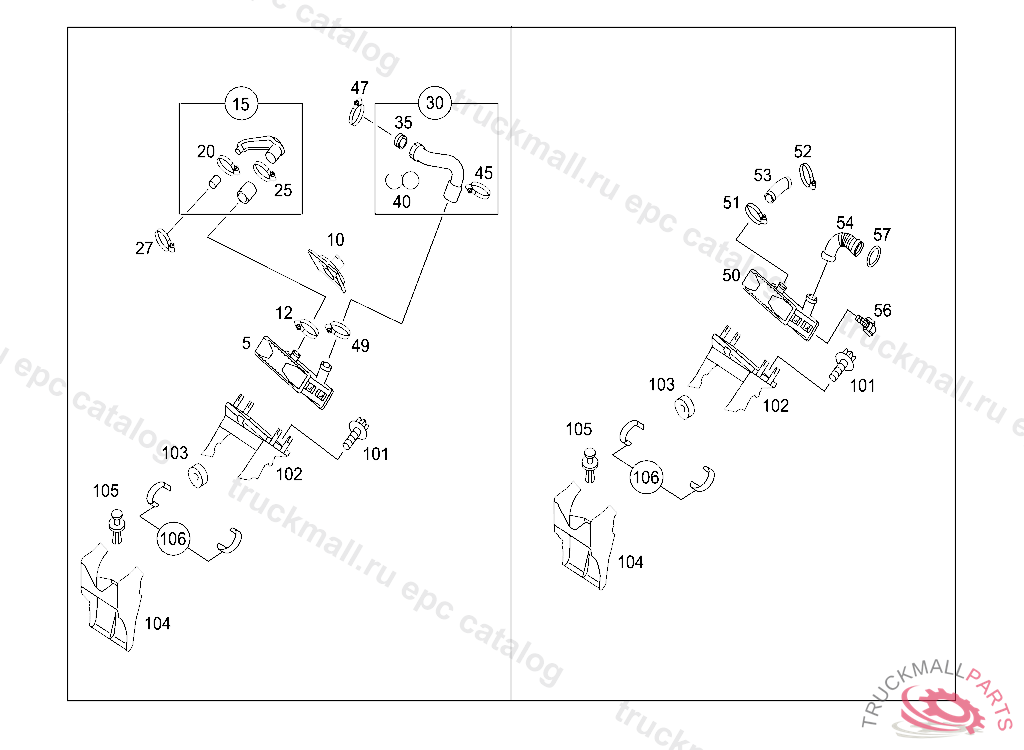

Поз.
Артикул
Описание
5
CHARGE AIR COOLER
10
ELECTRIC FAN INTERCOOLER
12
CLAMP W DRIVE A WASHER CHARGE AIR MANIFOLD, LEFT
15
AIR LINE EXHAUST GAS TURB
20
CLAMP W DRIVE A WASHER FROM AIR INTAKE PIPE TO TURBOCHARGER
25
CLAMP W DRIVE A WASHER CHARGE AIR MANIFOLD, LEFT
27
CLAMP W DRIVE A WASHER FROM AIR INTAKE PIPE TO TURBOCHARGER
30
AIR LINE INTERCOOLER MIXT
35
SEAL AIR LINE
40
CABLE STRAP
40
CLIP
45
CLIP CLIC E465
47
SCREW CLIP 36-46
47
SCREW CLIP 36-46 , FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO. H 41268720011129, Replaced By: Q0011684V000000000
49
SCREW CLIP 36-46
50
CHARGE AIR COOLER
51
CLAMP W DRIVE A WASHER AIR INTAKE PIPE TO ENGINE
52
CLAMP W DRIVE A WASHER FROM AIR INTAKE PIPE TO TURBOCHARGER
53
AIR LINE EXHAUST GAS TURB
54
AIR LINE INTERCOOLER MIXT
56
TEMPERATURE SENSOR. SENDER UNIT , Replaced By: A0061532028
56
TEMPERATURE SENSOR. SENDER UNIT INTAKE AIR TEMPERATURE SENSOR
57
O-RING
101
TORX SCREW M6 X 20 - 8.8M6 X 16 DIN 6900 Z4-2
102
CARRIER CHARGE AIR COOLER
103
GROMMET CARRIER
104
INTAKE AIR DUCT
105
SPLIT RIVET INTAKE AIR DU
106
CLIP
