Поз.
Артикул
Описание

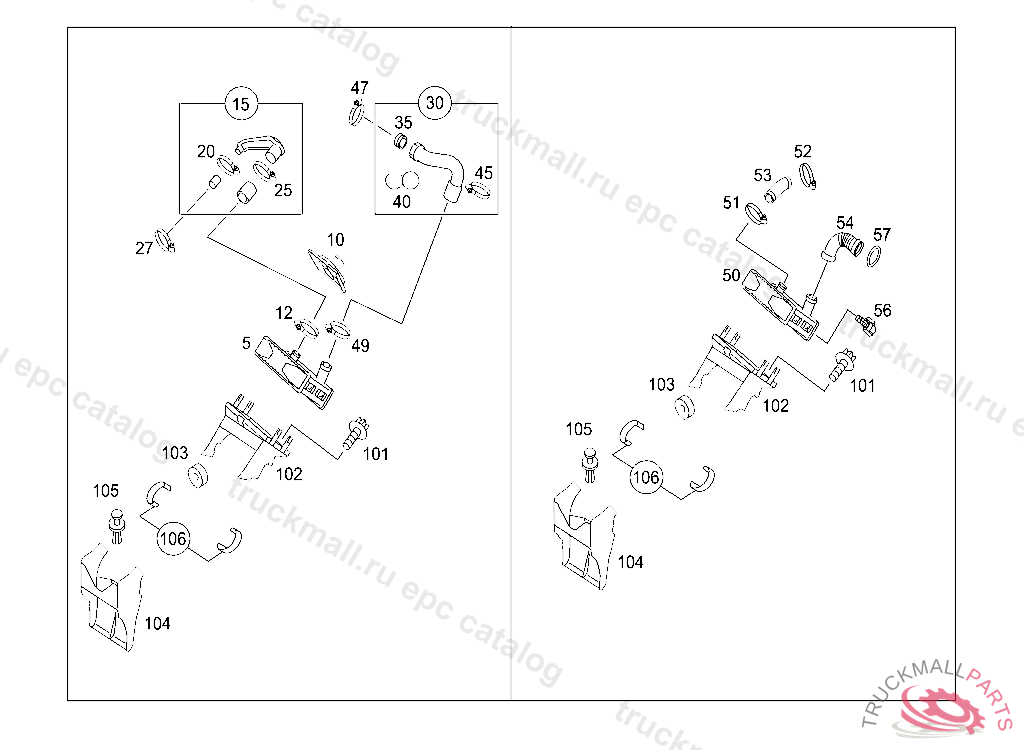

5
CHARGE AIR COOLER
10
ELECTRIC FAN INTERCOOLER
12
CLAMP W DRIVE A WASHER CHARGE AIR MANIFOLD, LEFT
15
AIR LINE EXHAUST GAS TURB
20
CLAMP W DRIVE A WASHER FROM AIR INTAKE PIPE TO TURBOCHARGER
25
CLAMP W DRIVE A WASHER CHARGE AIR MANIFOLD, LEFT
27
CLAMP W DRIVE A WASHER FROM AIR INTAKE PIPE TO TURBOCHARGER
30
AIR LINE INTERCOOLER MIXT
35
SEAL AIR LINE
40
CABLE STRAP
40
CLIP
45
CLIP CLIC E465
47
SCREW CLIP 36-46
49
SCREW CLIP 36-46
50
CHARGE AIR COOLER
51
CLAMP W DRIVE A WASHER AIR INTAKE PIPE TO ENGINE
52
CLAMP W DRIVE A WASHER FROM AIR INTAKE PIPE TO TURBOCHARGER
53
AIR LINE EXHAUST GAS TURB
54
AIR LINE INTERCOOLER MIXT
56
TEMPERATURE SENSOR. SENDER UNIT INTAKE AIR TEMPERATURE SENSOR
56
TEMPERATURE SENSOR. SENDER UNIT , Replaced By: A0061532028
57
O-RING
101
TORX SCREW M6 X 20 - 8.8M6 X 16 DIN 6900 Z4-2
102
CARRIER CHARGE AIR COOLER
103
GROMMET CARRIER
104
INTAKE AIR DUCT
105
SPLIT RIVET INTAKE AIR DU
106
CLIP
