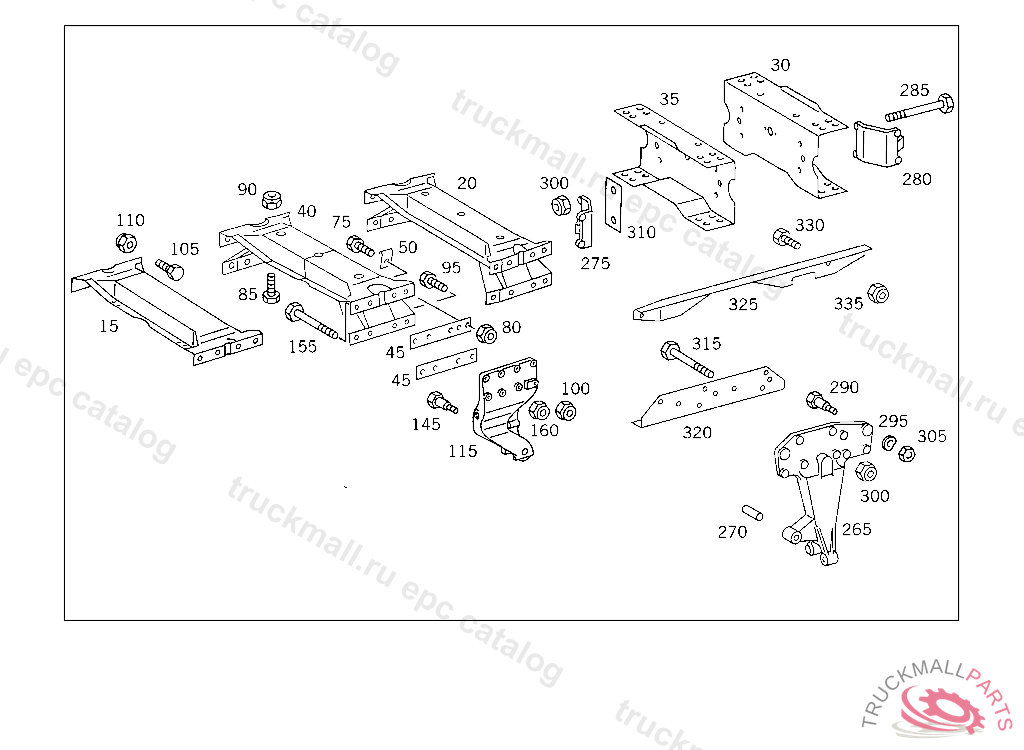

Поз.
Артикул
Описание
15
CROSS MEMBERNO.3A
20
CROSS MEMBER STEERED AXLE SPRING FRONT BRACKET
20
CROSS MEMBER , Replaced By: A3913100136
30
CROSS MEMBER CENTRAL BEARING NO.5,5 295722
35
CROSS MEMBER CENTRAL BEARING
40
CROSS MEMBER REAR FRAME AREA
45
SHIM SUPPORT TO SIDE MEMBER
50
SHIM CROSS MEMBER AND STRUT TO SIDE MEMBER
75
SCREW APPARATUS SUPPORT TO FRAME
75
SCREW SUPPORT TO SIDE MEMBER M 14X45
75
SCREW , Replaced By: A9429901304
75
SCREW , Replaced By: N308676014012
80
NUT , Replaced By: N910113014000
80
NUT STEERING SUPPORT TO FRAME
85
HEXAGON HEAD BOLT , Replaced By: A0029902704
85
SCREW , Replaced By: N308676012013
90
HEXAGON NUT EXHAUST PIPE TO BRACKET ON SIDE MEMBER
90
NUT , Replaced By: N910113012003
95
SCREW CONSOLE TO FRAME
95
SCREW , Replaced By: N308676016020
100
NUT COMBINATION CYLINDER TO BEARING BRACKET, Replaced By: N910113016002
100
NUT COMBINATION CYLINDER TO BEARING BRACKET
105
SCREW BRACKET TO FRAME M 12X35
110
HEXAGON NUT EXHAUST PIPE TO BRACKET ON SIDE MEMBER
110
NUT , Replaced By: N910113012003
115
FRONT SPRING BRACKET STEERED AXLE,LEFT FRONT
115
FRONT SPRING BRACKET STEERED AXLE,LEFT FRONT
145
SCREWM 16X18X38X60
155
SCREW TRAILER COUPLING TO REAR CROSS MEMBER
155
SCREWM 16X18X63X85
155
SCREW SHOCK ABSORBER TO BOTTOM BRACKET M 16X85
155
SCREW FRONT SPRING FRONT BRACKET TO SIDE MEMBER M 16X55
160
NUT , Replaced By: N910113016001
160
NUT CONSOLE TO SUPPORT
265
CONSOLE STEERED AXLE,LEFT
265
CONSOLE STEERED AXLE,RIGHT
270
BUSHING
275
BEARING BRACKET CONTROL ARM,REAR,5 009667
280
BRACKET CONTROL ARM,FRONT, 415,416 5 295723 417 5 3074165 557246
285
SCREW SUPPORTING ARM TO CYLINDER CRANKCASE M 18X60
285
SCREW , Replaced By: N308676018010
285
SCREW BEARING BRACKET TO SIDE AND CROSS MEMBERS M 18X85,5 557245
285
SCREW BEARING ON CENTER BEARING BRACKET M 18X100
285
SCREW BEARING BRACKET TO SIDE MEMBER M 18X1,5X90,K 164364
285
SCREW , Replaced By: N308765018001
285
SCREW ENGINE MOUNTING TO SUPPORTING ARM M 18X1.5X145
290
FITTED SCREW CONSOLE TO FRAME M 27X2X90
290
FITTED SCREW BEARING BRACKET TO SIDE AND CROSS MEMBERS
295
SPRING WASHER AT CAB FLOOR
300
NUT , Replaced By: N910113018004
300
NUT INTERMEDIATE LEVER TO STEERING SUPPORT
305
NUT BEARING BRACKET TO SIDE AND CROSS MEMBERS
310
SHIM BEARING BRACKET TO CROSS MEMBER,5 295723
315
SCREW BEARING BRACKET TO SIDE AND CROSS MEMBERS M 18X85,5 557245
320
GUSSET PLATE LEFT BOTTOM
320
GUSSET PLATE RIGHT BOTTOM
325
ANGLE FRAME TRUSSING,RIGHT
325
ANGLE FRAME TRUSSING,LEFT
330
HEXAGON HEAD BOLT. SCREW BRACKET TO CROSS MEMBER
330
SCREW , Replaced By: N308676012013
330
HEXAGON HEAD BOLT , Replaced By: A0029902704
335
NUT , Replaced By: N910113012003
335
HEXAGON NUT EXHAUST PIPE TO BRACKET ON SIDE MEMBER
999
FRONT SPRING BRACKET , Replaced By: A6223220103
999
FRONT SPRING BRACKET , Replaced By: A6223220003
999
CROSS MEMBER , TO BE ADAPTED DURING ASSEMBLY, Replaced By: A3893120125
999
CROSS MEMBER , Replaced By: A6193120015
999
SHIM , Replaced By: A6453120084
999
CROSS MEMBER DISTANCE FROM FRONT AXLE: 1920 MM
999
BUSHING , Replaced By: A3523250150
999
CROSS MEMBER , Replaced By: A3953100736
999
CROSS MEMBER , Replaced By: A3873101036
