Поз.
Артикул
Описание
10
10
10
10
10
10
10

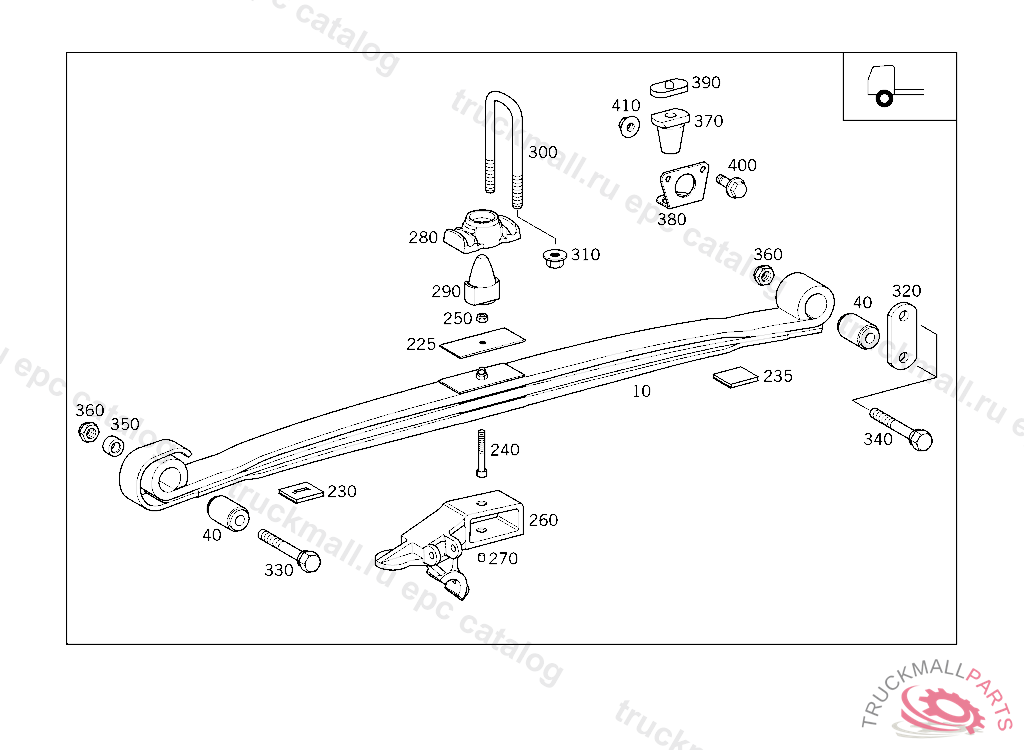

FRONT SPRING (PARABOLIC SPRING),NUMBER OF LEAVES: "2", FOR COMPONENT PARTS SEE SPARE PARTS LIST
10
FRONT SPRING (PARABOLIC SPRING),NUMBER OF LEAVES: "3"
40
RUBBER MOUNTING , Replaced By: A0003223285
40
RUBBER MOUNTING , Replaced By: A0003223285
40
RUBBER MOUNTING , Replaced By: A0003223285
40
40
RUBBER MOUNTING
225
SHIM BETWEEN THE SPRING LEAVES
230
230
230
235
235
235
240
240
SCREW (SPRING BOLT)
240
250
NUT STEERING SUPPORT TO FRAME
250
HEXAGON NUT BRACKET TO SIDE MEMBER M14 X 1,5
260
SHIM (BRACKET) ANTI-ROLL BAR AND SHOCK ABSROBER RIGHT, NO.7390I I I I II
260
260
260
260
260
260
260
SHIM (BRACKET) ANTI-ROLL BAR AND SHOCK ABSORBER,LEFT, NO.7390I I I I II
260
260
260
260
270
CENTERING BOLT FRONT SPRINGS TO FRONT AXLE 28 MM
270
PIN , Replaced By: A6573310074
270
PIN FRONT SPRINGS TO FRONT AXLE 28 MM, Replaced By: A9303230374
280
PLATE , Replaced By: A9413310426
280
280
PLATE FRONT SPRINGS TO FRONT AXLE, NO.7390I I I I II
280
SPRING CLAMP PLATE FRONT SPRINGS TO FRONT AXLE
280
PLATE FRONT SPRINGS TO FRONT AXLE 35MM, NO.7390 IIIII I
280
280
290
RUBBER BUFFER ON SPRING CLAMPING PLATE
290
RUBBER BUFFER ON SPRING CLAMPING PLATE
290
290
300
300
U-BOLT FRONT SPRINGS TO FRONT AXLE 225MM
300
U-BOLT FRONT SPRINGS TO FRONT AXLE 247MM
300
300
U-BOLT FRONT SPRINGS TO FRONT AXLE 205MM
300
U-BOLT FRONT SPRINGS TO FRONT AXLE 207MM
300
U-BOLT FRONT SPRINGS TO FRONT AXLE 227MM
310
HEXAGON NUT W COLLAR MOUNTING PARTS M20X1.5
320
SHACKLE FRONT SPRING,REAR
330
330
SCREW FRONT SPRING TO FRONT SPRING FRONT BRACKET M 24X180
340
SCREW FRONT SPRING TO FRONT-SPRING REAR BRACKET M 24X150
340
350
BUSHING FRONT SPRING TO FRONT SPRING FRONT BRACKET
360
NUT FRONT SPRING TO FRONT SPRING FRONT BRACKET M24X2
360
HEXAGON NUT AIR-SPRING-BELLOWS SUPPORT TO REAR AXLE M24X2
370
HELPER SPRING SPRING STOP
370
HELPER SPRING , Replaced By: A0003240908, +001A9413210040
380
BRACKET HELPER SPRING
380
BRACKET , Replaced By: A9413210040, +001A0003240908
390
SHIM , Replaced By: A9413210040, +001A0003240908
400
HEXAGON HEAD BOLT. SCREW BRACKET TO CONSOLE
400
HEXAGON HEAD BOLT. SCREW LOCK SPRING TO CROSS MEMBER M14X1.5X30
410
NUT BATTERY/APPARATUS SUPPORT TO FRAME SIDE MEMBER
