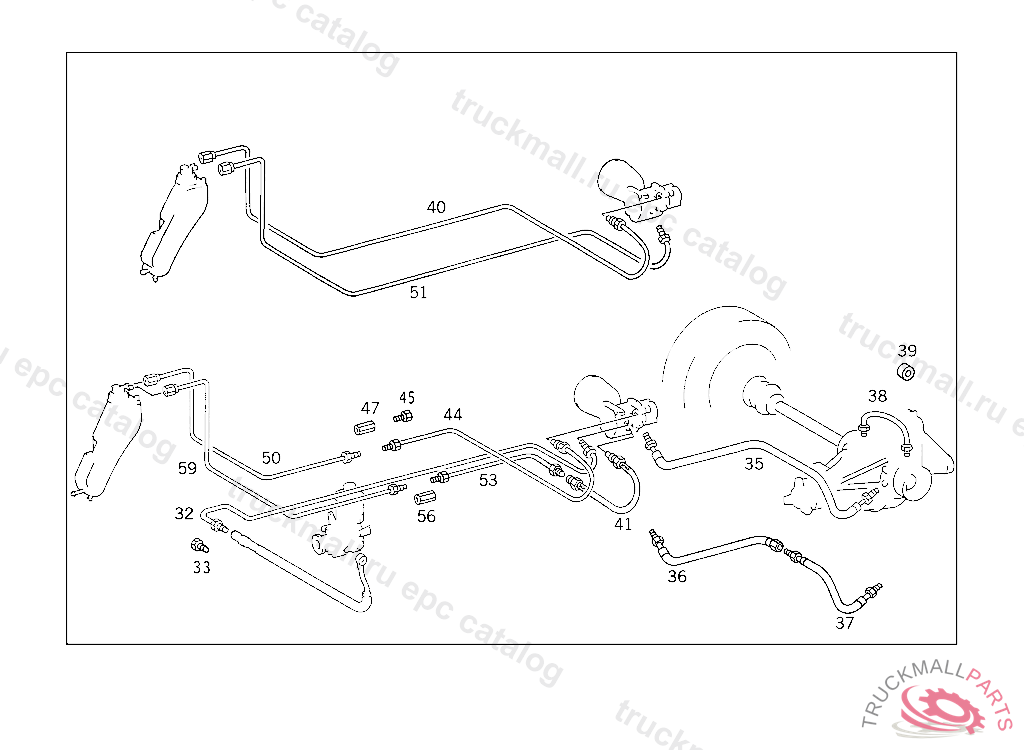

Поз.
Артикул
Описание
32
LINE FROM HIGH PRESSURE EXPANSION HOSE TO A S D CONTROL VALVE
35
LINE FROM CONTROL VALVE TO RING CYLINDER, A 423441 F 036027
36
LINE FROM CONTROL VALVE TO RING CYLINDER, A 423442 F 036028
36
LINE FROM CONTROL VALVE TO RING CYLINDER, A 423442 F 036028, Replaced By: A1243502380
37
LINE FROM CONTROL VALVE TO RING CYLINDER,F 228704
38
LINE FROM LEFT RING CYLINDER TO RIGHT RING CYLINDER 426 MM,F 117755
38
LINE FROM LEFT RING CYLINDER TO RIGHT RING CYLINDER 275 MM,F 117756
40
LINE CONNECTION "N", FROM CONTROL VALVE TO OIL RESERVOIR, A 679997 EXCEPT FOR A 678327 ALSO INSTALLED ON A 680005,A 680013,A 680034,A 680048,A 680053,A 680054,A 680075,A 680087,A 680090,A 680102,A 680121,A 680127,A 680129,A 680130, A 680132,A 680170,A 680171,A 680179,A 680195,A 680202,A 680206,A 680217,A 680227,A 680230,A 680241,A 680254,A 680269,A 680284, A 680291,A 680293,A 680298,A 680305,A 680317,A 680320,A 680332,A 680333,A 680348,A 680359,A 680382,A 680433,A 680447,A 680477, A 680487,A 680492,A 680520,A 680540,A 680548,A 680562,A 680573,A 680574,A 680614,A 680641,A 680657,A 680660,A 680910,A 680911, A 680934,A 680962,A 681008,A 681021,A 681274,A 681327,A 681369,A 681403,A 681531,A 681564,A 682040,A 682275,A 682461,A 682468, A 682690,A 684356,A 685419,A 685589,A 686740,A 690533. F 065441
41
LINE , Replaced By: A1243501980
41
LINE CONNECTION "T", FROM CONTROL VALVE TO OIL RESERVOIR
44
LINE FROM PUMP TO SELF-LEVELLING UNIT, TO BE ADAPTED DURING ASSEMBLY
44
LINE , Replaced By: A1243205172, +001A1269970034
45
SCREW. RETAINING SCREW
47
COUPLING PIECE
50
LINE (RETURN LINE) FROM COUPLING PIECE TO OIL RESERVOIR, A 679998 ALSO INSTALLED ON A 678327 EXCEPT FOR A 680005,A 680013,A 680034,A 680048,A 680053,A 680054,A 680075,A 680087,A 680090,A 680102,A 680121,A 680127,A 680129,A 680130, A 680132,A 680170,A 680171,A 680179,A 680195,A 680202,A 680206,A 680217,A 680227,A 680230,A 680241,A 680254,A 680269,A 680284, A 680291,A 680293,A 680298,A 680305,A 680317,A 680320,A 680332,A 680333,A 680348,A 680359,A 680382,A 680433,A 680447,A 680477, A 680487,A 680492,A 680520,A 680540,A 680548,A 680562,A 680573,A 680574,A 680614,A 680641,A 680657,A 680660,A 680910,A 680911, A 680934,A 680962,A 681008,A 681021,A 681274,A 681327,A 681369,A 681403,A 681531,A 681564,A 682040,A 682275,A 682461,A 682468, A 682690,A 684356,A 685419,A 685589,A 686740,A 690533. F 065442
51
LINE
51
LINE , Replaced By: A1243207172
53
LINE CONNECTION "T", FROM CONTROL VALVE TO COUPLING PIECE, A 679998 ALSO INSTALLED ON A 678327 EXCEPT FOR A 680005,A 680013,A 680034,A 680048,A 680053,A 680054,A 680075,A 680087,A 680090,A 680102,A 680121,A 680127,A 680129,A 680130, A 680132,A 680170,A 680171,A 680179,A 680195,A 680202,A 680206,A 680217,A 680227,A 680230,A 680241,A 680254,A 680269,A 680284, A 680291,A 680293,A 680298,A 680305,A 680317,A 680320,A 680332,A 680333,A 680348,A 680359,A 680382,A 680433,A 680447,A 680477, A 680487,A 680492,A 680520,A 680540,A 680548,A 680562,A 680573,A 680574,A 680614,A 680641,A 680657,A 680660,A 680910,A 680911, A 680934,A 680962,A 681008,A 681021,A 681274,A 681327,A 681369,A 681403,A 681531,A 681564,A 682040,A 682275,A 682461,A 682468, A 682690,A 684356,A 685419,A 685589,A 686740,A 690533. F 065442
56
COUPLING PIECE , A 679998 ALSO INSTALLED ON A 678327 EXCEPT FOR A 680005,A 680013,A 680034,A 680048,A 680053,A 680054,A 680075,A 680087,A 680090,A 680102,A 680121,A 680127,A 680129,A 680130, A 680132,A 680170,A 680171,A 680179,A 680195,A 680202,A 680206,A 680217,A 680227,A 680230,A 680241,A 680254,A 680269,A 680284, A 680291,A 680293,A 680298,A 680305,A 680317,A 680320,A 680332,A 680333,A 680348,A 680359,A 680382,A 680433,A 680447,A 680477, A 680487,A 680492,A 680520,A 680540,A 680548,A 680562,A 680573,A 680574,A 680614,A 680641,A 680657,A 680660,A 680910,A 680911, A 680934,A 680962,A 681008,A 681021,A 681274,A 681327,A 681369,A 681403,A 681531,A 681564,A 682040,A 682275,A 682461,A 682468, A 682690,A 684356,A 685419,A 685589,A 686740,A 690533. F 065442
59
LINE FROM PUMP TO SELF-LEVELLING UNIT, TO BE ADAPTED DURING ASSEMBLY
