Поз.
Артикул
Описание

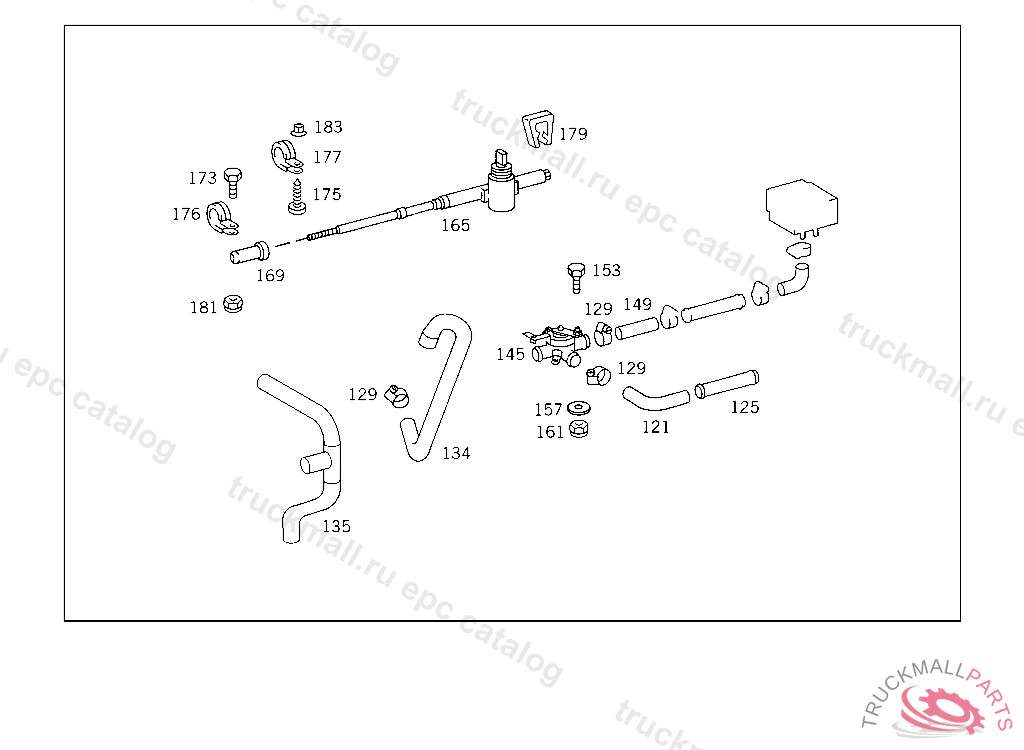

121
HOSE RETURN LINE TO T-FITTING
125
PIPE , Replaced By: A0004291501
125
LINE FROM AIR COMPRESSOR TO PRESSURE REGULATOR 18X1,5 MM, LENGTH AVAILABLE: 3000 MM
129
CLAMP , Replaced By: N000000000667
129
CLAMP HOSE TO SUCTION LINE AND TO OIL TANK 20-32X13 MM
134
HOSE HEAT EXCHANGER II FEED
135
HOSE HEAT EXCHANGER II RETURN
145
VALVE CONTROL VALVE, 958315 N 000001 P 000001
149
SPACER TUBE SWITCH TO ENGINE
149
SPACER TUBE , Replaced By: A1369913740
153
SCREW LEVER TO SHAFT
157
WASHER , Replaced By: N009021005205
157
WASHER CABLE CONNECTOR TO BRACKET AND TO FRAME,RESP.
161
NUT TWO-WAY VALVE TO BRACKET
165
CABLE PULL CONTROL VALVE ACTUATION, 958315 N 000001 P 000001
169
GROMMET WIRE CABLE TO MOUNTING CLAMP, FROM IDENT NO. 4 155517 ALSO INSTALLED ON:500001-599999
173
SCREW COVER PLATE TO COVER PLATE M 6 X 12
173
SCREW PUMP TO BRACKET
175
SHEET METAL SCREW OIL LINE MOUNTING
176
CLAMP , Replaced By: N000000001045
176
CLAMP CABLE HARNESS MOUNTING
177
CLAMP SENSOR CABLE TO BRACKET
179
RUBBER SECTION AT LEFT SIDE MEMBER 85 MM
181
NUT HEATING PIPE TO BRACKET
183
CLAMPING NUT BRACKET TO FRAME
999
HOSE FROM PIPE TO HEATER UNIT
