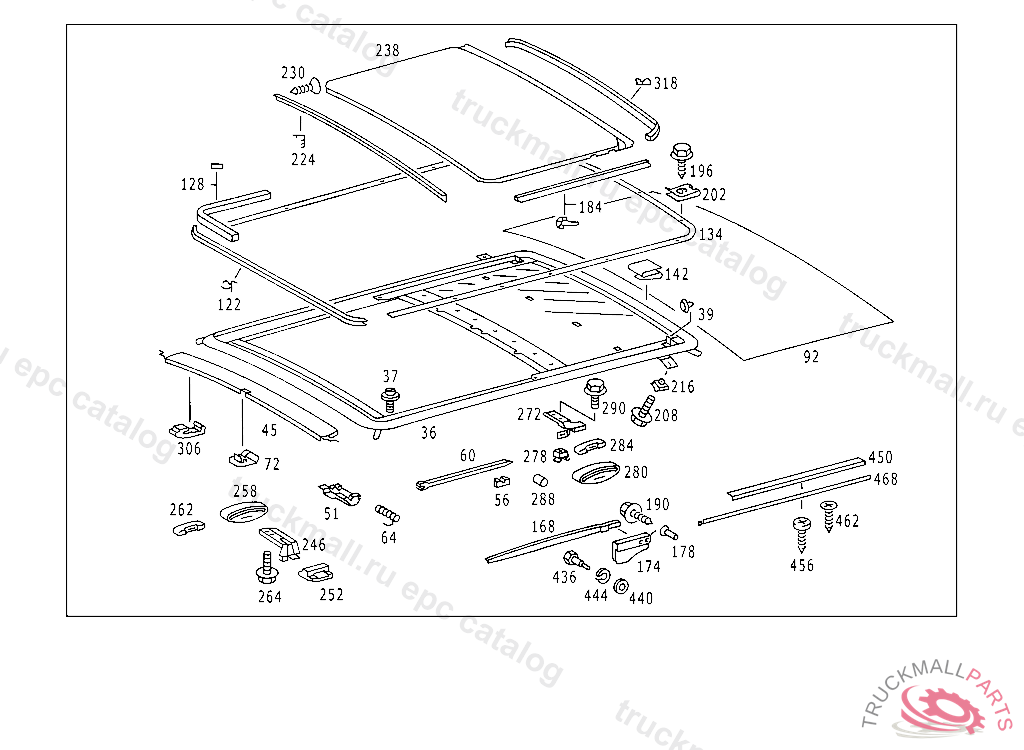

Поз.
Артикул
Описание
36
FRAME WITH DRAFT DEFLECTOR
36
FRAME WITH DRAFT DEFLECTOR
36
FRAME WITH DRAFT DEFLECTOR
37
SCREW BOTTOM FRAME
39
RUBBER BUFFER
45
DRAFT DEFLECTOR ,A 232400
51
MOUNTING FRONT RIGHT
51
MOUNTING FRONT LEFT
56
MOUNTING LATERAL
60
LEVER RIGHT
60
LEVER LEFT
64
SPRING LEFT
64
SPRING RIGHT
72
MOUNTING CENTRAL
92
FOAM PLASTICS FRONT ROOF RAIL
122
SEAL BOTTOM FRAME,FRONT
128
PAD
134
SEAL BETWEEN TOP AND BOTTOM FRAMES
142
CLIP
168
RAIL RIGHT
168
RAIL LEFT
174
STOP LEFT
174
STOP RIGHT
178
RIVET
184
SEAL480 MM
190
SCREW
196
SHEET METAL SCREW
202
LOCK FRAME TO REINFORCEMENT FRAME
208
HEXAGON HEAD BOLT
216
NUT RETAINER BOTTOM FRAME TO REAR LEFT AND RIGHT ROOF RAILS
216
NUT RETAINER , Replaced By: A3229900091
224
COVER RAIL
224
COVER RAIL BOTTOM FRAME,FRONT, 023 049084 033 024844 123 034291 130 044426
224
COVER RAIL BOTTOM FRAME,FRONT
230
SHEET METAL SCREW
238
SLIDING ROOF PLATE
246
ANGLE FRONT RIGHT
246
ANGLE LEFT FRONT, 033 114993 123 413672 130 310025 133 035426 223 172220
246
ANGLE LEFT FRONT, 033 114994 123 413673 130 310026 133 035427 223 172221
246
ANGLE RIGHT FRONT, 033 114993 123 413672 130 310025 133 035426 223 172220
252
SLIDING JAW LEFT
252
SLIDING JAW RIGHT
258
SLIDING JAW , 023 143560 033 058449 123 130866 130 149678
262
SLIDING JAW
264
SCREW
272
ANGLE REAR LEFT
272
ANGLE REAR RIGHT
278
NUT RETAINER
280
SLIDING JAW , 023 143560 033 058449 123 130866 130 149678
284
SLIDING JAW
288
GROMMET
290
SCREW
306
SLIDE DRAFT DEFLECTOR
318
SEAL
436
SCREW
440
WASHER BOOT TO CAB FLOOR
444
LOCK WASHER T-FITTING TO BRACKET
450
SLIDING RAIL RIGHT
450
SLIDING RAIL LEFT
456
SCREW
462
SCREW
468
SLIDING RAIL RIGHT
468
SLIDING RAIL LEFT
999
LOCK. PIN LOCK ORNAMENTAL COVER TO BUMPER
999
STAY
