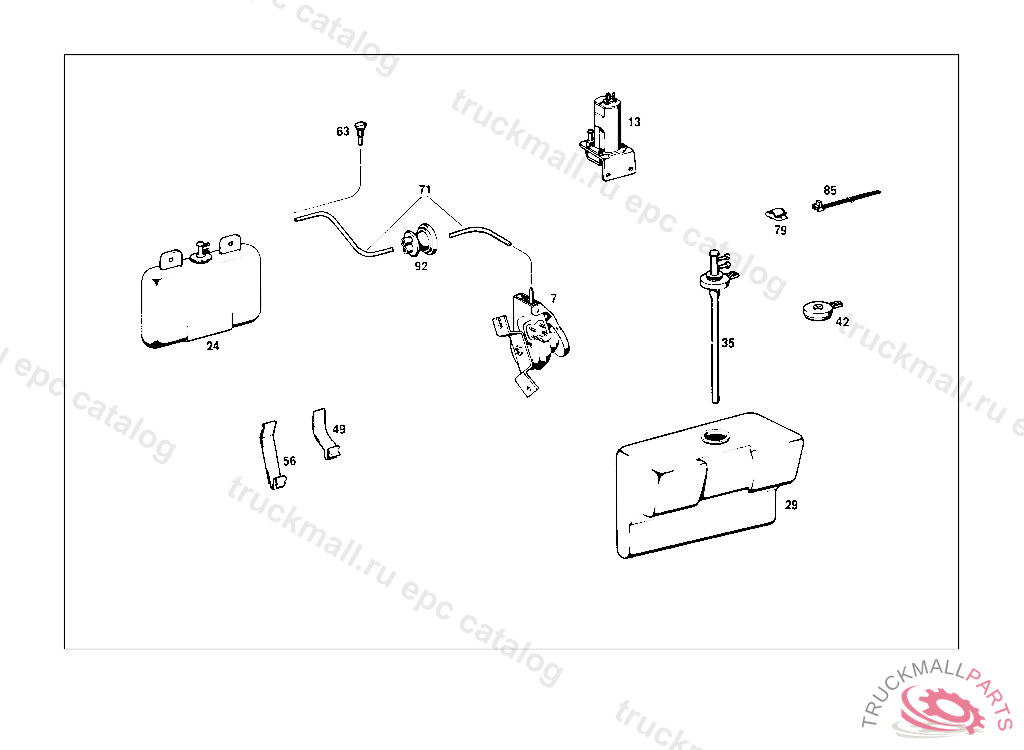

Поз.
Артикул
Описание
7
PUMP
13
PUMP
24
RESERVOIR , Replaced By: A0008692520, +001A1158600169
35
FASTENER , UP TO CHASSIS: 005,007,008,015,017 141103 011 019715
42
FILLER CAP
49
HOLDER LIQUID TANK
56
HOLDER , 012 FROM CHASSIS 072726, 016 FROM CHASSIS 009668, 018 FROM CHASSIS 008221, 019 FROM CHASSIS 007640
63
NOZZLE , 007208
71
HOSE RESERVOIR DE-AERATION,4 238841 ORDER BY THE METER
79
CLIP
999
RESERVOIR , 012,10/50,20/60 FROM CHASSIS 042058, SEE FOOTNOTE 13, 12/52,22/62 FROM CHASSIS 041900, SEE FOOTNOTE 13, 012 FROM CHASSIS 03992 5, SEE FOOTNOTE 14 014,10/50,20/60 FROM CHASSIS 033580, SEE FOOTNOTE 13, 12/52,22/62 FROM CHASSIS 033439, SEE FOOTNOTE 13, 014 FROM CHASSIS 03194 9, SEE FOOTNOTE 14, 015 FROM CHASSIS 002606, Replaced By: A0008692520, +001A0008691119
999
RESERVOIR
999
PUMP , Replaced By: A1088690121
999
WASHER , Replaced By: N000433005304
999
WASHER BOOT TO CAB FLOOR
999
NUT , Replaced By: N304035008001
999
TOOTHED WASHER MASKED TAIL/STOP/BLINKER LAMP TO TAIL LAMP BRACKET
999
SHEET METAL SCREW BRACKET TO CAB FLOOR
999
SHEET METAL SCREW6.3X16
999
NUT
