Поз.
Артикул
Описание

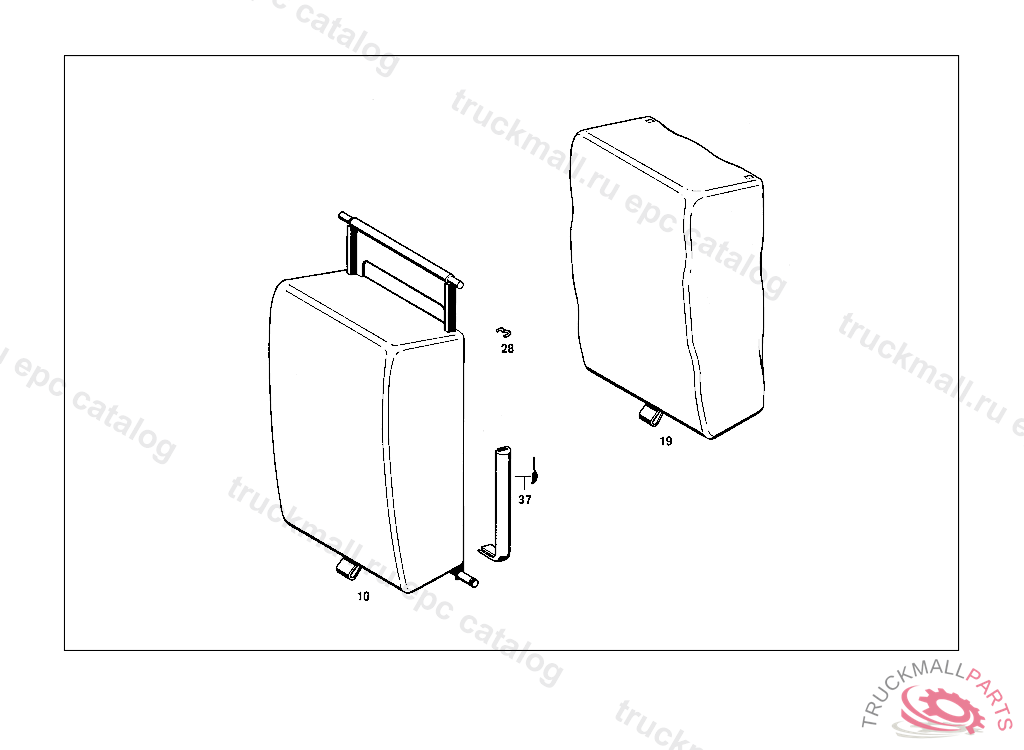

10
FOLDING ARMREST REAR BACKREST, STATE COLOR NUMBER WHEN ORDERING 024/025 FROM CHASSIS 003786
19
COVER , WHEN ORDERING STATE COLOR NUMBER
28
CLIP COVER TO PAD
37
EDGE GUARD SECTION 895 MM ORDER BY THE METER
999
SHEET METAL SCREW , 012 FROM CHASSIS 042058, 014 FROM CHASSIS 033580, 015 FROM CHASSIS 002606
999
SHEET METAL SCREW FOOTREST TO TOEBOARD, 024,025 FROM CHASSIS 002864 ALSO INSTALLED ON, SEE FOOTNOTE 7
999
LOCK PLATE
999
WASHER BRACKET TO HEAT SHIELD
999
SPRING WASHER LICENSE PLATE TO BRACKET
999
FOLDING ARMREST COMPLETE, BUT LESS COVER, 010 UP TO CHASSIS 130557, 110 UP TO CHASSIS 225647 FABRIC AND LEATHER
999
FOLDING ARMREST CENTRAL
999
FOLDING ARMREST , Replaced By: A1119707130, +002N006799009002
999
FOOTREST , 010 FROM CHASSIS 178572, 011 FROM CHASSIS 026828, 110 FROM CHASSIS 329968
999
FRAME , 016 FROM CHASSIS 027623, ALSO INSTALLED ON, SEE FOOTNOTE 13, 018 FROM CHASSIS 028985, ALSO INSTALLED ON, SEE FOOTNOTE 14, 019 FROM CHASSIS 029326
999
CARPET
