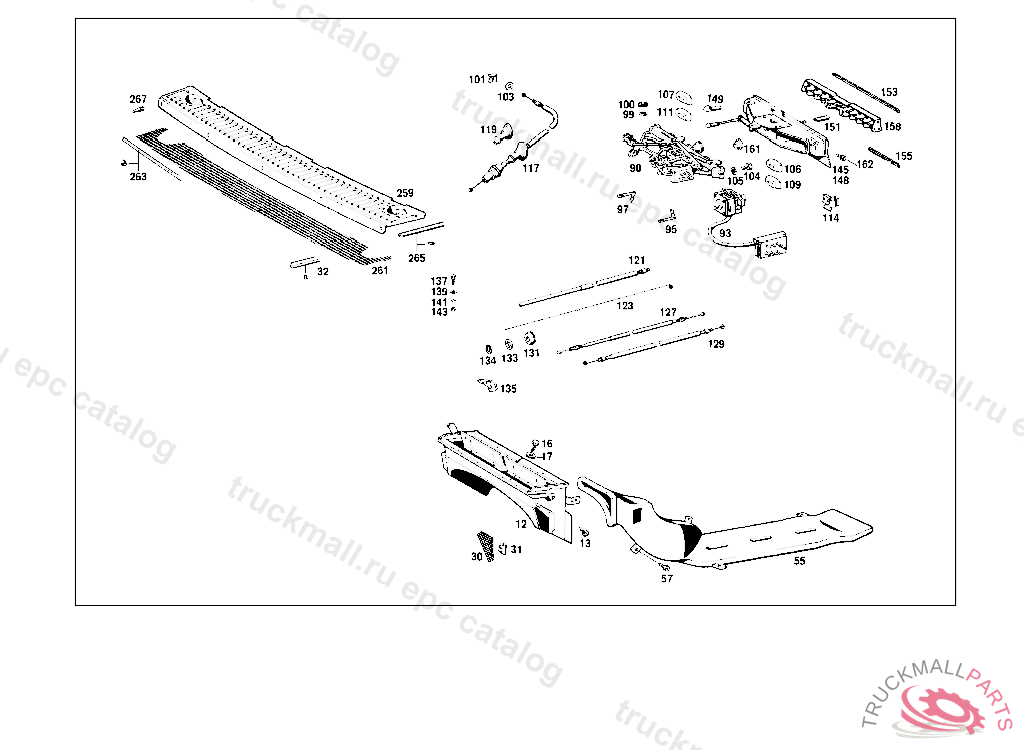

Поз.
Артикул
Описание
12
INTERMEDIATE PIECE (FRONT AND REAR SPACE HEATING), FROM CHASSIS: 010 026147 110 057164
13
SHEET METAL SCREW BRACKET TO FLOOR PLATE
13
SHEET METAL SCREW BRACKET TO CAB 4,2X13
13
SHEET METAL SCREW BRACKET TO FLOOR PLATE, Replaced By: N000000000460
16
SHEET METAL SCREW FENDER TO BODY
17
WASHER COMPRESSED AIR LINE TO BRACKET
17
WASHER , Replaced By: N009021006208
32
RUBBER SEAL 125 MM, ORDER BY THE METER
55
DUCT LEFT
57
SHEET METAL SCREW CABLE CONNECTOR TO RIGHT WHEEL ARCH PANEL
90
OPERATING UNIT
93
SWITCH
95
LEVER , Replaced By: A1155860083
97
LEVER , Replaced By: A1155860183
99
WASHER
100
LOCK PLATE CONSOLE TO REAR PANELLING,TOP
100
DUO CLIP , Replaced By: N912010005001
101
CLIP
103
LOCK
104
SCREW COVER PLATE TO COVER PLATE M 6 X 12
104
SCREW , Replaced By: N304017006018
105
TOOTHED WASHER MASKED STOP LAMP
106
OPERATING HANDLE
107
OPERATING HANDLE
109
OPERATING HANDLE LEFT
111
OPERATING HANDLE RIGHT
117
WIRE CABLE LEFT, FROM CHASSIS: 000,002,010 013352 EXCEPT FOR: 013355,013825 015 010341 EXCEPT FOR: 010347,010405,010406 100,102,103,110,112 029021 EXCEPT FOR: 029562 115 013141
119
GROMMET
127
WIRE CABLE280 MM, FROM CHASSIS: 000,002,010 025770 015 023375 100,102,103,110,112 055971 115 025853 UP TO CHASSIS: 000,002,010 064257 015 070613 100,102,103,110,112 161400 115 076797 FROM CHASSIS: 000,002,010 064258 015 070614 100,102,103,110,112 161401 115 076798
129
WIRE CABLE495 MM, FROM CHASSIS: 000,002,010 025770 015 023375 100,102,103,110,112 055971 115 025853
131
GROMMET , FROM CHASSIS: 000,002,010 013352 EXCEPT FOR: 013355,013825 015 010341 EXCEPT FOR: 010347,010405,010406 100,102,103,110,112 029021 EXCEPT FOR: 029562 115 013141
133
WASHER
134
LOCK RINGTO 000 553 37 01,000 553 39 01,
135
CLIP , ALSO APPLICABLE TO VERSION 55705/11-/62
148
ESCUTCHEON
149
BALL SOCKET
151
GROMMET3.0 MM
153
GARNISH MOULDING TOP
155
GARNISH MOULDING CENTRAL
158
LOUVRE INSTRUMENT PANEL,CENTER
161
ESCUTCHEON
162
SHEET METAL SCREW
261
SCREEN
263
RUBBER SEAL , ORDER BY THE METER
265
RUBBER SEAL , ORDER BY THE METER
267
RIVET
267
RIVET , Replaced By: A0009902292
999
LEVER LEFT, MAKE REITER & SCHEFENACKER
999
LEVER RIGHT,MAKE R. & S.
999
RIVET , Replaced By: A0009902292
999
HOSE MEDIUM GREEN, ORDER BY THE METER
999
HOSE , Replaced By: A0009976552
999
HOSE FROM LIQUID TANK TO EXPANSION VALVE 430 MM, LESS HOSE CONNECTIONS
999
HOSE FROM VACUUM SWITCH TO CIRCULATING-AIRFLAP-ELEMENT Y-SHAPE DISTRIBUTOR 600 MM
999
HOSE FROM VACUUM SWITCH TO CIRCULATING-AIRFLAP-ELEMENT Y-SHAPE DISTRIBUTOR 600 MM
999
HOSE GREY/LIGHT BLUE, FROM CHASSIS: 073 103729, FEDERAL, ALSO INSTALLED ON: 102225,103388,103528,103535,103585,103608,103707,103715,103717,103722. 103836, CALIFORNIA, ALSO INSTALLED ON: 103522,103523,103542,103557,103582,103727,103741,103742,103758-103760,103778,103786,103791,103799, 103800,103803,103809,103810-103815,103819,103820,103822,103824,103830-103834. FROM CHASSIS: 023 100867
999
CONNECTOR 90 DEGREES,I.D.:6 3/4"
999
REPAIR KIT , Replaced By: A1238300133
999
REPAIR KIT , Replaced By: A1238300233
999
PLUG , EXHAUST STOCK OF OLD PART NUMBERS FIRST UP TO CHASSIS: 005,017 028049 015 238752 100,102,103,110,112 431300 105,107,108,117,119 060601 114 000208 115 248583, Replaced By: A1158211951
999
REPAIR KIT LEFT,MAKE KAMMERER
999
REPAIR KIT RIGHT,MAKE KAMMERER
999
DEFROSTER NOZZLE RIGHT
999
NOZZLE LEFT, FROM CHASSIS: 002562, ALSO INSTALLED ON: 002452,002468,002474,002489,002522,002537,002540,002541,002545,002548-002552,002554,002556-002559, 002561-002563.
999
WIRE CABLE RIGHT, FROM CHASSIS: 000,002,010 013352 EXCEPT FOR: 013355,013825 015 010341 EXCEPT FOR: 010347,010405,010406 100,102,103,110,112 029021 EXCEPT FOR: 029562 115 013141
999
NOZZLE RIGHT, FROM CHASSIS: 010 034089, ALSO INSTALLED ON: 033673,033706,033709,033716,033736,033765,033914,033922,033926,033930,033931,033934,033936,033938, 033939,033941-033951,033953,033955,033956,033959,033960,033962,033964,033966,033967,033969-033998, 034000-034010,034012-034022,034024-034087.
999
CONDENSER
999
DEFROSTER NOZZLE , Replaced By: A1158300219
999
PIPE LINE FROM CONDENSER TO COMPRESSOR FORD, UP TO CHASSIS: 115.114 010601
999
DUCT RIGHT
999
HOSE BETWEEN WATER FAUCET AND HEATER CASE
999
BLOWER , Replaced By: A1158350407
999
CONDENSER , Replaced By: A1158300270, +001A1156200685
999
BLOWER , Replaced By: A1158350207
999
GRILLE
999
REPAIR KIT , Replaced By: A1158300033
999
REPAIR KIT , Replaced By: A1158300133
