Поз.
Артикул
Описание

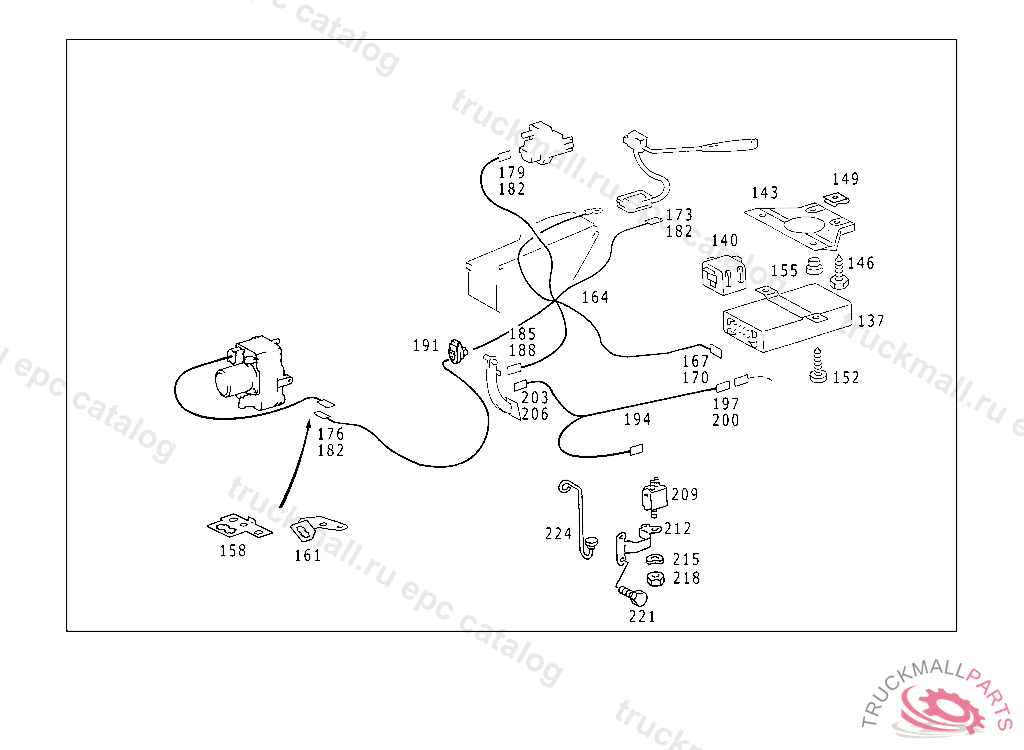

137
CONTROL UNIT TEMPOMAT (CRUISE CONTROL)
137
CONTROL UNITTEMPOMAT,126. A 310459
140
CODING PART TEMPOMAT (CRUISE CONTROL) CONTROL UNIT
143
BRACKET CONTROL UNIT
143
BRACKET CONTROL UNIT
146
SHEET METAL SCREW BRACKET TO CAB FLOOR
149
LOCK PROTECTIVE GRILLE
149
LOCK CONDENSER TO INTERIOR PLATE,LEFT OUTSIDE
152
SHEET METAL SCREW FUEL STRAINER SCREEN TO FUEL TANK
155
GROMMET CONTROL UNIT TO BRACKET
158
BRACKET TEMPOMAT(CRUISE CONTROL) PLUG-CONNECT.
161
BRACKET FINAL CONTROL ELEMENT PLUG CONNECTION TO DIAGNOSIS BOX
164
CABLE HARNESS TEMPOMAT (CRUISE CONTROL),F 143764
164
CABLE HARNESS TEMPOMAT (CRUISE CONTROL),F 143764
167
COVERTO 019 545 29 28
167
PIN BUSHING HOUSING CONTROL UNIT, 14-POLE
170
ROUND PIN BUSHING2.5 MM2
173
COVER
173
PIN BUSHING HOUSING 4-POLE
176
PIN BUSHING HOUSING SEAT HEATER RELAY, 8-POLE
176
COVERTO 006 545 81 28
179
PIN BUSHING HOUSING UNIPOLAR, HEAT SENSOR CONNECTION
182
ROUND PIN BUSHING WITH DETENT AND WITH CATCH FOR HOUSING 2.5 MM2
185
PLUG ADAPTER. PLUG HEATING WATER VALVE, 4-POLE
185
PLUG ADAPTERTO 014 545 04 28
188
PIN BUSHINGTO 000 821 19 26
191
GROMMET , ONLY WITH AIR CONDITIONING AUTOMATICS
194
CABLE HARNESS FROM CLUTCH SWITCH TO CABLE CONNECTOR,F 143764
194
CABLE HARNESS FROM STOP LIGHT SWITCH TO PLUG CONNECTION
194
CABLE HARNESS FROM CLUTCH SWITCH TO CABLE CONNECTOR,F 143764
197
PIN BUSHING HOUSING BIPOLAR
200
ROUND PIN BUSHING WITH DETENT AND WITH CATCH FOR HOUSING 2.5 MM2
203
PLUG ADAPTERTO 014 545 04 28
203
PLUG ADAPTER. PLUG HEATING WATER VALVE, 4-POLE
206
PIN BUSHINGTO 000 821 19 26
209
SWITCH CLUTCH SWITCH,TEMPOMAT (CRUISE CONTROL)
212
BRACKET CLUTCH SWITCH,TEMPOMAT (CRUISE CONTROL)
215
SPRING WASHER PROTECTIVE PLATE TO EXHAUST MUFFLER
215
SPRING WASHER , Replaced By: N000137008212
218
NUT PRIMARY PUMP TO CONVERTER HOUSING
221
SCREW
224
ROD CLUTCH SWITCH,TEMPOMAT (CRUISE CONTROL)
