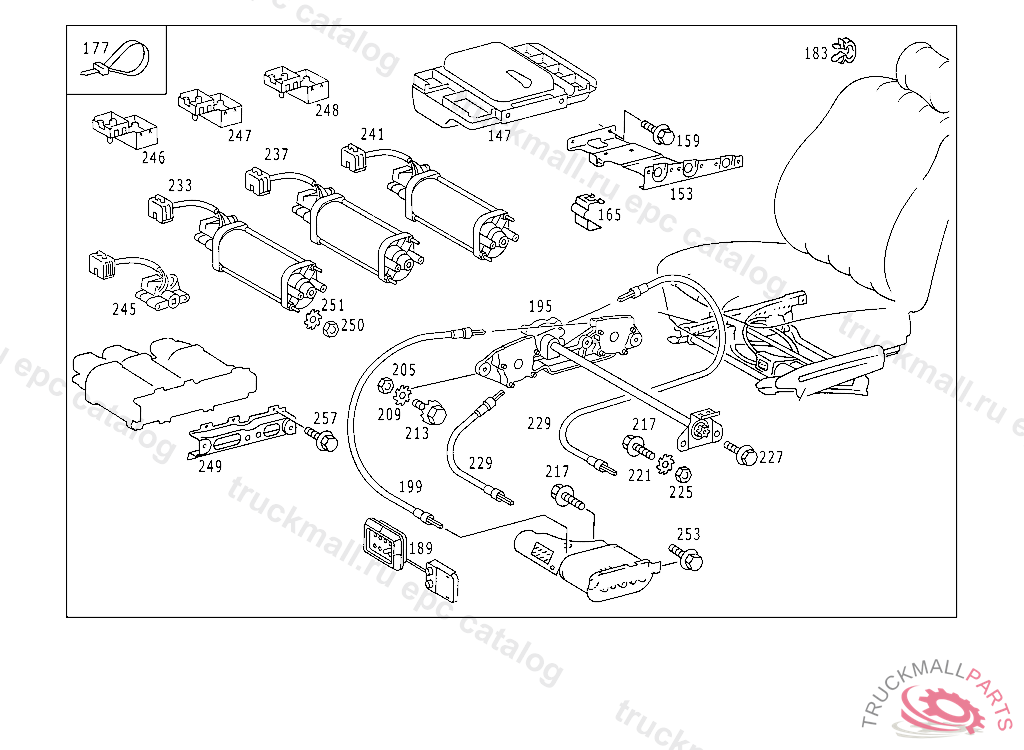

Поз.
Артикул
Описание
147
CONTROL UNIT SEAT ADJUSTER
147
CONTROL UNIT SEAT ADJUSTER
153
BRACKET CONTROL UNIT TO SEAT HEIGHT ADJUSTMENT
159
SCREW MOTOR TO BRACKET,B 090000 ELECTRIC SEAT ADJUSTER WITH MEMORY
165
CLIP PLUG MOUNTING
177
LOOM TIE TO MOUNT PLASTIC PIPING
177
LOOM TIE , UP TO CHASSIS: 108.012 UNTIL PRODUCTION STOP 108.016 042417 108.018,019 043374 109.016 002452
183
CLAMP
189
PIN BUSHING HOUSING BACKREST ADJUSTMENT MOTOR, ELECTRIC SEAT ADJUSTER WITH MEMORY
195
GEARING SEAT HEIGHT ADJUSTMENT, WITH PROGRAMMING,A 502268
195
GEARING SEAT HEIGHT ADJUSTMENT, WITH PROGRAMMING,A 502269
199
SHAFT SEAT HEIGHT ADJUSTMENT, WITH PROGRAMMING
205
NUT
209
SERRATED WASHER
213
SCREW TUNNEL,FRONT FLOOR M8X20
217
SCREW GEARING TO SEAT HEIGHT ADJUSTMENT
221
SERRATED WASHER GEARING TO SEAT HEIGHT ADJUSTMENT
225
NUT BALL PIVOT TO LEVER
227
SCREW
229
SHAFT SEAT HEIGHT ADJUSTMENT, WITH PROGRAMMING
233
ELECTRIC MOTOR FORE-AND-AFT ADJUSTMENT
233
ELECTRIC MOTOR FORE-AND-AFT ADJUSTMENT, ELECTRIC SEAT ADJUSTER WITH MEMORYA 297972
237
ELECTRIC MOTOR SEAT HEIGHT ADJUSTMENT,FRONT, ELECTRIC SEAT ADJUSTER WITH MEMORY
241
ELECTRIC MOTOR SEAT HEIGHT ADJUSTMENT,REAR
245
RESISTOR POTENTIOMETER, ELECTRIC SEAT ADJUSTER WITH MEMORY
246
PIN BUSHING HOUSING FORE-AND-AFT ADJUSTMENT
247
PIN BUSHING HOUSING SEAT HEIGHT ADJUSTMENT,FRONT
248
PIN BUSHING HOUSING SEAT HEIGHT ADJUSTMENT,REAR
249
BRACKET MOTOR TO SEAT HEIGHT ADJUSTMENT
250
NUT MOTOR TO BRACKET
251
SERRATED WASHER MOTOR TO BRACKET
253
SCREW
257
SCREW ELECTRIC WINDOW REGULATOR MOTOR
