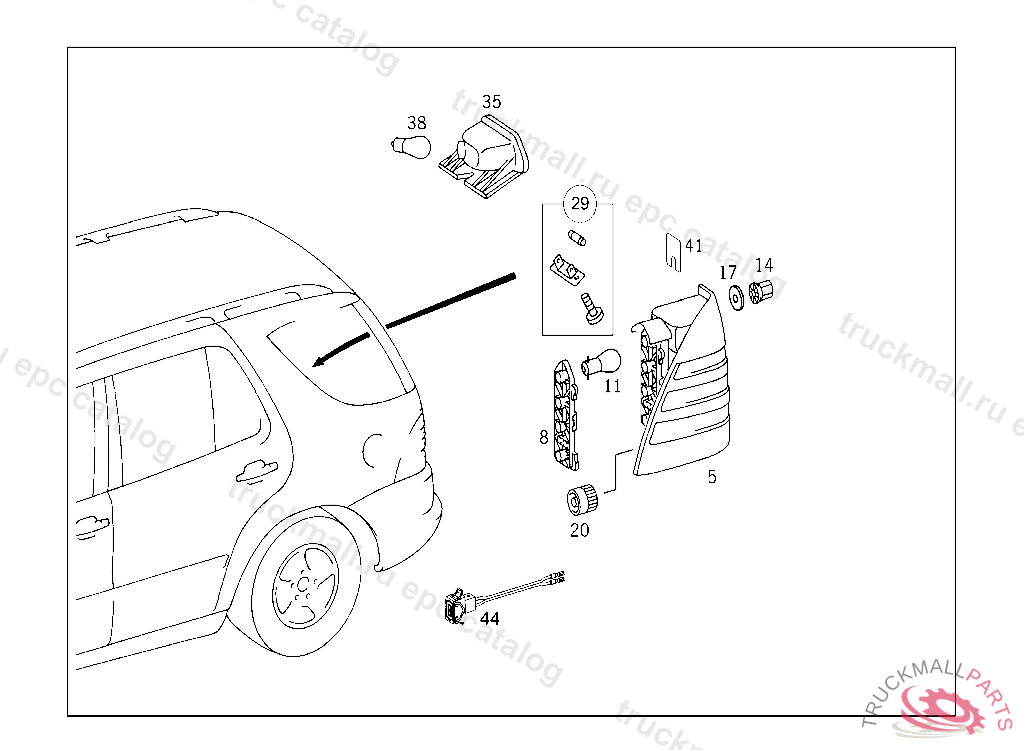

ML 430 - 163.172 FROM 09/2000 - 82 ELECTRICAL SYSTEM

5

TAIL LAMP LEFT, TO BE ADAPTED DURING ASSEMBLY A 289559 X 754619 EXCEPT CODE 802 ALSO INSTALLED IN VEHICLE FROM A 289560, X 754620 WITH CODE 801

5

TAIL LAMP LEFT, TO BE ADAPTED DURING ASSEMBLY A 289559 X 754619 EXCEPT CODE 802 ALSO INSTALLED IN VEHICLE FROM A 289560, X 754620 WITH CODE 801

5

TAIL LAMP RIGHT, TO BE ADAPTED DURING ASSEMBLY A 289559 X 754619 EXCEPT CODE 802 ALSO INSTALLED IN VEHICLE FROM A 289560, X 754620 WITH CODE 801

5

TAIL LAMP RIGHT, TO BE ADAPTED DURING ASSEMBLY A 289559 X 754619 EXCEPT CODE 802 ALSO INSTALLED IN VEHICLE FROM A 289560, X 754620 WITH CODE 801

8

LAMP SUPPORT

11

BULB STOP LIGHT, UP TO END OF MODEL YEAR 94

11

BULB12 V

11

BULB ORANGE, TO BLINKER LIGHT USED WITH BICHROMATIC TAIL LAMP RL 12V/21W, C 020765 ALSO INSTALLED ON B 891779 - C 020763 J 016477 ALSO INSTALLED ON J 011134 - J 016475 WITH CODE 859 RSA FROM IDENT-NO.: C 013142 / J 016700

14

NUT TAIL LAMP TO BODY, A 289559 X 754619 EXCEPT CODE 802 ALSO INSTALLED IN VEHICLE FROM A 289560, X 754620 WITH CODE 801

17

WASHER COMPRESSED AIR LINE TO BRACKET

20

BUSHING LAMP SUPPORT HOUSING TO TAIL LAMP

35

EXTERIOR LAMP ADDITIONAL STOP LIGHT

38

BULB12 V

41

PAD TAIL LAMP TO BODY

44

ELECTRIC CABLE SIDE MARKER LAMP, A 289560 X 754620 EXCEPT CODE 801 ALSO INSTALLED IN VEHICLE TO A 289559, X 754619 WITH CODE 802
