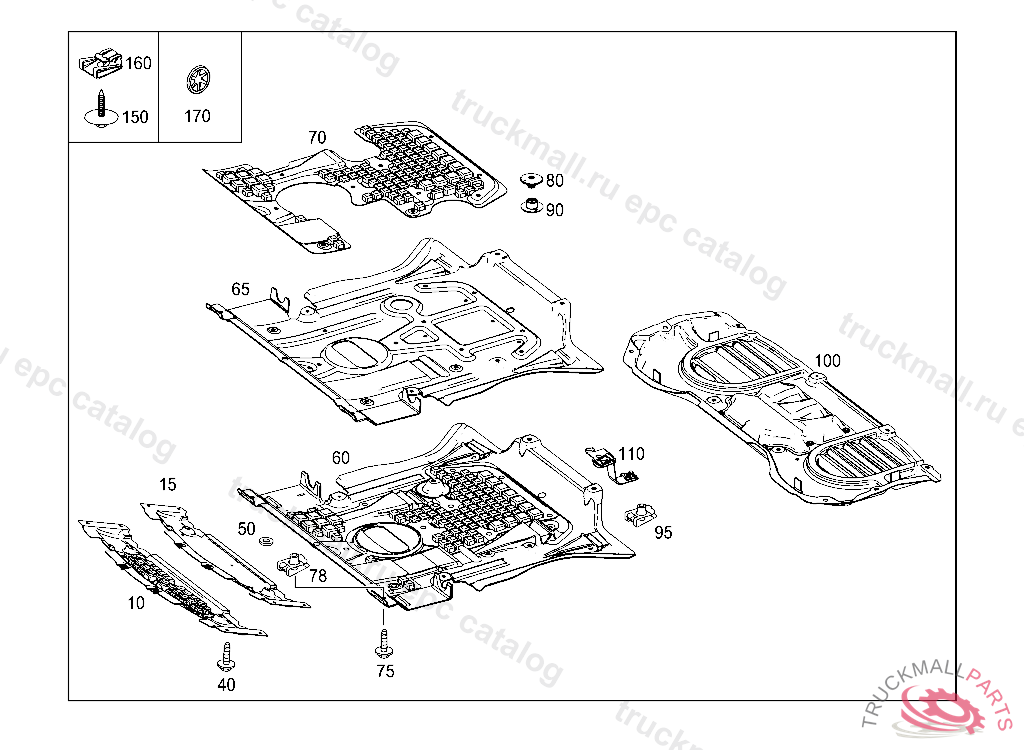

Поз.
Артикул
Описание
10
COVER F ENGINE COMP. BM FRONT
10
UNDERBODY PROTECTION FRONT
10
ENCAPSULATION FRONT
15
COVER F ENGINE COMP. BM FRONT
40
SCREW-AND-WASHER ASSEMBLY FASTENING, CENTER PANELING M8X30, A 09406820120609
50
WASHER BRACKET TO CAB REAR PANEL
60
ENCAPSULATION CENTRAL
60
ENCAPSULATION CENTRAL
65
UNDERBODY PROTECTION
70
DAMPING MAT UNDERSHIELDS
75
SCREW-AND-WASHER ASSEMBLY FASTENING, CENTER PANELING M8X30, A 09406820120609
78
SPRING-THREAD NUT PROTECTIVE PLATE
80
FASTENER BUTTON UPPER PART
90
FASTENER BUTTON LOWER PART
95
SPRING-THREAD NUT PROTECTIVE PLATE
100
ENCAPSULATION REAR, A 27212220130710804
100
ENCAPSULATION REAR, M 20140228 L 20140228 A 13822220120928803
110
BRACKET LEFT
110
BRACKET RIGHT
150
TAPPING SCREW WITH WASHER PANELLING TO BUMPER 4,8X24, L 00000120120531 M 00000120120531 A 08022620120501
150
SHEET METAL SCREW FRONT MODULE 4.8X19, J 47253520070424
150
SCREW-AND-WASHER ASSEMBLY FASTENING, CENTER PANELING M8X30, A 09406820120609
160
CLIP-TYPE NUT LINING TO RIGHT LONGITUDINAL MEMBER 4,8
160
SPRING-THREAD NUT PROTECTIVE PLATE
170
RETAINING RING STEP PLATE
