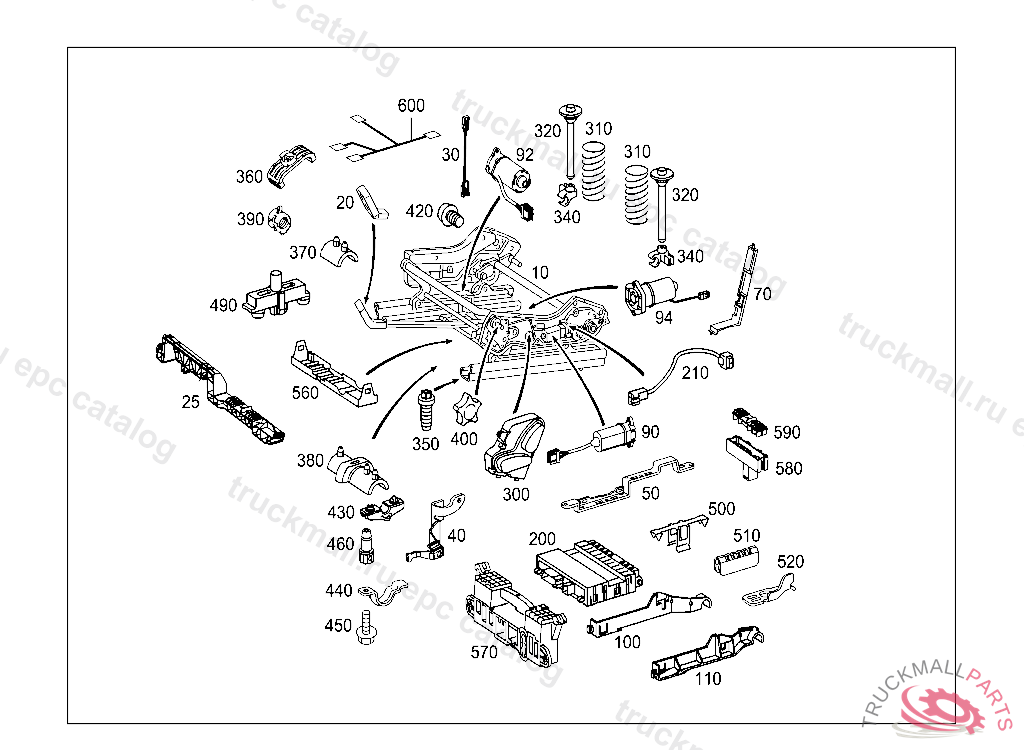

Поз.
Артикул
Описание
10
SEAT ADJUSTER LEFT, PARTIALLY ELECTRIC, F 45737520031014804
10
SEAT ADJUSTER RIGHT, WITH MEMORY, E 01872520030630804 F 45737520031010804 R 13114520031203804
10
SEAT ADJUSTER LEFT, WITH MEMORY, E 01872520030630804 A 55589720030630804 F 45737520031014804
10
HEIGHT ADJUSTMENT RIGHT, E 01872520030630804 F 45737520031014804 R 13114520031203804
20
HANDLE LEFT FORE AND AFT ADJUSTMENT
20
HANDLE RIGHT FORE AND AFT ADJUSTMENT, F 45737520031014804
25
LEDGE FRONT RIGHT
25
LEDGE FRONT LEFT
30
WIRING HARNESS HEIGHT ADJUSTMENT,LEFT, E 01872520030630804 A 55589720030630804 F 45737520031014804 R 13114520031203804
40
BRACKET RIGHT ORNAMENTAL COVER, E 01872520030630804 A 55589720030630804 F 45737520031014804 R 13114520031203804
40
BRACKET LEFT ORNAMENTAL COVER, E 01872520030630804 A 55589720030630804 F 45737520031014804 R 13114520031203804
50
RAIL (PARTS KIT), LEFT, E 01872520030630804 A 55589720030630804 F 45737520031014804 R 13114520031203804
50
RAIL (PARTSKIT), RIGHT, E 01872520030630804 A 55589720030630804 F 45737520031014804 R 13114520031203804
70
BRACKET RIGHT SEAT ADJUSTMENT CONTROL UNIT, LEFT, F 45737520031010804
70
BRACKET LEFT SEAT ADJUSTMENT CONTROL UNIT, RIGHT, E 01872520030630804 F 45737520031014804 R 13114520031203804
90
ELECTRIC MOTOR HEIGHT ADJUSTMENT, RIGHT SEAT
90
ELECTRIC MOTOR HEIGHT ADJUSTMENT, RIGHT, E 01872520030630804 A 55589720030630804 F 45737520031014804
90
ELECTRIC MOTOR HEIGHT ADJUSTMENT,LEFT, E 01872520030630804 A 55589720030630804 F 45737520031014804 R 13114520031203804
90
ELECTRIC MOTOR HEIGHT ADJUSTMENT,LEFT, E 01872520030630804 A 55589720030630804 F 45737520031014804
94
ELECTRIC MOTOR ANGLE ADJUSTMENT, LEFT, F 45737520031014804
94
ELECTRIC MOTOR ANGLE ADJUSTMENT, RIGHT, E 01872520030630804 A 55589720030630804 F 45737520031014804 R 13114520031203804
100
BRACKET CONTROL UNIT, LEFT
200
CONTROL UNIT SEATS LEFT SEAT, E 01872520030630804 A 55589720030630804 F 45737520031014804 R 13114520031203804 E 01938420040430
200
CONTROL UNIT SEATS RIGHT SEAT, E 01872520030630804 A 55589720030630804 F 45737520031014804 E 01944920051031 A 88183120051130
200
CONTROL UNIT LEFT SEAT, E 01938520040430804 A 88183220051130804 F 78133120051130804 R 21898920051122804 FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO., Replaced By: A2118704085
200
CONTROL UNIT SEATS LEFT SEAT, E 01938520040430804 F 78133120051130804 R 21898920051122804 FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO. E 02999920061231, Replaced By: A2118704585
200
CONTROL UNIT SEATS LEFT SEAT, E 01872520030630804 F 45737520031014804 R 13114520031203804 E 01938420040430 F 78133020051130, Replaced By: A2118705026
200
CONTROL UNIT SEATS LEFT SEAT, E 01872520030630804 A 55589720030630804 F 45737520031014804 R 13114520031203804 E 01938420040430, Replaced By: A2118704926
200
CONTROL UNIT RIGHT SEAT, E 01872520030630804 A 55589720030630804 F 45737520031014804 E 01944920051031 A 88183120051130, Replaced By: A2118700726
200
CONTROL UNIT LEFT SEAT, E 01872520030630804 A 55589720030630804 F 45737520031014804 R 13114520031203804 E 01938420040430, Replaced By: A2118700526
200
CONTROL UNIT LEFT SEAT, E 01872520030630804 F 45737520031014804 R 13114520031203804 E 01938420040430 F 78133020051130, Replaced By: A2118208685
200
CONTROL UNIT RIGHT SEAT, E 01872520030630804 F 45737520031014804 R 13114520031203804 E 01944920051031 F 78133020051130, Replaced By: A2118208585
200
CONTROL UNIT LEFT SEAT, F 78133120051130804
200
CONTROL UNIT LEFT SEAT, F 78133120051130804
300
SWITCH LEFT SEAT ADJUSTMENT
300
SWITCH RIGHT
350
BOLT FRONT SEAT TO CONSOLE M10X28
360
BEARING LEFT SEAT ADJUSTMENT, E 01872520030630804 A 55589720030630804 F 45737520031014804 R 13114520031203804
390
SHELL SEAT ADJUSTMENT, RIGHT, E 01872520030630804 A 55589720030630804 F 45737520031014804 R 13114520031203804
400
HANDWHEEL LEFT SEAT
420
SCREW BACKREST FRAME TO SEAT FRAMEWORK
440
CLAMP LEFT SEAT ADJUSTMENT, E 01872520030630804 A 55589720030630804 F 45737520031014804 R 13114520031203804
450
HEXALOBULAR BOLT ON BOW,LEFT M6X12, E 01872520030630804 A 55589720030630804 F 45737520031014804 R 13114520031203804
490
STOP LEFT SEAT ADJUSTMENT
510
STOP SEAT ADJUSTMENT, RIGHT
520
STOP RIGHT
520
STOP LEFT
580
HOUSING SEAT SEPARATION POINT CONNECTOR CARRIER
590
BRACKET SEAT PARTITION POINT, LEFT
600
EL. CABLE RIGHT SEAT BLADDER
