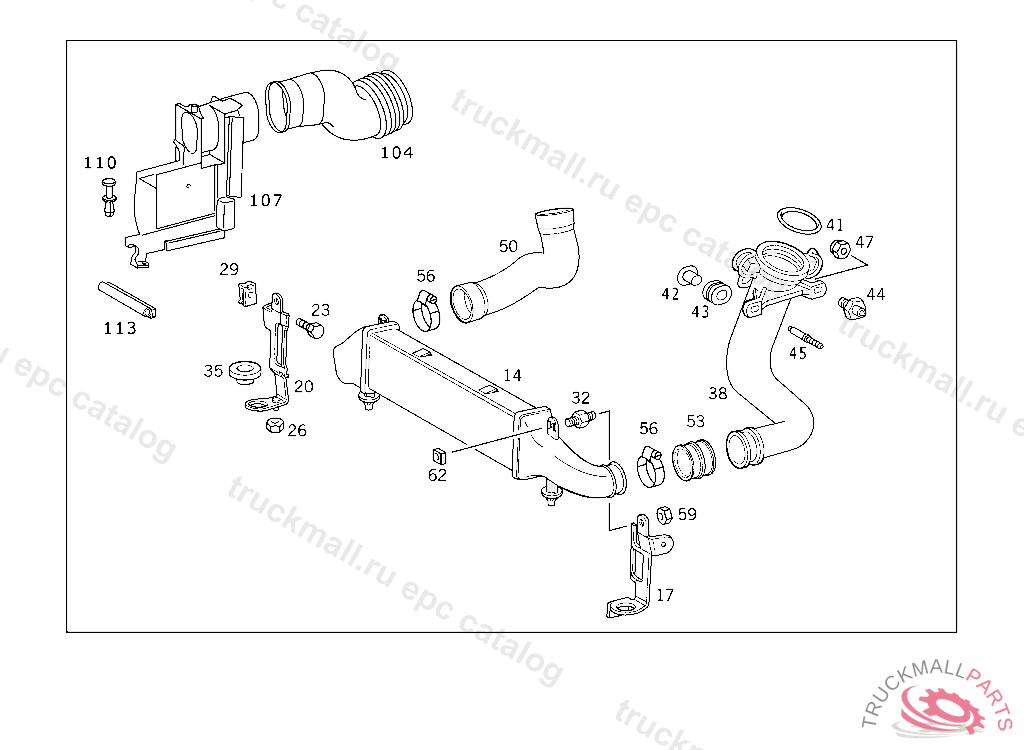

Поз.
Артикул
Описание
14
RADIATOR (CHARGING AIR INTERCOOLER),F 137476
14
RADIATOR , Replaced By: A1705000300
14
RADIATOR (CHARGING AIR INTERCOOLER)
17
BRACKET LEFT
20
BRACKET RIGHT
23
HEXAGON HEAD BOLT
26
NUT-AND-WASHER ASSEMBLY. NUT ABS MOUNTING ON BRACKET ASSEMBLY
29
LOCK. NUT , Replaced By: A0039941745
32
BUFFER AIR CLEANER TO INTAKE PIPE SOCKET
32
BUFFER OIL TANK
32
BUFFER COMPRESSED AIR LINE TO FRAME
35
ELASTOMER BEARING. RUBBER BUFFER HYDRAULIC UNIT TO BRACKET, A 519674 F 619721 EXCEPT CODE 807 ALSO INSTALLED IN VEHICLE TO A 519673, F 619720 WITH CODE 808
38
AIR INTAKE PIPE , F 093346, Replaced By: A1705280508, +002A0019907305, +002N910104006000
38
AIR INTAKE PIPE LEFT,F 093347
41
SEAL RING
42
BUSHING AT CHARGING AIR INTERCOOLER
43
GROMMET
44
RUBBER MOUNTING AT RIGHT SIDE MEMBER
45
STUD HEATER UNIT
47
NUT , Replaced By: N913023006001
47
NUT LEVER TO THROTTLE VALVE SHAFT TO 366 140 02 32
50
HOSE RIGHT
50
HOSE , FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO. F 005266, Replaced By: A1705280182
53
BOOT CHARGE AIR INTERCOOLER
56
LOOM TIE. CLAMP HOSE FASTENING
56
CLAMP , Replaced By: A0069972690
59
NUT-AND-WASHER ASSEMBLY. NUT ABS MOUNTING ON BRACKET ASSEMBLY
62
NUT LEVER TO THROTTLE VALVE SHAFT TO 366 140 02 32
62
NUT , Replaced By: N913023006001
104
PIPE ELBOW BETWEEN COLD AIR SCOOP AND AIR CLEANER
107
SCOOP ON UPPER FRAME CROSS MEMBER
110
RIVET
113
BOOT360 MM
