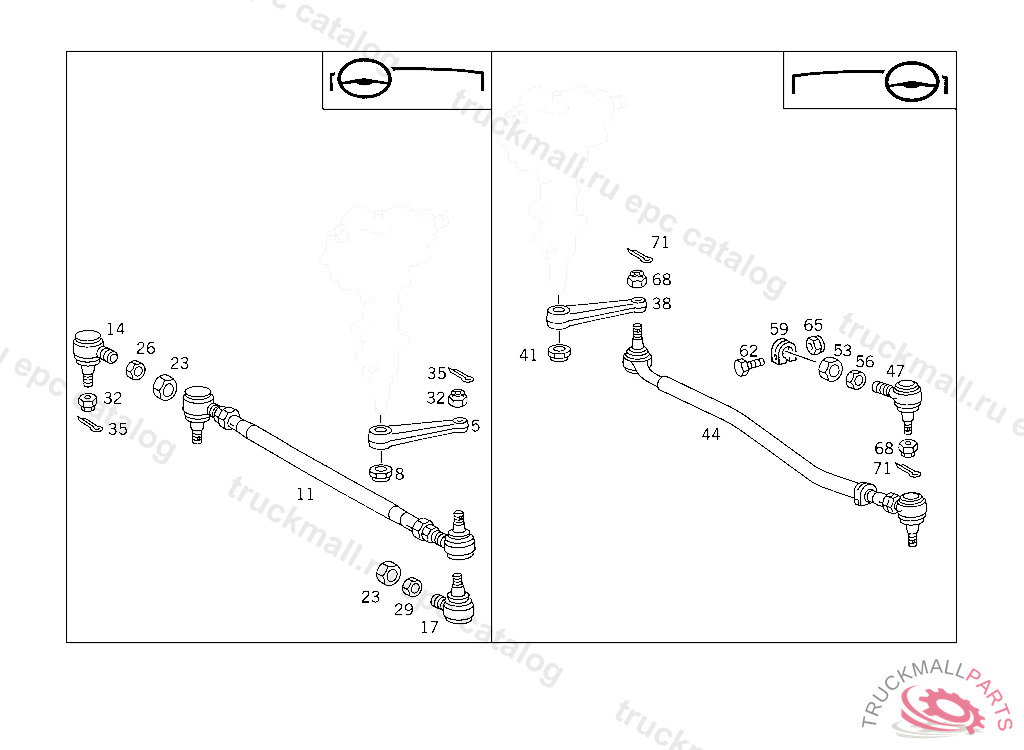

Поз.
Артикул
Описание
5
PITMAN ARM ,007239
8
NUT DRAG LINK TO LEVER
11
DRAG LINK
11
DRAG LINK
14
DRAG LINK ENDTO 463 460 01 05,02 05,463 463 04 15, Replaced By: A0024601948
14
BALL JOINTTO 463 463 00 15,463 463 04 15
14
JOINT L.H. THREAD LEMFOERDER
17
DRAG LINK ENDTO 463 463 04 15, Replaced By: A0024601648
17
BALL JOINTTO 463 463 04 15
17
JOINT R.H. THREAD LEMFOERDER
23
CLAMPING PIECETO 463 460 01 05,463 460 02 05
26
NUT L.H. THREAD M 24X1.5 LH
29
NUT SHACKLE TO REAR-SPRING REAR BRACKET
32
NUT DRAG LINK TO PITMAN ARM AND TO STEERING INTERMEDIATE ARM M 16X1.5
35
COTTER PIN STRAP TO SUPPORT
38
PITMAN ARM ,007239
41
NUT DRAG LINK TO LEVER
44
DRAG LINK ,007239
44
DRAG LINK ,007239
47
BALL JOINTTO 463 463 00 15,463 463 04 15
47
DRAG LINK ENDTO 463 460 01 05,02 05,463 463 04 15, Replaced By: A0024601948
47
JOINT L.H. THREAD LEMFOERDER
53
CLAMPING PIECETO 463 460 01 05,463 460 02 05
56
NUT L.H. THREAD M 24X1.5 LH
59
CLAMPTO 463 463 03 15,463 463 06 15
62
SCREW CLAMP TO DRAG LINK TO 344 338 73 45
65
NUT , Replaced By: N910113010002
65
HEXAGON NUT
68
NUT DRAG LINK TO PITMAN ARM AND TO STEERING INTERMEDIATE ARM M 16X1.5
71
COTTER PIN STRAP TO SUPPORT
