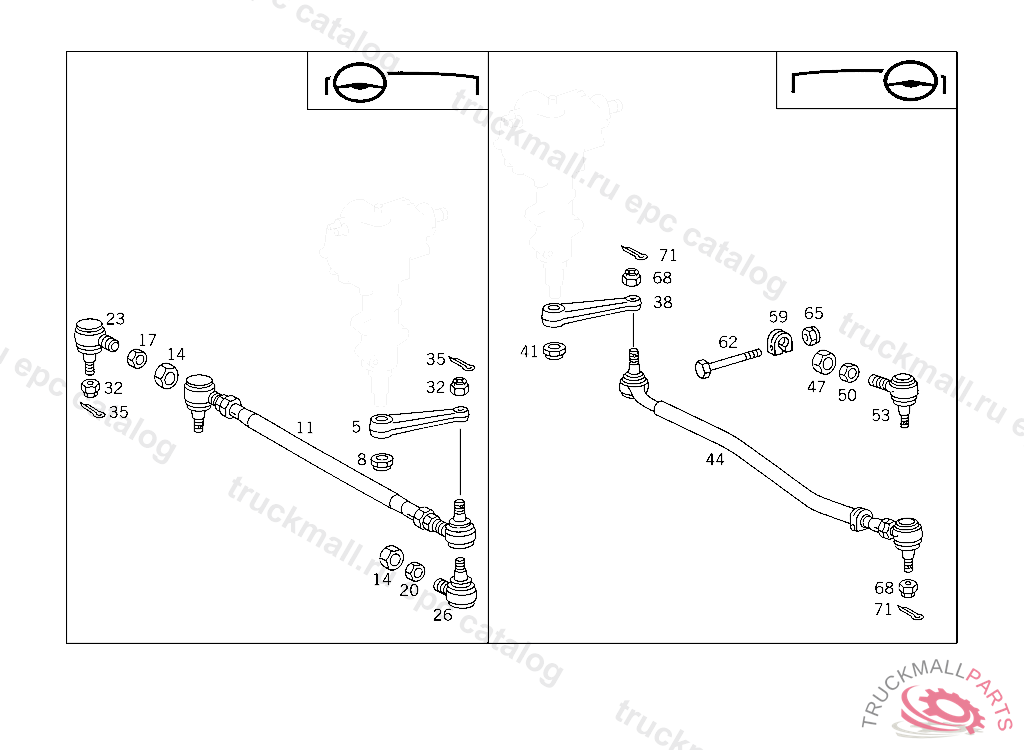

Поз.
Артикул
Описание
5
PITMAN ARM ,007239
8
NUT DRAG LINK TO LEVER
11
DRAG LINK
11
DRAG LINK
11
DRAG LINK
11
DRAG LINK , Replaced By: A4634630015
11
DRAG LINK
11
DRAG LINK
14
CLAMPING PIECETO 463 460 01 05,463 460 02 05
17
NUT L.H. THREAD M 24X1.5 LH
17
NUT L.H. THREAD M 20X1.5 LH, 075164 906503
20
NUT , Replaced By: N308675020003
20
NUT ROD TO TORSION BAR
20
NUT SHACKLE TO REAR-SPRING REAR BRACKET
23
JOINT L.H. THREAD LEMFOERDER
23
BALL JOINTTO 463 463 00 15,463 463 04 15
23
JOINTTO 463 463 03 15,463 463 06 15
23
DRAG LINK ENDTO 463 460 01 05,02 05,463 463 04 15, Replaced By: A0024601948
26
DRAG LINK ENDTO 463 463 04 15, Replaced By: A0024601648
26
BALL JOINTTO 463 463 04 15
26
JOINT
26
JOINT R.H. THREAD LEMFOERDER
32
NUT , Replaced By: N000979016007
32
NUT SHOCK ABSORBER TO CROSS MEMBER
35
COTTER PIN STRAP TO SUPPORT
38
PITMAN ARM ,007239
41
NUT DRAG LINK TO LEVER
44
DRAG LINK
44
DRAG LINK ,007239
44
DRAG LINK ,007239
44
DRAG LINK
47
CLAMPING PIECETO 463 460 01 05,463 460 02 05
50
NUT L.H. THREAD M 24X1.5 LH
53
BALL JOINTTO 463 463 00 15,463 463 04 15
53
JOINT L.H. THREAD LEMFOERDER
53
DRAG LINK ENDTO 463 460 01 05,02 05,463 463 04 15, Replaced By: A0024601948
59
CLAMPTO 463 463 03 15,463 463 06 15
62
SCREW TIE ROD, FROM AXLE 1 2480131 511630
65
HEXAGON NUT
65
NUT , Replaced By: N910113010002
68
NUT , Replaced By: N000979016007
68
NUT SHOCK ABSORBER TO CROSS MEMBER
71
COTTER PIN STRAP TO SUPPORT
999
CLAMPING PIECE
