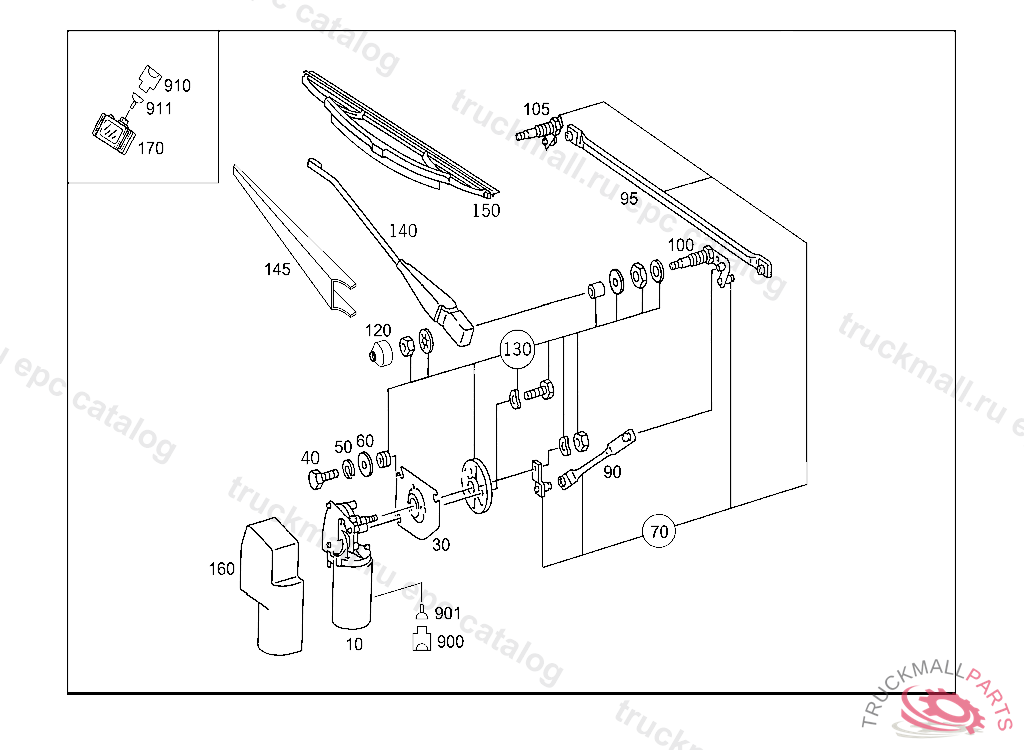

Поз.
Артикул
Описание
10
WIPER MOTOR WIPER MOTOR
10
ELECTRIC MOTOR WIPER MOTOR
30
ASSEMBLY PLATE WIPER MOTOR TO FIRE WALL
30
PLATE WIPER MOTOR TO FIRE WALL
40
SCREW COVER PLATE TO BRACKET
40
HEXALOBULAR BOLTM6X12
50
LOCK WASHER CONTROL LEVER TO INJECTION PUMP LEVER
60
WASHER COMPRESSED AIR LINE TO BRACKET
70
WIPER LINKAGE BETWEEN ENGINE CRANK AND WIPER BEARING, X 18350720091217
70
LINKAGE BETWEEN ENGINE CRANK AND WIPER BEARING
70
WIPER LINKAGE BETWEEN ENGINE CRANK AND WIPER BEARING, FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO. X 19772020120321, Replaced By: A4618203500
70
RELEASE LINKAGE BETWEEN ENGINE CRANK AND WIPER BEARING, X 18350620091217
90
JOINTED ROD
95
JOINTED ROD
95
LINKAGE FROM LEFT WIPER BEARING TO RIGHT WIPER BEARING
95
JOINTED ROD , X 19787720120323
100
BEARING PARTS SET, RIGHT
100
NUT WIPER BEARING
105
BEARING PARTS SET, LEFT
120
CAPSULE PANE WASHER SYSTEM
130
WIPER ASSEMBLY WIPER MOTOR TO FIRE WALL
140
WIPER ARM , X 18678220100531 20140318
140
WIPER ARM PANE WASHER SYSTEM, FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO. X 20469920121114, Replaced By: A4638200044
140
WIPER ARM , 20140318
140
WIPER ARM
145
PANEL WIPER ARM, X 16854820061031
150
TS WIPER BLADE LEFT AND RIGHT
160
CAP WIPER MOTOR
170
CONTROL UNIT RAIN AND LIGHT SENSOR, X 20407820121031
170
RAIN SENSOR , A 290167 EXCEPT CODE 805 ALSO INSTALLED IN VEHICLE TO A 290166 WITH CODE 806
900
PIN BUSHING HOUSING 5-POLE
901
SOCKET. PIN BUSHING LESS DETENT,BUT WITH CATCH FOR HOUSING 2,5 MM2
910
PIN BUSHING HOUSING RAIN SENSOR 4 POLIG
911
CONTACT BUSHINGR 27, 0.75 MM2
