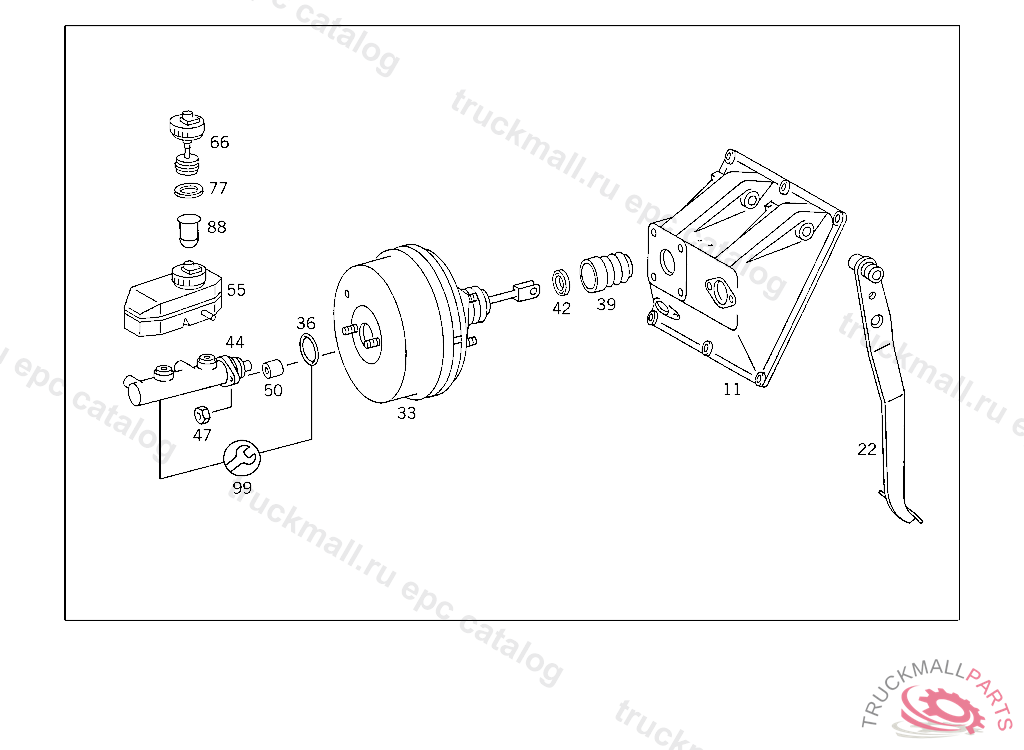

Поз.
Артикул
Описание
11
BEARING BRACKET PEDAL ASSEMBLY
11
BEARING BRACKET , Replaced By: A4602941201
22
PEDAL
33
BRAKE BOOSTER ASSEMBLYTEVES, 601.411-467 FROM CHASSIS 649391,AND 601.476-477 FROM 614797P 000001
36
SEAL RING ,145737 EXCEPT FOR 145741,145768,145770,145774,145786,145787,145795,145807,145808,145819,145825,145830,145837,145840, 145846,145860,145861,145888,145901,145907,145910,145911,145913,145914,145915,145916,145917,146138. ALSO INSTALLED ON 139841,139842,140553,145397,145406,145409,145426,145445,145462,145592,145660,145697,145701.
39
PROTECTIVE CAP , FROM CHASSIS: 017 062833, FEDERAL, ALSO INSTALLED ON: 059499,060650,061519,061527,062799. 017 062927, CALIFORNIA, ALSO INSTALLED ON: 048629,060112,062772 114 029142, ALSO INSTALLED ON: 002250,003131,016950,026317,026334,026513,027268,027269,027272,027281,027513,027518,027822,027824, 028251,029032,029113,029121,029128. 117 10/50 102743, ALSO INSTALLED ON: 098668,099672,100535,100850,100851,101663,102380,102507,102622,102708,102717. 117 12/52 102759, ALSO INSTALLED ON: 088215,099223,099235,099370,099371,099673,100542,101165,101171,101246,102475,102643,102651,102724.
42
SEAL RING
44
BRAKE MASTER CYLINDERTO 002 430 99 30
44
BRAKE MASTER CYLINDER PARTS KIT
47
NUT
47
NUT , Replaced By: N304032008006
50
BUSHING , Replaced By: A0004310950
50
BUSHINGTO A 004 430 98 01
50
BUSHING , 415 5 014668 416 5 000515 417 4 972023
55
RESERVOIR BRAKE FLUID
55
RESERVOIRTEVES,TO 004 430 28 01, 601.411-467 FROM CHASSIS 649391,AND 601.476-477 FROM 614797P 000001
55
RESERVOIR , Replaced By: A0014314702, +001A0004314133
66
FILLER CAP WITH SEAL RING
66
FILLER CAP
66
FILLER CAP , FOR USE LESS DAMLILER-BENZ BODY FROM IDENT NO. 034054 ALSO INSTALLED ON 033499,033577,033608,033628,033648,033665,033672-033677,033681-033688,033981,033998,034012. FOR USE WITH DAIMLER-BENZ BODY FROM IDENT NO. 034051,ALSO INSTALLED ON 033499,033577,033608,033628,033648,033665,033672-033677,033681-033688,033981,033998,034012.
77
SEAL RING42X21.5 MM
77
SEAL RINGTEVES
88
STRAINER , Replaced By: A0004316934
88
STRAINER
88
STRAINER
99
REPAIR KITTO 004 430 93 01,004 430 98 01
999
BRAKE BOOSTER ASSEMBLY" D9 "
999
FILLER CAP BUTTRESS THREAD
999
PROTECTIVE CAP , 000 113166 003 057448 007 046963 083 001049 086 000766 093 000621 102,103 092825 105 116297 183 001424 190 001362
999
BRAKE BOOSTER ASSEMBLY DIA., "9", 031805 900881
999
RESERVOIR ,031805
999
BRAKE MASTER CYLINDER ,035693
999
BRAKE MASTER CYLINDER
999
SPRING
999
BUSHING , Replaced By: A1242920050
999
PAD BRAKE PEDAL
999
ROLLER
999
PEDAL
999
SPINDLE BRAKE PEDAL
999
COVER PLATE PEDAL BRACKET
999
BEARING BRACKET , Replaced By: A4602941201
999
BEARING BRACKET PEDAL ASSEMBLY
999
PEDAL (BRAKE PEDAL)
999
COTTER PIN LEVER TO ROD, Replaced By: N000094002060
999
COTTER PIN LEVER TO ROD
999
WASHER EXHAUST MUFFLER TO STRAP
999
SPRING WASHER PROTECTIVE PLATE TO EXHAUST MUFFLER
999
PIN LEVER TO ROD
999
GROOVED PIN AT BEARING BRACKET
999
LOCK PLATE
999
SCREW OIL-DIPSTICK GUIDE TUBE TO BRACKET
999
SCREW BRACKET TO CROSS CONNECTION STRUT
999
HEXAGON NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET
999
PLUG AIR INTAKE PIPE
