Поз.
Артикул
Описание

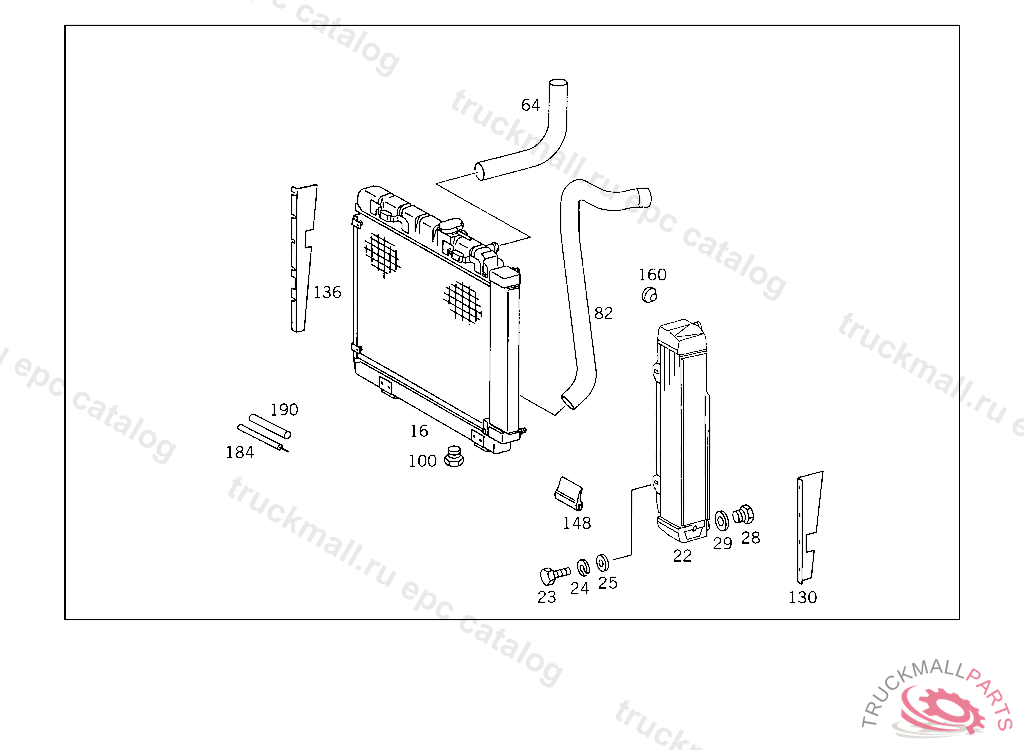

16
RADIATOR , 065505 904509, Replaced By: A0015016301, +002A4605040146, +001A4605051055
16
RADIATOR
16
RADIATOR
16
RADIATOR , Replaced By: A0015010701
16
RADIATOR , Replaced By: A0015010701
16
RADIATOR , Replaced By: A0015010701
16
RADIATOR , Replaced By: A0015010501
16
RADIATOR
22
OIL COOLER
23
SCREW BATTERY CABLE MOUNTING AND MAIN CABLE HARNESS MOUNTING M 6X60
24
LOCK WASHER BATTERY BASE FRAME TO BATTERY/APPARATUS SUPPORT
25
WASHER COMPRESSED AIR LINE TO BRACKET
25
WASHER , Replaced By: N009021006208
28
SCREW PLUG , Replaced By: N007604014101
28
SCREW PLUG WATER DRAIN
29
SEAL RING FUEL LINE TO FEED PUMP
64
HOSE TOP
64
HOSE TOP
82
HOSE , Replaced By: A4605011782
82
HOSE COOLING WATER
82
HOSE BOTTOM
82
HOSE BOTTOM
100
SCREW PLUG M 14 X 1, 5. SCREW PLUG OVERFLOW LINE TO RADIATOR
100
NUT RETURN
130
COVERING , Replaced By: A4606260140
130
COVERING
136
COVERING RIGHT
136
COVERING RIGHT
148
RUBBER SEAL COVERING, ORDER BY THE METER
160
GROMMET
184
ELECTRIC CABLE FROM BATTERY TO TRANSMISSION, ORDER BY THE METER
184
ELECTRIC CABLE FROM BATTERY TO BATTERY SUPPORT, ORDER BY THE METER
190
INSULATING HOSE LINE MOUNTING, ORDER BY THE METER
999
COVERING
999
COVERING
999
FAN SHROUD
999
FAN SHROUD
999
HOSE , Replaced By: A4605000075
999
HOSE BOTTOM, NOT USED
999
HOSE
999
HOSE
999
HOSE TOP
999
HOSE BOTTOM
999
RADIATOR
999
RADIATOR , NOT USED
999
RADIATOR ,003020
999
CLIP HOSE TO CAB,4 238841
