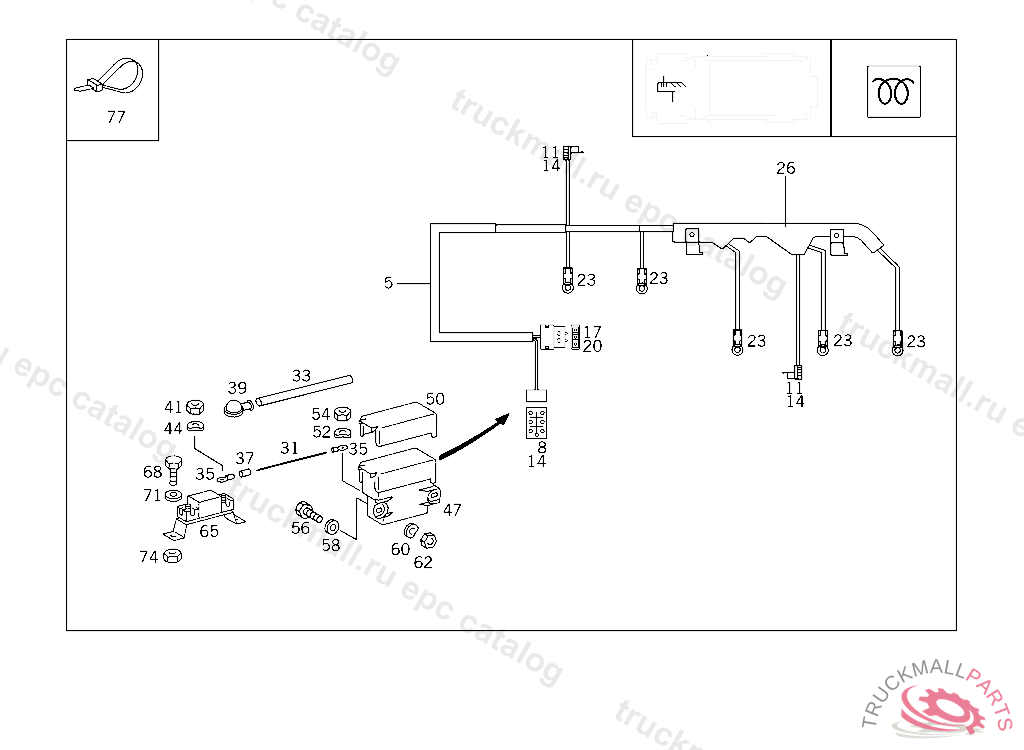

Поз.
Артикул
Описание
5
CABLE HARNESS PRE-GLOW SYSTEM
8
PIN BUSHING HOUSING PRE-GLOW TIME RELAY, 5-POLE
11
PIN BUSHING HOUSING SPEED TRANSMITTER
14
ROUND PIN BUSHING WITH DETENT AND WITH CATCH FOR HOUSING 2.5 MM2
17
PLUG HOUSINGADS-ASD
20
PLUG PIN
23
CABLE SHOE2.5-6.0 MM2
26
RAIL CABLE HARNESS
31
ELECTRIC CABLE CONDENSER 440 MM, ORDER BY THE METER
33
INSULATING HOSE4 X 0.5 MM, ORDER BY THE METER
35
CABLE SHOEA 6-6
37
GROMMET3.0 MM
39
BOOT SERIES RESISTOR
41
NUT IN CASE OF SUBSEQUENT INSTALLATION
41
NUT , Replaced By: N304032005005
44
SPRING WASHER ALTERNATOR CONNECTION D+
47
PRE-GLOW TIME RELAY (PRE-GLOW TIME RELAY)
50
BOOTTO 001 545 97 32,001 545 98 32
56
SCREW COVER PLATE TO BRACKET
58
WASHER COMPRESSED AIR LINE TO BRACKET, Replaced By: N000125006449
58
WASHER COMPRESSED AIR LINE TO BRACKET
60
SPRING WASHER LICENSE PLATE TO BRACKET
62
NUT SPRING-LOADED PUSH ROD
65
SERIES RESISTOR LEFT, AT WHEELHOUSE
68
SCREW COVER PLATE TO COVER PLATE M 6 X 12
71
WASHER COMPRESSED AIR LINE TO BRACKET
71
WASHER COMPRESSED AIR LINE TO BRACKET, Replaced By: N000125006449
74
NUT SPRING-LOADED PUSH ROD
77
LOOM TIE , UP TO CHASSIS: 108.012 UNTIL PRODUCTION STOP 108.016 042417 108.018,019 043374 109.016 002452
77
LOOM TIE LINE MOUNTING 280 MM
999
ELECTRIC CABLE FROM SERIES RESISTOR TO PRE-GLOW TIME RELAY
