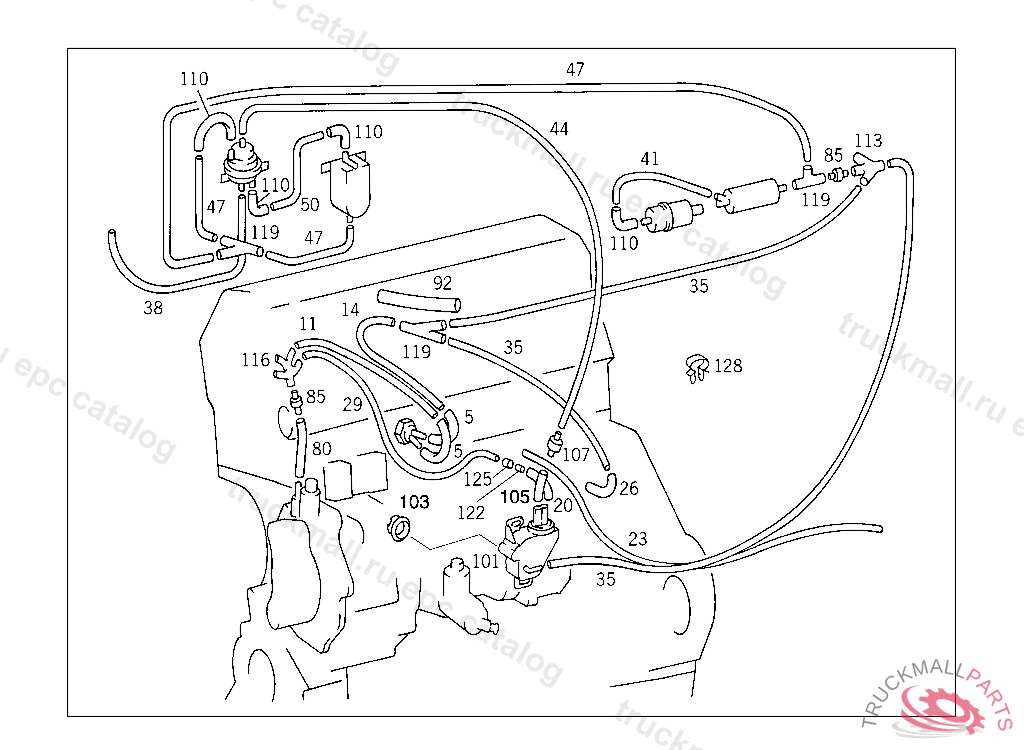

Поз.
Артикул
Описание
11
PIPE LINE FROM CHECK VALVE DISTRIBUTOR TO SUPPLY TANK 500 MM, ORDER BY THE METER 114.010 FROM CHASSIS 031062,114.015,017 FROM CHASSIS 033609,114.021 FROM CHASSIS 001552,114.022 FROM CHASSIS 000843,114.023 FR OM CHASSIS 000001 115.010 FROM CHASSIS 034113,115.015 FROM CHASSIS 032215 114.010,021,022 UNTIL PRODUCTION STOP, 114.011 UP TO CHASSIS 108425, 114.015,017 UP TO CHASSIS 245853, 114.023 UP TO CHASSIS 100866 AND FOOTN.63
23
HOSE , ORDER BY THE METER
26
HOSE
29
PIPE LINE FROM CHECK VALVE DISTRIBUTOR TO SUPPLY TANK 500 MM, ORDER BY THE METER 114.010 FROM CHASSIS 031062,114.015,017 FROM CHASSIS 033609,114.021 FROM CHASSIS 001552,114.022 FROM CHASSIS 000843,114.023 FR OM CHASSIS 000001 115.010 FROM CHASSIS 034113,115.015 FROM CHASSIS 032215 114.010,021,022 UNTIL PRODUCTION STOP, 114.011 UP TO CHASSIS 108425, 114.015,017 UP TO CHASSIS 245853, 114.023 UP TO CHASSIS 100866 AND FOOTN.63
35
LINE. HOSE FROM VACUUM CONTROL VALVE TO PASSENGER COMPARTMENT 4 MM, ORDER BY THE METER
41
PIPE LINE AIR INJECTION, BLUE/LILAC 1200 MM, ORDER BY THE METER
80
HOSE MASTER SWITCH AND VACUUM SWITCH 40 MM, 023 164780 033 066774 123 158077 130 172061
85
DASHPOT. STRAINER VACUUM LINE
92
INSULATING HOSE5 X 0.6 MM, ORDER BY THE METER
92
INSULATING HOSE BLACK 10 MM, ORDER BY THE METER
92
INSULATING HOSE16X1 MM, ORDER BY THE METER
92
INSULATING HOSE BLACK 12 X 0,8 MM
101
VALVE VACUUM CONTROL VALVE
101
VALVE
101
VALVE , Replaced By: A1403000833, +001A1162760929
105
HOSE VACUUM PUMP, ORDER BY THE METER
110
HOSE TO ELEMENT AT FRONT SEAT
119
BRANCH-OFF FITTING INCREASE IN TRANSMISSION SHIFT POINT & 2 SELECTION PROGRAMS, F 140421 EXCEPT CODE 807 ALSO INSTALLED IN VEHICLE FROM F 140422 WITH CODE 806
122
THROTTLE
999
LOCKING CAP
999
HOSE , Replaced By: A1179970982
999
GROMMET
