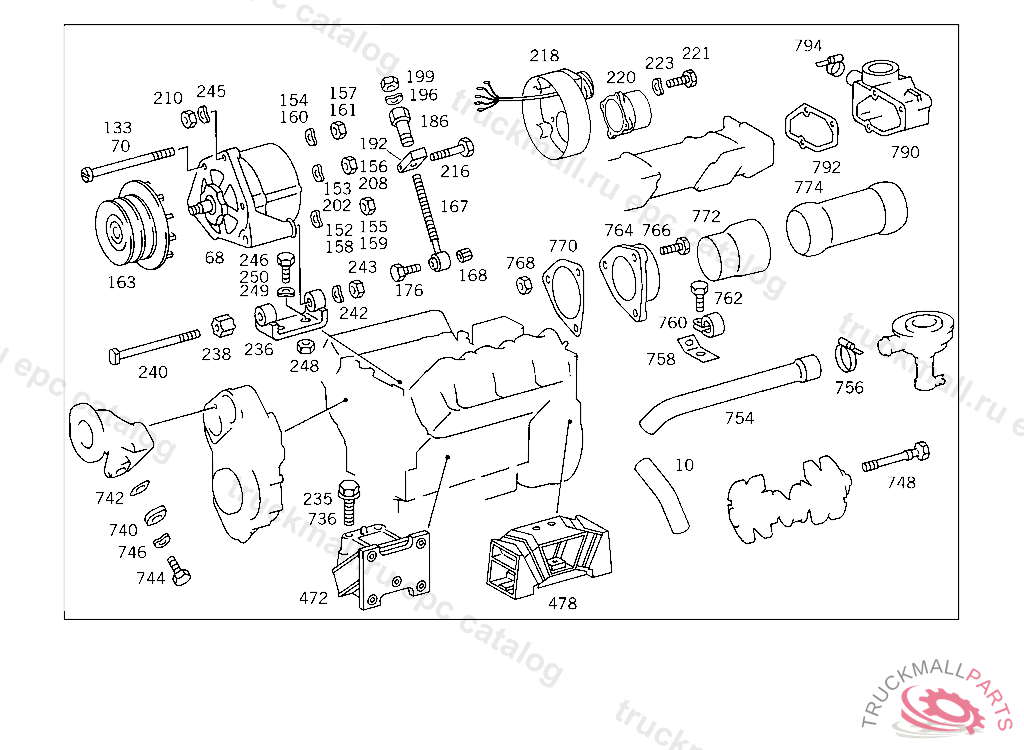

Поз.
Артикул
Описание
10
HOSE CYLINDER CRANKCASE BREATHING
68
ALTERNATORN1 28V 10/55A, PART IS ONLY OR ALSO SUPPLIED AS RECONDITIONED PART
68
ALTERNATOR , Replaced By: A0091540702
70
SCREW
70
SCREW , Replaced By: A0009909621
133
SCREWTO 005 154 11 02
152
SPRING WASHER PROTECTIVE PLATE TO EXHAUST MUFFLER
152
SPRING WASHER , Replaced By: N000137008212
152
SPRING WASHER , Replaced By: N000137008204
153
SPRING WASHER ALTERNATOR CONNECTION W
154
SPRING WASHER ELECTRIC CABLE TO ALTERNATOR
154
SPRING WASHER HEATER PLUG CABLE HARNESS
155
NUT FROM CONTROL LEVER TO INTERMEDIATE SHAFT AT ENGINE
155
NUT
156
NUT BALL PIVOT TO LEVER
157
NUT BOOT TO AIR DUCT AND TO AIR CLEANER
157
NUT TACHOGRAPH TO BRACKET
157
NUT , Replaced By: N304032005005
157
NUT IN CASE OF SUBSEQUENT INSTALLATION
158
SPRING WASHER , Replaced By: N000137008212
158
SPRING WASHER , Replaced By: N000137008204
158
SPRING WASHER PROTECTIVE PLATE TO EXHAUST MUFFLER
159
NUT COVER TO CASE
160
SPRING WASHER ALTERNATOR CONNECTION W
161
NUT BALL PIVOT TO LEVER
163
FAN , Replaced By: A0001558518
167
CLAMPING BOLT FOR V-BELT TENSIONING
167
CLAMPING BOLT
167
CLAMPING BOLT (CLAMPING BOLT)
168
BUSHINGTO 355 150 03 72,366 150 13 72
168
BUSHING
168
BUSHING
176
NUT BRACKET TO SUPPORT AND TO END PIECE
176
SCREW BRACKET TO FRAME SIDE MEMBER
176
SCREW , Replaced By: N304017010036
176
SCREW BRACKET TO SIDE MEMBER M10X38
186
NUT TIGHTENER PULLEY TO LEVER
192
CLAMPING PIECE , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A3141550228
192
CLAMPING PIECE TIGHTENER PULLEY TO LEVER
192
CLAMPING PIECE TIGHTENER PULLEY
196
SPRING WASHER CAB FLOOR
199
NUT
199
NUT R.H. THREAD
199
NUT , 058 USED WITH HYDRAULIC BRAKE, UP TO CHASSIS 589554
202
WASHER COMPRESSED AIR LINE TO BRACKET, Replaced By: N000125006449
202
WASHER RADIATOR TO RUBBER MOUNTING
202
WASHER , Replaced By: N000125013008
208
NUT SPRING-LOADED PUSH ROD
208
NUT ANGLE TO FRAME
208
NUT , Replaced By: N304032008006
208
NUT , Replaced By: N304032005005
208
NUT IN CASE OF SUBSEQUENT INSTALLATION
208
NUT
210
NUT STRAP TO SUPPORT
210
NUT BRACKET TO SUPPORT AND TO END PIECE
210
NUT SUPPORT TO SIDE MEMBER
216
SCREW CLAMPING BOLT TO ALTERNATOR
216
SCREW POWER STEERING PUMP BRACKET
216
SCREW CLAMPING BOLT TO BRACKET
216
SCREW TORSION BAR TO SHACKLE,5 903514
216
SCREW ,5 903514, Replaced By: N000960012353
218
PLUG & SOCKET CONNECTION (AIR INTAKE COVER)
220
PIPE SOCKET (INTAKE PIPE-SOCKET)
221
SCREW LICENSE PLATE TO BRACKET
223
WASHER COMPRESSED AIR LINE TO BRACKET, Replaced By: N000125006449
235
SCREW , Replaced By: N914126012011
235
SCREW SUPPORTING ARM TO ENGINE
235
SCREW SUPPORTING ARM TO ENGINE
236
SUPPORT ALTERNATOR
238
BUSHING
240
SCREW ALTERNATOR MOUNTING
242
SPRING WASHER STEERING COLUMN BRACKET TO CAB
243
NUT AIR CLEANER ELEMENT
245
SPRING WASHER STEERING COLUMN BRACKET TO CAB
246
SCREW PIPE ELBOW TO BRACKET M 10X50
246
SCREW , Replaced By: N304017010053
246
SCREW , Replaced By: N304017010002
246
SCREW BRACKET TO SIDE MEMBER
248
NUT BRACKET TO SUPPORT AND TO END PIECE
249
LOCK WASHER BRACKET TO SUPPORT AND TO END PIECE
250
SCREW , Replaced By: N304017010040
250
SCREW STRUT TO CROSS MEMBER M 10X25
472
RUBBER MOUNTING
472
RUBBER MOUNTING FRONT LEFT AND RIGHT, 415 5 014668 416 5 000515 417 4 972023
478
RUBBER MOUNTING REAR
736
SCREW SUPPORTING ARM TO ENGINE
736
SCREW , Replaced By: N914126012011
736
SCREW SUPPORTING ARM TO ENGINE
740
FLANGE WATER DRAIN
742
GASKET
744
SCREW , Replaced By: N304017008034
744
SCREW BRACKET TO CROSS CONNECTION STRUT
746
SPRING WASHER , Replaced By: N000137008212
746
SPRING WASHER PROTECTIVE PLATE TO EXHAUST MUFFLER
748
SCREW
754
HOSE (MOLDED HOSE)
756
CLAMP INTERMEDIATE PIPE TO PARTICLE FILTER
758
BRACKET MOLDED HOSE TO INTAKE MANIFOLD
760
CLAMP FRAME MOUNTED CABLE HARNESS TO CAB
762
SCREW COVER PLATE TO COVER PLATE M 6 X 12
762
SCREW , Replaced By: N304017006018
764
FLANGE
766
SCREW CONNECTOR TO EXHAUST MANIFOLD
768
NUT , Replaced By: N999901012000
768
NUT EXHAUST PIPE TO EXHAUST MANIFOLD
770
FLANGE GASKET FRONT EXHAUST PIPE TO EXHAUST MANIFOLD, ELIMINATED - NO LONGER REQUIRED
770
FLANGE GASKET , Replaced By: A4424920080
772
CONNECTOR
774
CONNECTOR FROM THROTTLE HOUSING FLANGE TO EXHAUST PIPE
790
CONNECTION PIPE SOCKET DIAPHRAGM TYPE DASHPOT ON INTAKE MANIFOLD
792
GASKET INTAKE MANIFOLD
794
CLAMP , Replaced By: N000000000667
794
CLAMP HOSE TO SUCTION LINE AND TO OIL TANK 20-32X13 MM
999
NUT REAR EXHAUST PIPE TO BRACKET
999
CLAMP , Replaced By: N000000000678
999
CLAMP , Replaced By: N000000001045
999
CLAMP HEATER-PLUG/SOLENOID-VALVE BRANCH-OFFS TO NOZZLE HOLDER,K 092646
999
HOLLOW SCREW
999
NUT , Replaced By: N910113005001
999
NUT HOOK TO BRACKET
999
SCREW INTAKE PIPE SOCKET TO WATER PUMP
999
HOSE LINE , Replaced By: A0139976182
999
FLANGE HEATING CONNECTION
999
SHEET METAL SCREW
999
NARROW V-BELT , Replaced By: A0049971392
999
SCREW PEDAL BEARING BRACKET TO SIDE MEMBER,734154
999
NUT WEAR INDICATOR
999
WASHER COVER TO ALTERNATOR
999
CLAMP HOSE TO CAB CONSOLE AND TO ENGINE CONNECTION
999
CLAMP CABLE HARNESS MOUNTING
999
CLAMP HOSE TO AIR CLEANER AND CAB CONSOLE 130-150X13 MM, Replaced By: N000000005892
999
BRACKET ELECTRIC CABLE MOUNTING
999
HOSE
999
BRACKET ENGINE CABLE TO TIGHTENER PULLEY SUPPORT
999
BRACKET ELECTRIC CABLE MOUNTING
999
BRACKET COMPRESSED AIR LINES
999
SCREW BRACKET TO BRACKET, NOT USED
999
SCREW , Replaced By: A4419905201
999
WASHER BRACKET TO FRAME SIDE MEMBER 16/25/4 MM
999
GASKET
999
COVER
999
SCREW , ONLY REPLACEABLE BY THE SET, Replaced By: A4220320171
999
GASKET FLANGE TO PUMP
999
GASKET , Replaced By: A4422010480
999
HOSE , Replaced By: A0119977782
999
LINE , Replaced By: A4030704632
999
LEVER , Replaced By: A4410700321
999
CAP
999
GASKET , Replaced By: A4421410780
999
BRACKET , Replaced By: A3072950840
999
PROTECTIVE PLATE INTERMEDIATE PIECE
999
COVER (AIR INTAKE COVER)
999
PIN CONDENSER TO ALTERNATOR
999
BRACKET CABLE MOUNTING
999
COVER (AIR INTAKE COVER)
999
GASKET
999
HOSE FROM INTAKE PIPE TO EXHAUST GAS TURBOCHARGER
999
RUBBER MOUNTING , Replaced By: A3875040012, +002N000933010106
999
ANGLE LINE MOUNTING
999
SEAL RING , Replaced By: A3529970540
999
SPRINGTO 352 300 00 07
999
REPAIR KIT , Replaced By: A3521802565
999
KNOB , Replaced By: A3523001407
999
RELEASE BEARING , Replaced By: A3402500215
999
GASKET COVER TO THERMOSTAT HOUSING, NOT USED
999
GASKET , Replaced By: A3662030380
999
GASKET , Replaced By: A3522032280
999
GASKET , Replaced By: A3522032080
999
CONNECTOR , Replaced By: A3522030808
999
GASKET , Replaced By: A3522032480
999
GASKET , Replaced By: A3522011680
999
GASKET , Replaced By: A3642010280
999
GASKET , Replaced By: A3525860018
999
PULLEY , Replaced By: A0001557218
999
BUSHING
999
NUT ALTERNATOR
999
CLAMPING BOLT , Replaced By: A3551500372
999
GROUND CABLE , Replaced By: A4031500832
999
GASKET , Replaced By: A3521420480
999
GASKET , Replaced By: A3521420280
999
FITTING , Replaced By: A4032030008
999
INTAKE PIPE , Replaced By: A3521340256
999
GASKET , Replaced By: A3520980980
999
EXHAUST VALVE , Replaced By: A3660500027
999
INTAKE VALVE , Replaced By: A3520500026
999
CYLINDER HEAD GASKET , Replaced By: A3520161820
999
CYLINDER HEAD GASKET , Replaced By: A3520161620
999
CYLINDER HEAD GASKET , Replaced By: A3520161720
999
CYLINDER HEAD GASKET , FIRST EXHAUST STOCK OF OLD PARTS UP TO ENGINE 708084, Replaced By: A3520161320
999
CYLINDER HEAD GASKET , FIRST EXHAUST STOCK OF OLD PARTS UP TO ENGINE 708084, Replaced By: A3520161320
999
GASKET , Replaced By: A3520160921
999
GASKET , Replaced By: A3520160380
999
CYLINDER HEAD GASKET , Replaced By: A3520160720
999
GASKET KIT. GASKET , FIRST EXHAUST STOCK OF OLD PARTS UP TO ENGINE 996747YEAR OF MANUFACTURE 1990, Replaced By: A3660100680
999
GASKET KIT , Replaced By: A3520101980
999
SCREW , ONLY INSTALL 360 990 13 04,SEE SERVICE INFORMATION DATED 15.07.1977,GROUP 03/33, Replaced By: A3609901304
999
GASKET , Replaced By: A3661840080
999
SCREW SUPPORTING ARM TO ENGINE
999
SCREW , Replaced By: N900170012022
999
CLAMPING PIECE TIGHTENER PULLEY TO LEVER
