Поз.
Артикул
Описание

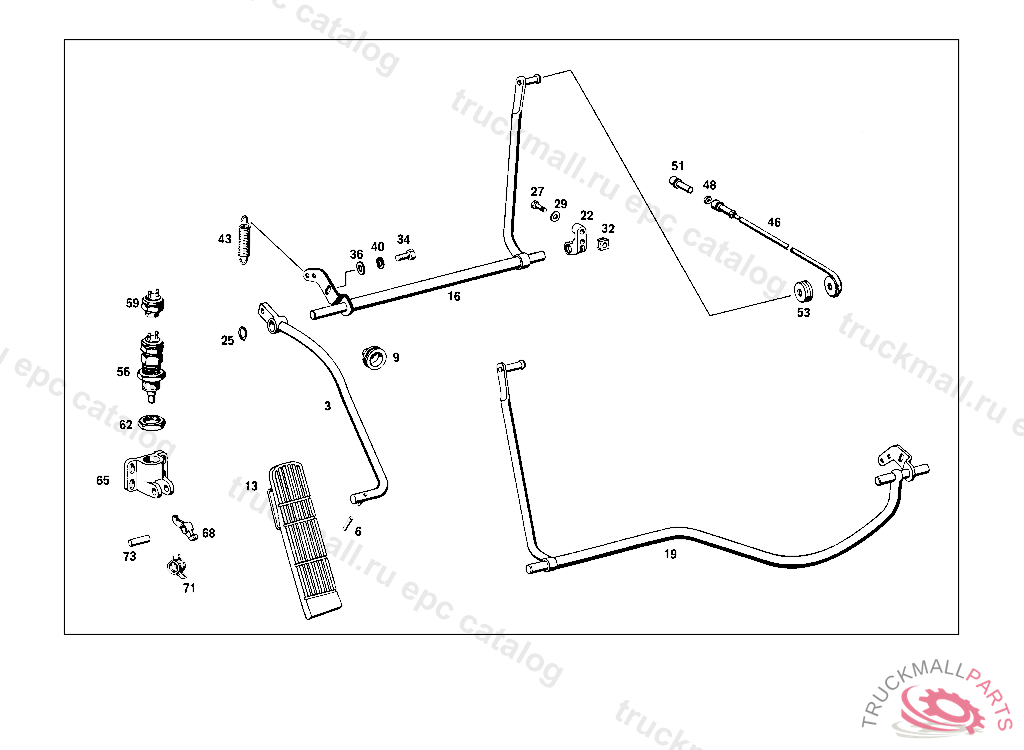

3
ACCELERATOR PEDAL
6
PIN
9
GROMMET
13
PLATE ,014,10/50,12,52 FROM CHASSIS 049462 INSTALLED ON,SEE FOOTN.15,014,20/60,22/62 FROM CHASSIS 049391 INSTALLED ON,SEE FOOTN.16 A ND 20
13
ACCELERATOR PEDAL , Replaced By: A1103000002
16
SHAFT
19
SHAFT
22
BEARING CONTROL SHAFT
25
LOCK RING
27
SCREW PLATE TO VALVE M 6X70
27
SCREW , Replaced By: N304014006005
29
SPRING WASHER LICENSE PLATE TO BRACKET
32
NUT RETAINER LICENSE PLATE TO BRACKET
32
NUT RETAINER , Replaced By: A0019906791
34
SCREW , Replaced By: N304017008016
34
SCREW OIL-DIPSTICK GUIDE TUBE TO BRACKET
36
WASHER EXHAUST MUFFLER TO STRAP
36
WASHER , Replaced By: N000125008443
40
SPRING WASHER , Replaced By: N000137008212
40
SPRING WASHER PROTECTIVE PLATE TO EXHAUST MUFFLER
43
SPRING
46
ROD
48
NUT TACHOGRAPH TO BRACKET
51
BALL SOCKET , Replaced By: A0009918922
51
BALL SOCKETTO 102 070 09 75, Replaced By: A0009930461
53
BOOT
56
STOP
59
SWITCH , UP TO CHASSIS: 011: 12/52 100000 007,008,015,017: 12/52 200000
62
NUT
65
HOUSING
68
LEVER
71
SPRING
73
PIN
999
LOCK WASHER CONTROL LEVER TO INJECTION PUMP LEVER
999
SCREW , Replaced By: N000000001146
999
SCREW CLAMP MOUNTING M 6X16
999
STOP
