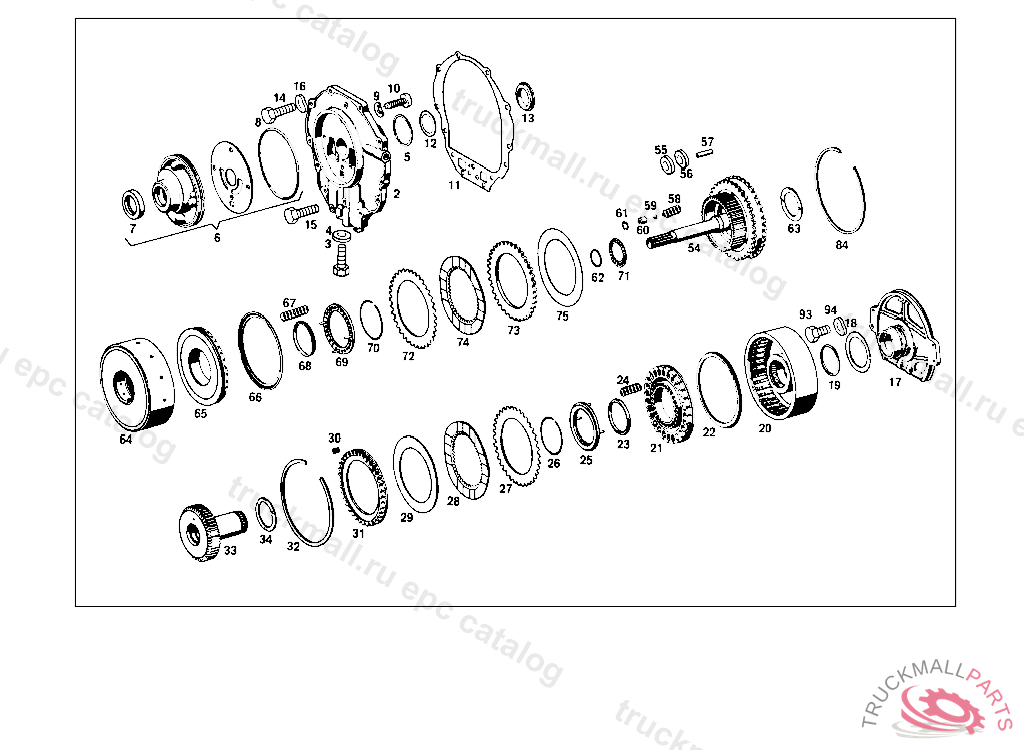

190 C, 200 - 110.001 - 27 MERCEDES-BENZ AUTOMATIC TRANSMISSION

2

COVER , 000,001,004,010,016 FROM TRANSMISSION 001678

3

SCREW PLUG , 021,023 FROM TRANSMISSION 024425

4

SEAL RINGTO 001 431 72 14

5

SEAL RING

6

HOUSING WITH PRIMARY PUMP

7

SEAL RING

8

SEAL RING

8

SEAL RING

9

SPRING WASHER

10

SCREW

11

GASKET

11

GASKET , Replaced By: A1122711380

12

SPACER WASHER0.1 MM, NO LONGER AVAILABLE

12

SPACER WASHER , Replaced By: A1122710052

12

SPACER WASHER 0.5 MM

13

THRUST WASHER

14

SCREW

15

SCREW

16

SPRING WASHER BRACKET TO PEDAL ASSEMBLY BEARING BRACKET, 000,001,004,010 UP TO CHASSIS 064105 EXCEPT FOR, SEE FOOTNOTE 2, 10/50, 20/60, 100,101,104,110 UP TO CHASSIS 099641 EXCEPT FOR , SEE FOOTNOTE 3, ALSO INSTALLED ON 099892

17

FLANGE

18

GUARD PLATE

19

SEAL RING

20

FLANGE , 015 FROM TRANSMISSION 005208

21

PISTON

22

BOOT , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A3162720792

22

BOOT

23

BOOT

24

SPRING

25

SPRING RETAINER

26

SNAP RING

28

INNER DISC

29

GUARD PLATE 0.6 MM

30

SPRING

31

GUARD PLATE , 015 FROM TRANSMISSION 005208

31

GUARD PLATE , 015 FROM TRANSMISSION 005208

32

LOCK

33

DRIVE SHAFT

34

GUARD PLATE , NO LONGER AVAILABLE

54

PLANETARY CARRIER FRONT PLANETARY GEAR TRAIN

55

GUARD PLATE , NO LONGER AVAILABLE

56

GUARD PLATE , NO LONGER AVAILABLE

57

PIN

58

SPRING

59

BALL SHIFTING CYLINDER

60

RING , NO LONGER AVAILABLE

61

LOCK RING

62

SEAL RING DRIVE SHAFT

63

GUARD PLATE , NO LONGER AVAILABLE

64

FLANGE , 015 FROM TRANSMISSION 005208

66

BOOT , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A3162720792

66

BOOT

67

SPRING

68

BOOT

69

SPRING RETAINER

70

SNAP RING

71

NEEDLE BEARING

72

OUTER DISC 2.0 MM

73

OUTER DISC , 012, 014 FROM TRANSMISSION 001945, 015 FROM TRANSMISSION 007429

74

INNER DISC

75

GUARD PLATE 0.6 MM

84

LOCK

93

SCREW , Replaced By: N304017008034

93

SCREW BRACKET TO CROSS CONNECTION STRUT

94

SPRING WASHER GROUND CABLE TO TRANSMISSION

999

HOLLOW SCREW , Replaced By: N915036010108

999

HOLLOW SCREW FUEL LINE TO FEED PUMP

999

LOCK WASHER CONTROL LEVER TO INJECTION PUMP LEVER

999

THREADED INSERT REPAIR SIZE

999

THREADED INSERT REPAIR SIZE

999

THREADED INSERT REPAIR SIZE

999

THREADED INSERT

999

NUT

999

NUT BATTERY MOUNTING

999

SCREW PIPE CLAMP

999

SCREW OIL-DIPSTICK GUIDE TUBE TO BRACKET

999

SCREW COVER PLATE TO COVER PLATE M 6 X 12

999

SCREW PUMP TO BRACKET

999

BULB2W

999

SCREW PLUG FUEL TANK

999

SCREW PLUG , Replaced By: N007604014110

999

SEAL RING

999

SEAL RING

999

WOODRUFF KEY LEVER TO SHAFT

999

NUT

999

NUT , Replaced By: N304032008006

999

NUT CYLINDER TO BRACKET TO0002902112

999

NUT BALL PIVOT TO LEVER

999

NUT TACHOGRAPH TO BRACKET

999

SCREW , Replaced By: A0089907401

999

SCREW , Replaced By: N304017008021

999

SCREW , Replaced By: N304017008034

999

SCREW , Replaced By: N304017008016

999

SCREW

999

SCREW COVER PLATE TO BRACKET

999

SCREW , Replaced By: N304017006018

999

SCREW COVER PLATE TO BRACKET

999

SCREW OIL TANK TO BRACKET

999

SCREW HYDRAULIC CLUTCH TO ENGINE, 021,023 UP TO CHASSIS 086009

999

GROOVED BALL BEARING , 322 UP TO IDENT NO. 036634 EXCEPT FOR 036376,036449,036450,036452-036454 323 UP TO IDENT NO. 006437 328 UP TO IDENT NO. 012103 EXCEPT FOR 011917 L 338 UP TO IDENT NO. 002999 EXCEPT FOR 002938 LP 338 UP TO IDENT NO. 001122 340 UP TO IDENT NO. 000338 EXCEPT FOR 000327,000328

999

LOCK RING SHOCK ABSORBER TO BRACKET,1D 006005

999

SPRING WASHER LICENSE PLATE TO BRACKET

999

SPRING WASHER AT GENERATOR TERMINAL D+, 010,10/50 UP TO CHASSIS 066175,010,12/52 UP TO CHASSIS 067208 EXCEPT FOR 067205,010,20/60 UP TO CHASSIS 065672,010,22/62 UP TOCHASSIS 068683 012,10/50 UP TO CHASSIS 151591 EXCEPT FOR,SEE FOOTNOTE 074,012,12/52 UP TO CHASSIS 153776 EXCEPT FOR 153758,153760,153771 012,20/60 UP TO CHASSIS 148879 EXCEPT FOR 148827,148837,148844,148850,148852,012,22/62 UP TO CHASSIS 158113

999

SPRING WASHER , Replaced By: N000137004202

999

LOCK WASHER TAIL LAMP TO BRACKET

999

LOCK WASHER 3/2-WAY SOLENOID VALVE TO BRACKET

999

WASHER , UP TO CHASSIS: 017 029988 114 000523 117 064694

999

SCREW STEERING COLUMN PANELLING M 5X12

999

SCREW CLAMP MOUNTING

999

SCREW , 015 UP TO TRANSMISSION 005207

999

KNOB , Replaced By: A1112680842

999

PIN

999

FILTER RANGE OF DELIVERY COMPRISES:, 021,023 FROM TRANSMISSION 006751-009935, FROM TRANSMISSION 023011

999

PLUG , 014 FROM TRANSMISSION 000904, 015 FROM TRANSMISSION 006447

999

SCREW PLUG , 014 UP TO TRANSMISSION 000903

999

SPRING , 015 UP TO TRANSMISSION 005207

999

SPRING , NO LONGER AVAILABLE

999

SPRING , TO 112 270 09 07

999

SPRING OUTSIDE, NO LONGER AVAILABLE

999

SPRING

999

SPRING , 015 UP TO TRANSMISSION 005207

999

SPRING , NO LONGER AVAILABLE

999

SPRING , NO LONGER AVAILABLE

999

SPRING , TO 112 270 09 07

999

SPRING , 015 UP TO TRANSMISSION 005207

999

SPRING , NO LONGER AVAILABLE

999

SPRING

999

PIN REPAIR SIZE 5.5 MM, NOT INCLUDED IN RANGE OF DELIVERY 112 270 11 16

999

PROTECTIVE PLATE , 015 UP TO CHASSIS 000665, Replaced By: A1114920430, +001A1104900644

999

PISTON , 043 UP TO TRANSMISSION 002079 NO LONGER AVAILABLE

999

SHIFT VALVE , NO LONGER AVAILABLE

999

BUSHING

999

SHIFT VALVE , 015 UP TO TRANSMISSION 005207

999

SHIFT VALVE , 015 UP TO TRANSMISSION 005207

999

BUSHING , 021,023 UP TO TRANSMISSION 002079

999

PISTON , NO LONGER AVAILABLE 015 UP TO TRANSMISSION 005207

999

SHIFT VALVE , NO LONGER AVAILABLE

999

PIN AS REQUIRED 82 MM

999

PIN AS REQUIRED 81 MM, 015 FROM TRANSMISSION 002756

999

PISTON , NO LONGER AVAILABLE

999

GASKET , 015 UP TO TRANSMISSION 005207

999

COVER , 015 UP TO TRANSMISSION 005207

999

SPRING RETAINER , 015 UP TO TRANSMISSION 005207

999

INTERMEDIATE PLATE , 015 UP TO TRANSMISSION 005207

999

GASKET , Replaced By: A1122772080

999

BUSHING , 015 UP TO TRANSMISSION 005207

999

INSULATING RING

999

INSULATING RING , NO LONGER AVAILABLE

999

PIN , 004995

999

GUARD PLATE , 015 UP TO TRANSMISSION 005207

999

PISTON , NO LONGER AVAILABLE

999

GUARD PLATE , 015 UP TO TRANSMISSION 005207

999

DISC SUPPORT

999

GUARD PLATE , 015 UP TO TRANSMISSION 005207

999

OUTER DISC , 043 UP TO TRANSMISSION 001944, Replaced By: A1122720726, +001A1122721126, +001A1122721226

999

LOCK , 015 UP TO TRANSMISSION 005207

999

OUTER DISC , 021,023 UP TO TRANSMISSION 001944, Replaced By: A1122721126, +001A1122721226

999

LOCK , 015 UP TO TRANSMISSION 005207

999

SPACER WASHER , Replaced By: A1122720352

999

FLANGE , 015 UP TO TRANSMISSION 005207

999

OUTER DISC , 015 UP TO TRANSMISSION 003528, Replaced By: A1092720826, +003A1122720225

999

SPACER WASHER AS REQUIRED 0.1 MM, 015 UP TO TRANSMISSION 005207

999

OUTER DISC , 015 UP TO TRANSMISSION 003528, Replaced By: A1092720826, +003A1122720225

999

GEAR MAIN SHAFT, 015 UP TO TRANSMISSION 005207

999

GUARD PLATE , 015 UP TO TRANSMISSION 005207

999

DISC SUPPORT , 015 UP TO TRANSMISSION 005207

999

FLANGE , 015 UP TO TRANSMISSION 005207

999

FLANGE , 015 UP TO TRANSMISSION 005207, Replaced By: A1122703920, +001A1152721492

999

BRAKE BAND , 015 UP TO TRANSMISSION 004995, Replaced By: A1122702362, +001A1122771074, +002A1122773175

999

GASKET KIT

999

FLANGE , 015 UP TO TRANSMISSION 005207, Replaced By: A1122703920, +001A1152721492

999

PLANETARY CARRIER , 015 UP TO TRANSMISSION 005207

999

VALVE BODY ASSEMBLY , NO LONGER AVAILABLE 015 UP TO TRANSMISSION 005207

999

BRAKE BAND , 015 UP TO TRANSMISSION 004995, Replaced By: A1122702362, +001A1122771074, +002A1122773175

999

VALVE BODY ASSEMBLY , 015 UP TO TRANSMISSION 005207

999

BRAKE BAND , 015 UP TO TRANSMISSION 004995, Replaced By: A1122702362, +001A1122771074, +002A1122773175

999

LEVER , 004266, Replaced By: A1122700556, +001A1122700656, +002N000125006407, +002N000137006200, +002N000933006077, +002N000934006006

999

REGULATOR VALVE , NO LONGER AVAILABLE

999

DRIVE SHAFT , 015 UP TO TRANSMISSION 005207

999

BREATHER REPAIR SIZE, 012, 014 UP TO TRANSMISSION 006059, 015 UP TO TRANSMISSION 008636

999

LEVER , 004266, Replaced By: A1122700556, +001A1122700656, +002N000125006407, +002N000137006200, +002N000933006077, +002N000934006006

999

DRIVE SHAFT

999

HOUSING , 015 UP TO TRANSMISSION 005207

999

GEAR INDICATOR , UP TO CHASSIS 088724

999

FLANGE , 015 UP TO TRANSMISSION 005207, Replaced By: A1122703920, +001A1152721492

999

COVER , 000,001,004,010,016 UP TO TRANSMISSION 001677, Replaced By: A1102700105, +001A1109970330, +001N007603012104

999

GASKET KIT , Replaced By: A1122701800

999

SLOTTED GATE , 000,001,004,010 UP TO CHASSIS 096131, 100,101,104,110 UP TO CHASSIS 156041

999

SHIFTING SEGMENT , 000,001,004,010 UP TO CHASSIS 096131, 100,101,104,110 UP TO CHASSIS 156041

999

SHIFTING SEGMENT , 000,001,004,010 UP TO CHASSIS 096131, 100,101,104,110 UP TO CHASSIS 156041

999

BEARING BRACKET , 000,001,004,010 UP TO CHASSIS 130557, 100,101,104,110 UP TO CHASSIS 225647

999

SHIFTING TUBE , 000,001,004,010 UP TO CHASSIS 130557, 100,101,104,110 UP TO CHASSIS 225647

999

LEVER , 000,001,004,010 UP TO CHASSIS 130557, 100,101,104,110 UP TO CHASSIS 225647

999

GUIDE PLATE , 000,001,004,010 UP TO CHASSIS 096131, 100,101,104,110 UP TO CHASSIS 156041

999

PROTECTIVE PLATE , 015 UP TO CHASSIS 000665, Replaced By: A1114920430, +001A1104900644

999

PROTECTIVE PLATE , 000,001,004,010,016 UP TO CHASSIS 130557

999

GUARD PLATE , 008596-015979

999

PISTON , 000,001,004,010,016 UP TO TRANSMISSION 003600

999

BOOT , 000,001,004,010,016 UP TO TRANSMISSION 003600

999

LINE

999

FLANGE , 000,001,004,010,016 UP TO TRANSMISSION 003600
