Mercedes A0009913471 - Клипсаclip

SL 400 231.465

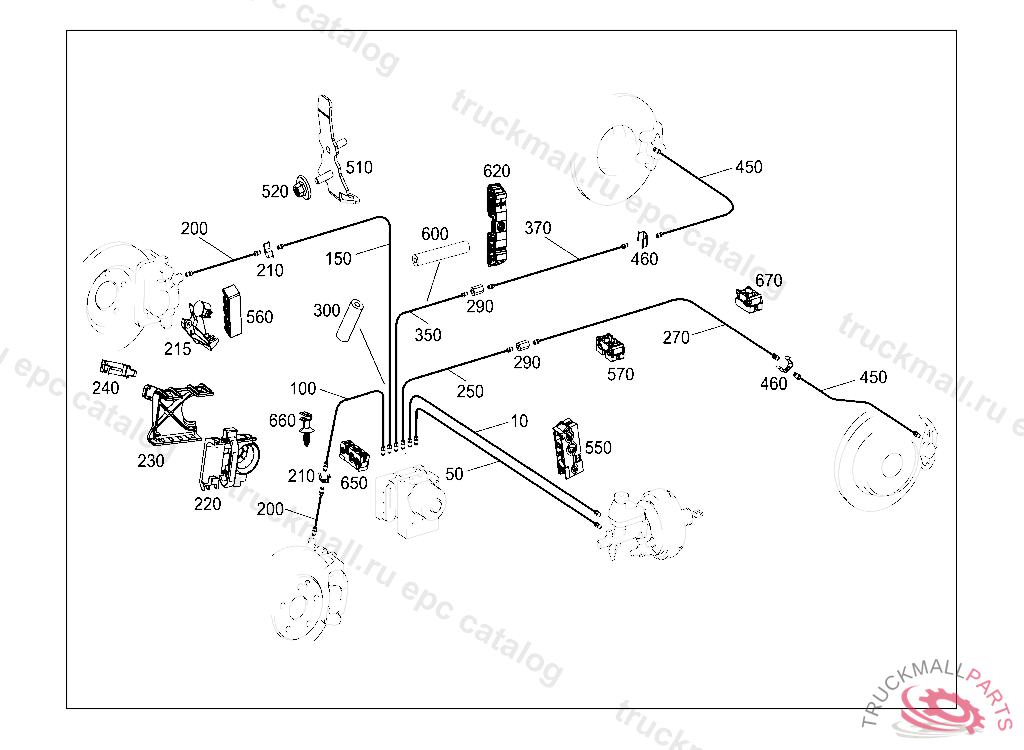

42 BRAKES - 090 BRAKE LINES
  • Поз.
    Артикул
    Описание
  • 10
    BRAKE LINE MASTER BRAKE CYLINDER 1 TO HYDRAULIC UNIT
  • 10
    BRAKE LINE MASTER BRAKE CYLINDER 1 TO HYDRAULIC UNIT
  • 50
    BRAKE LINE MASTER BRAKE CYLINDER 2 TO HYDRAULIC UNIT
  • 50
    BRAKE LINE MASTER BRAKE CYLINDER 2 TO HYDRAULIC UNIT
  • 100
    LINE FROM PRESSURE RETAINING VALVE TO LEFT REAR BRAKE HOSE 2655 MM
  • 150
    LINE FROM BRAKE POWER REGULATOR TO LEFT FRONT WHEEL
  • 200
    BRAKE HOSE FRONT RIGHT
  • 200
    BRAKE HOSE FRONT RIGHT
  • 210
    RETAINING SPRING BRAKE HOSE TO BRACKET
  • 215
    BRACKET BRAKE HOSE AND ELECTRICAL LINES TO STEERING KNUCKLE AT RIGHT
  • 215
    BRACKET BRAKE HOSE AND ELECTRICAL LINES TO STEERING KNUCKLE AT LEFT
  • 220
    BRACKET BRACKET TO TORSION BAR,RIGHT
  • 220
    BRACKET BRACKET TO TORSION BAR,LEFT
  • 230
    BRACKET RIGHT FRONT BRAKE HOSE
  • 230
    BRACKET LEFT FRONT BRAKE HOSE
  • 240
    CLIP BRACKET TO TORSION BAR,RIGHT
  • 250
    LINE , UP TO CHASSIS: 017 062832, FEDERAL, EXCEPT FOR: 059499,060650,061519,061527,062799. 017 062926, CALIFORNIA, EXCEPT FOR 048629,060112,062772 114 029141, EXCEPT FOR: 002250,003131,016950,026317,026334,026513,027268,027269,027272,027281,027513,027518,027822,027824, 028251,029032,029113,029121,029128. 117 10/50 102742, EXCEPT FOR: 098668,099672,100535,100850,100851,101663,102380,102507,102622,102708,102717. 117 12/52 102758, EXCEPT FOR: 088215,099223,099235,099370,099371,099673,100542,101165,101171,101246,102475,102643,102651,102724.
  • 270
    LINE FROM ADAPTER FITTING TO DISTRIBUTOR
  • 290
    ADAPTER FITTING BETWEEN THE LINES
  • 300
    HOSE4.5X10X900MM
  • 350
    LINE FROM DISTRIBUTOR TO LEFT WHEEL BRAKE CYLINDER 1165 MM
  • 370
    LINE FROM BRAKE MASTER CYLINDER TO DISTRIBUTOR, INAPPLICABLE TO ANTI-LOCK BRAKING SYSTEM (ABS)
  • 450
    BRAKE HOSE REAR RIGHT
  • 460
    RETAINING SPRING BRAKE HOSE TO BRACKET
  • 510
    BRACKET BRAKE LINE TO PARTITION PANEL
  • 520
    PLASTIC NUT COVER AT LOAD COMPARTMENT WELL
  • 520
    PLASTIC NUT BRACKET TO PARTITION WALL FASTENING
  • 550
    LINE FASTENER BRAKE LINE TO SUSPENSION STRUT TOWER AT RIGHT
  • 560
    SPACER FASTENING, BRAKE LINES AT HYDRAULIC UNIT
  • 570
    LINE FASTENER FOR REAR WHEELS BRAKE LINE AT MAIN FLOOR
  • 600
    HOSE4.5X10X900MM
  • 620
    LINE FASTENER FUEL AND BRAKE LINES TO MAIN FLOOR,LEFT
  • 650
    LINE FASTENER BRAKE LINE TO SUSPENSION STRUT TOWER AT RIGHT
  • 660
    LINE FASTENER BRAKE LINE TO SUSPENSION STRUT TOWER AT RIGHT
  • 670
    LINE FASTENER FOR BRAKE LINE, REAR WHEEL AT LEFT TO REAR-END FLOOR
