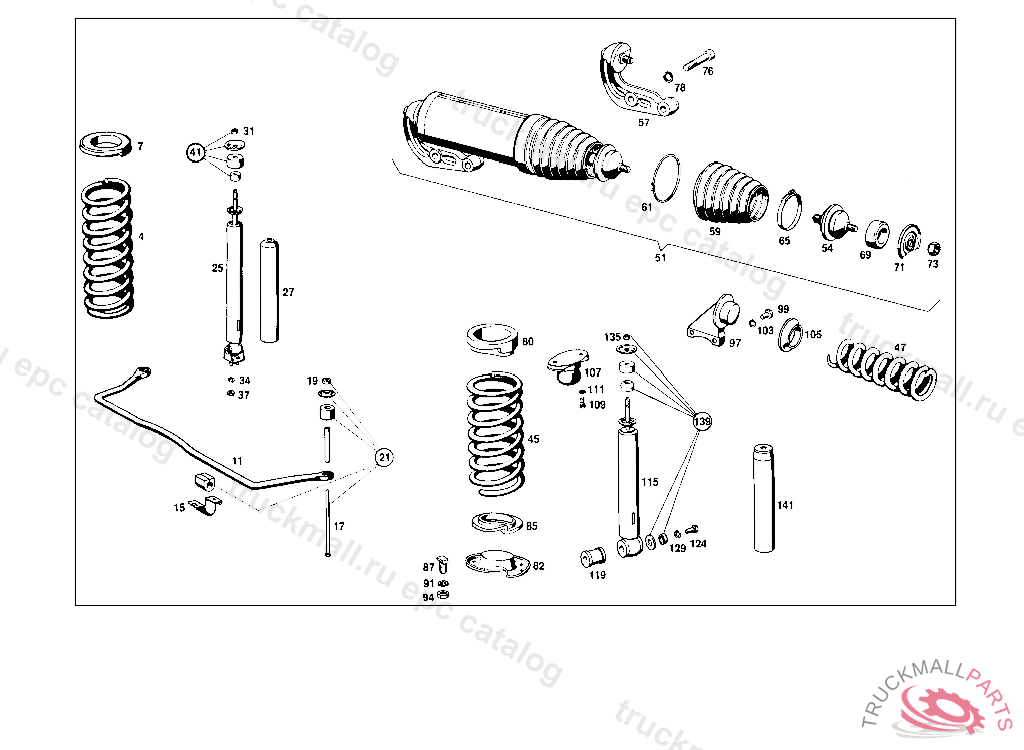

Поз.
Артикул
Описание
7
RUBBER MOUNTING 20.0 MM
11
TORSION BAR , 000,001 UP TO CHASSIS 130557, 100,101 UP TO CHASSIS 225647
15
BRACKET
17
SCREW
19
NUT BRACKET TO SIDE MEMBER,303382
21
REPAIR KIT , 000,001 UP TO CHASSIS 130557, 100,101 UP TO CHASSIS 225647
27
DUST CAP
31
NUT SHIFT LEVER HANDLE TO SHIFT LEVER
31
NUT , Replaced By: N308673010000
34
LOCK WASHER TAIL LAMP TO BRACKET
37
NUT
37
NUT , Replaced By: N304032008006
41
REPAIR KIT
51
HYD.PNEUM.SPRING LEG ASSY
54
BALL JOINT LEFT, 010,011,016,017,110,116 ON SPECIAL REQUEST, H.D. SPRINGS AND HYDROPNEUMATIC COMPENSATING SPRING
57
BALL JOINT
59
BOOT , 000,001,004,010,016 FROM CHASSIS 134952, 100,101,104,110,116 FROM CHASSIS 233249, 002,003,005,011,017 FROM CHASSIS 001796
61
LOCK WASHER
65
CLAMP AT SHIFTING TUBE
69
BEARING RING
71
WASHER
73
NUT
76
SCREW , 010,011,016,017,110,116 ON SPECIAL REQUEST, HYDROPNEUMATIC COMPENSARING SPRING, ON SPECIAL REQUEST, H.D. SPRINGS AND HYDROPNEU MATIC COMPENSATING SPRING
78
LOCK WASHER FITTING TO BRACKET
80
BUSHING
80
BUSHING
80
BUSHING
82
SPRING CASE
85
BUSHING
87
SCREW
91
LOCK WASHER TAIL LAMP TO BRACKET
94
NUT
94
NUT , Replaced By: N304032008006
97
BRACKET RIGHT, 000,001 UP TO CHASSIS 130557, 100,101 UP TO CHASSIS 225647
99
SCREW , 000,001 UP TO CHASSIS 130557, 100,101 UP TO CHASSIS 225647
103
LOCK WASHER FITTING TO BRACKET
105
RUBBER RING , 000,001 UP TO CHASSIS 130557, 100,101 UP TO CHASSIS 225647
107
RUBBER BUFFER , 000,001 UP TO CHASSIS 018992, 100,101 UP TO CHASSIS 026467
109
SCREW CLAMP TO BRACKET AND TO PIPE
111
SPRING WASHER PROTECTIVE PLATE TO EXHAUST MUFFLER
111
SPRING WASHER , Replaced By: N000137008212
119
RUBBER MOUNTING
124
HEXAGON HEAD BOLT RUBBER MOUNTING TO SIDE MEMBER AND TO SUPPORT M10X20
124
SCREW , Replaced By: N304017010028
129
LOCK WASHER BRACKET TO SUPPORT AND TO END PIECE
135
NUT SHIFT LEVER HANDLE TO SHIFT LEVER
135
NUT , Replaced By: N308673010000
139
REPAIR KIT
999
RUBBER MOUNTING
999
LOOM TIE , 000,001,004,010,016 UP TO CHASSIS 134951, 100,101,104,110,116 UP TO CHASSIS 233248, 002,003,005,011,017 UP TO CHASSIS 001795, Replaced By: N900288062014, +001A1103290392
999
LOOM TIE. CLAMP HOSE FASTENING
999
SHOCK ABSORBER
999
LOCK
999
RUBBER MOUNTING TORSION BAR TO FRAME FLOOR UNIT
999
TORSION BAR , 000,001,004 FROM CHASSIS 130558-154870, 100,101,104 FROM CHASSIS 225648-272900, 002,003,005 UP TO CHASSIS 013575, Replaced By: A1093230465, +002A1093230085
999
TORSION BAR FRONT
999
REPAIR KIT TORSION BAR,FRONT
999
REPAIR KIT , 010 ON SPECIAL REQUEST, HARDER SPRINGS 001 SPECIAL BODIES 000 AMBULANCE
999
RUBBER BUFFER , 000,001 FROM CHASSIS 018993, 100,101 FROM CHASSIS 026468
999
FRONT SPRING
999
RUBBER MOUNTING BOTTOM
999
REAR SPRING
999
REAR SPRING DIA., 18.40 MM, 001 UP TO CHASSIS 130557, 101 UP TO CHASSIS 225647
999
REAR SPRING
999
SUPPORTING SHELL , 000,001 FROM CHASSIS 018993, 100,101 FROM CHASSIS 026468
999
RETAINER
999
SHOCK ABSORBER , 001 SPECIAL BODIES 000 AMBULANCE
999
RUBBER RING , 000,001 UP TO CHASSIS 130557, 100,101 UP TO CHASSIS 225647
999
BOOT , 000,001,004,010,016 UP TO CHASSIS 134951, 100,101,104,110,116 UP TO CHASSIS 233248, 002,003,005,011,017 UP TO CHASSIS 001795, Replaced By: A1103290392, +001N900288062000
999
COMPENSATING SPRING DIA., 16.20 MM, 001 UP TO CHASSIS 130557, 101 UP TO CHASSIS 225647
999
WASHER
999
HYDROPNEUM.COMPENS.SPRING , 000,001 UP TO CHASSIS 130557, 100,101 UP TO CHASSIS 225647
999
FRONT SPRING DIA., 16.50 MM, 100,101,110 UP TO CHASSIS 030137 EXCEPT FOR 015977-018594, 110 ON SPECIAL REQUEST,HARDER SPRING SUSPENSION
999
RUBBER MOUNTING 22.5 MM
999
RUBBER MOUNTING 25.0 MM
999
RUBBER MOUNTING 27.5 MM
999
RUBBER MOUNTING 30.0 MM
999
RUBBER MOUNTING 32.5 MM
999
RUBBER BUFFER
999
RETAINER
999
SPACER TUBE
999
RETAINER , Replaced By: A1233230367
999
RETAINER FRONT SHOCK ABSORBERS TO FRAME
999
RUBBER BUFFER
999
SCREW , 000,001,004,010,016 UP TO CHASSIS 134951, 100,101,104,110,116 UP TO CHASSIS 233248, 002,003,005,011,017 UP TO CHASSIS 001795
999
NUT , Replaced By: N308673010000
999
CLAMP , Replaced By: A0069972690
