Поз.
Артикул
Описание

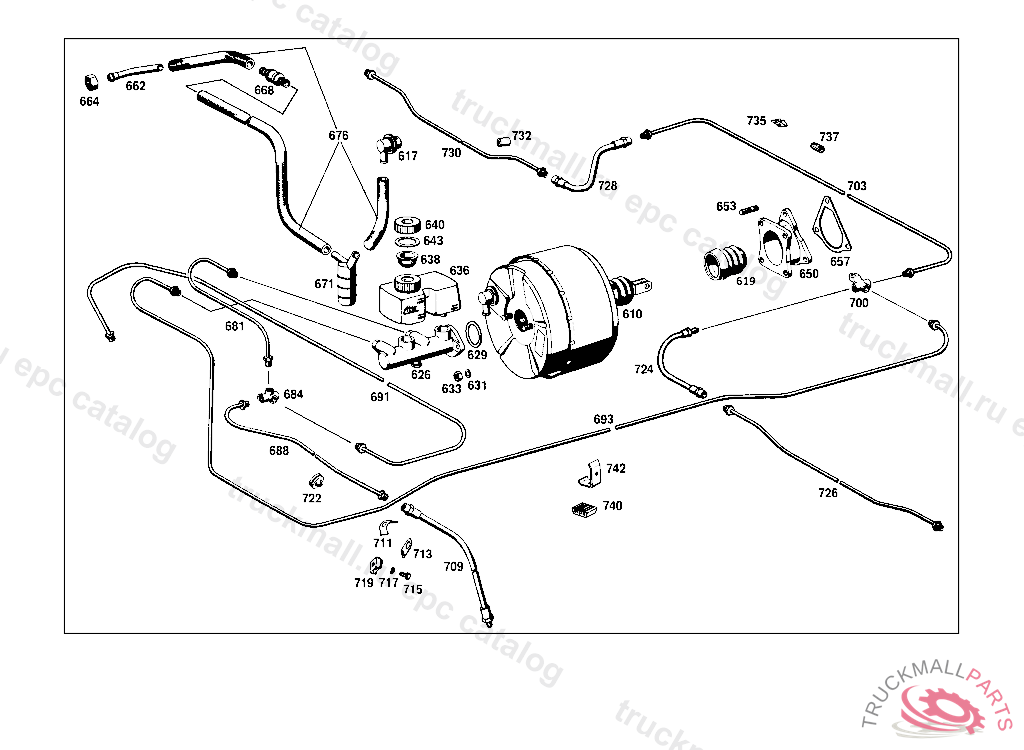

610
BRAKE BOOSTER ASSEMBLY T 51/200, ON SPECIAL REQUEST
617
CONNECTION HOUSING , FROM CHASSIS005298
619
PROTECTIVE CAPTO 001 430 36 30,002 430 27 30
626
BRAKE MASTER CYLINDER , 000,001,010 UP TO CHASSIS 106921,100,101,110 UP TO CHASSIS 178056, Replaced By: A0014306301, +001A0009975030
629
SEAL RING
631
LOCK WASHER
633
NUT
636
RESERVOIR
638
STRAINER
640
FILLER CAP BUTTRESS THREAD
643
SEAL RING
650
FLANGE , Replaced By: A1084300145, +001A1084310080
653
STUD , NOT FOR USE WITH MERCEDES-BENZ HYDRAULIC-AUTOMATIC CLUTCH
657
GASKET , 000,001,004,010,016 FROM CHASSIS 079284, 100,101,104,110,116 FROM CHASSIS 124610
662
LINE
664
UNION NUT , NOT FOR USE WITH MERCEDES-BENZ HYDRAULIC-AUTOMATIC CLUTCH
668
VALVE (CHECK VALVE)
671
TRAP
676
HOSE 240 MM, ORDER BY THE METER
681
LINE FROM DISTRIBUTOR TO REAR LEFT BRAKE HOSE, FROM CHASSIS: 005,007,008,015,017 154396 011 022325 060 018681 062 013421
684
DISTRIBUTOR FRONT, 000,001,010 UP TO CHASSIS 106921,100,101,110 UP TO CHASSIS 178056
688
LINE TO RIGHT FRONT WHEEL, 000,001,010 UP TO CHASSIS 107476,100,101,110 UP TO CHASSIS 179099
691
LINE FROM MASTER CYLINDER TO FRONT RIGHT BRAKE HOSE, INAPPLICABLE TO ANTI-LOCK BRAKING SYSTEM (ABS)
693
LINE FROM VALVE TO RIGHT REAR WHEEL 3450 MM
700
DISTRIBUTOR
703
LINE FROM HEIGHT CONTROL VALVE TO LEFT SPRING-LOAD ACCUMULATOR
709
BRAKE HOSE FRONT
711
RETAINING SPRING BRAKE HOSE TO BRACKET
713
LOCK
715
SCREW COVER PLATE TO COVER PLATE M 6 X 12
715
SCREW , Replaced By: N304017006018
717
SPRING WASHER LICENSE PLATE TO BRACKET
719
NUT RETAINER , Replaced By: A0019906791
719
NUT RETAINER LICENSE PLATE TO BRACKET
722
GROMMET FOR PASSAGE OF LINE, UP TO IDENT NO. 5 033766,ALSO INSTALLED ON 5 039977
724
BRAKE HOSE LEFT
726
LINE
728
BRAKE HOSE REAR, 055234
728
BRAKE HOSE , Replaced By: A0004282635
730
LINE FROM SPRING LOAD ACCUMULATOR TO RIGHT DISTRIBUTOR
732
BUFFER
735
CLIP
737
HOSE 25 MM, ORDER BY THE METER
740
BRAKE CABLE LINE MOUNTING
742
BRACKET
999
BLEEDER VALVE TO 000 421 08 98,000 421 09 98,000 421 18 98,000 421 19 98 3/8"
999
BLEEDER VALVEBENDIX
999
LOCK , Replaced By: A0004210573
999
LOCK , Replaced By: A0004210573
999
PROTECTIVE PLATE
999
LOCKBENDIX
999
CALIPER ,026650003281, Replaced By: A0004214598, +001A1114206628
999
CALIPER ,026650003281, Replaced By: A0004214698, +001A1114206728
999
CUP SEE REPAIR KIT, 014 FROM CHASSIS 026841 INSTALLED ON 026639,026839
999
BLEEDER VALVE WITH INCH THREAD 3/8"
999
SPRING
999
CALIPER , 021 FROM CHASSIS 026651 UP TO CHASSIS 040634 NOT INSTALLED ON,SEE FOOTN.103 INSTALLED ON,SEE FOOTN.104003282 UP TO FRONT AXLE 040870 INSTALLED ON 055962-056414, Replaced By: A0004214598, +001A1114206428
999
CALIPER , 012 UP TO CHASSIS 094381 ALSO INSTALLED ON 103498-103884, Replaced By: A0004214998, +001A1114206528, +001A0005862742
999
CALIPER , 012 UP TO CHASSIS 094382 EXCEPT FOR 103498-103884, Replaced By: A0004214898, +001A0005862742
999
CALIPER , 012 UP TO CHASSIS 094382 EXCEPT FOR 103498-103884, Replaced By: A0004214998, +001A0005862742
999
PISTON , USED FOR GIRLING THREE-PISTON BRAKE CALIPER
999
PISTON , USED FOR GIRLING THREE-PISTON BRAKE CALIPER
999
PISTON
999
CALIPER , Replaced By: A0004216498, +001A0005862742
999
CALIPER , Replaced By: A0004216598, +001A0005862742
999
CALIPER , 000,001,004,010,016 UP TO CHASSIS 189498,002,003,005,011,017 UP TO CHASSIS 032999,100,101,104,110,116 UP TO CHASSIS 355413, Replaced By: A0014210298, +001A0014210398
999
CALIPER , 000,001,004,010,016 UP TO CHASSIS 189498,002,003,005,011,017 UP TO CHASSIS 032999,100,101,104,110,116 UP TO CHASSIS 355413, Replaced By: A0014210398, +001A0014210298
999
FILLER SEE REPAIR KIT, 014 FROM CHASSIS 026841 INSTALLED ON 026639,026839
999
SPRING SEE REPAIR KIT, 014 FROM CHASSIS 026841 INSTALLED ON 026639,026839
999
PISTON SEE REPAIR KIT, 014 FROM CHASSIS 026841 INSTALLED ON 026639,026839
999
DISTRIBUTOR , Replaced By: A0004283624
999
BRAKE HOSE FRONT LEFT AND RIGHT,026650
999
DISTRIBUTOR FRONT, 000,001,010 UP TO CHASSIS 107476,100,101,110 UP TO CHASSIS 179099
999
PISTON SEE REPAIR KIT
999
PISTON SEE REPAIR KIT
999
VALVE SEE REPAIR KIT
999
PISTON SEE REPAIR KIT
999
VALVE SEE REPAIR KIT
999
VALVE , 000,001,010 UP TO CHASSIS 096157,100,101,110 UP TO CHASSIS 156101, Replaced By: A0004303681, +001A0004313607
999
BRAKE BOOSTER ASSEMBLY , 010,10/50,12/52 UP TO CHASSIS 060921, 10,20/60,22/62 UP TO CHASSIS 061081,012,10/50,12/52 UP TO CHASSIS 135192,012,20/60,22/62UP TO CHASSIS 135465 NOT FOR USE WITH MERCEDES-BENZ HYDRAULIC-AUTOMATIC CLUTCH, Replaced By: A0004305530, +001A0004313607
999
FILLER RING SEE REPAIR KIT
999
FILLER RING SEE REPAIR KIT
999
FILLER RING SEE REPAIR KIT
999
CUP SEE REPAIR KIT
999
CUP SEE REPAIR KIT
999
CUP SEE REPAIR KIT
999
CUP SEE REPAIR KIT
999
CUP SEE REPAIR KIT
999
CUP SEE REPAIR KIT
999
LINE , Replaced By: A0004350325, +001A0004350213
999
PISTON , Replaced By: A0004350907, +001A0009930725
999
PISTON , Replaced By: A0004350807, +001A0009930625
999
REPAIR KIT RESERVOIR TO MASTER CYLINDER
999
REPAIR KIT RESERVOIR TO MASTER CYLINDER
999
REPAIR KIT
999
REPAIR KIT , 000,001,010 FROM CHASSIS,ALSO INSTALLED ON,SEE FOOTN.2,100,101,110 FROM CHASSIS 099642,ALSO INSTALLED ON,SEE FOOTN.3,EXCEPT FOR 099892
999
REPAIR KIT (GASKET KIT),BRAKE BOOSTER TO 000 430 23 30
999
REPAIR KIT
999
REPAIR KIT MINOR,BRAKE BOOSTER TO 000 430 23 30
999
REPAIR KIT , NO LONGER AVAILABLE
999
REPAIR KIT MINOR,BRAKE BOOSTER TO 000 430 26 30
999
REPAIR KIT , USED FOR GIRLING THREE-PISTON BRAKE CALIPER
999
BANJO UNION VACUUM CONNECTION, 012 FROM CHASSIS 070638 010 UP TO CHASSIS 042371,012 UP TO CHASSIS 091160
999
NUT RETAINER , Replaced By: A0019906791
999
NUT RETAINER REGULATOR AND CUT-OUT, FOR VEHICLES HAVING LOW CAB 344 ON CAB 344
999
DOWEL PIN , Replaced By: A0009912660, +001A0004210573
999
CLAMP
999
SEAL RING , NO LONGER AVAILABLE INDIVIDUALLY,BUT ONLY ON REPAIR KIT
999
SCREW PLUG , Replaced By: N007604010102, +001N007603010107
999
BRAKE PAD PARTS KIT, USED FOR GIRLING THREE-PISTON BRAKE CALIPER
999
CALIPER , 000,001,004,010,016 FROM CHASSIS 189499,002,003,005,011,017 FROM CHASSIS 033000,100,101,104,110,116 FROM CHASSIS 355414, Replaced By: A0014218198, +001A0004206720
999
CALIPER , 000,001,004,010,016 FROM CHASSIS 189499,002,003,005,011,017 FROM CHASSIS 033000,100,101,104,110,116 FROM CHASSIS 355414, Replaced By: A0014218298, +001A0004206720
999
CALIPER LEFT,BENDIX,LESS LINING, IN PAIRS OPTIONAL WITH
999
CALIPER RIGHT,BENDIX,LESS LINING, IN PAIRS OPTIONAL WITH
999
CALIPER LEFT,LESS PAD ASSEMBLIES, TEVES, IN PAIRS OPTIONAL W/000 421 73 98,BENDIX, FROM CHASSIS: 010 094997 110 244251
999
CALIPER RIGHT,TEVES,LESS LINING, IN PAIRS OPTIONAL WITH, 000,001,004,010,016 FROM CHASSIS 189499,002,003,005,011,017 FROM CHASSIS 033000,100,101,104,110,116 FROM CHASSIS 355414
999
BRAKE MASTER CYLINDER 23,81 MM, 000,001,010 FROM CHASSIS 107477,100,101,110 FROM CHASSIS 179100
999
REPAIR KIT BENDIX, 005,007,008,015,017 203606 011 014721
999
REPAIR KIT BRAKE MASTER CYLINDER TO 000 430 89 01
999
REPAIR KIT BRAKE MASTER CYLINDER TO 001 430 11 01
999
REPAIR KIT BRAKE BOOSTER ASSEMBLY TO 000 430 23 30
999
REPAIR KIT
999
REPAIR KIT BRAKE BOOSTER ASSEMBLY TO 000 430 26 30
999
REPAIR KIT , 000,001,010 UP TO CHASSIS 107476,100,101,110 UP TO CHASSIS 179099
999
REPAIR KIT
999
WHEEL BRAKE CYLINDER19.05 MM, 000,001,010 FROM CHASSIS,ALSO INSTALLED ON,SEE FOOTN.2,100,101,110 FROM CHASSIS 099642,ALSO INSTALLED ON,SEE FOOTN.3,EXCEPT FOR 099892
999
FLANGE
999
LINE FROM BOTTOM OF BRAKE MASTER CYLINDER TO LEFT FRONT WHEEL, 010,10/50,12/52 FROM CHASSIS 064207,010,20/60,22/62 FROM CHASSIS 063880,012,10/50,12/52 FROM CHASSIS 145390,012,20/60,22/62 FR OM CHASSIS 144454 NOT FOR USE WITH MERCEDES-BENZ HYDRAULIC-AUTOMATIC CLUTCH
999
BRAKE LEVER RIGHT, 000,001,010 UP TO CHASSIS 013483,100,101,110 UP TO CHASSIS 018847
999
BRAKE LEVER , Replaced By: A1124200412, +001A1104270712, +001N000125010504
999
BRAKE LEVER RIGHT, 000,001,010 FROM CHASSIS 013484,100,101,110 FROM CHASSIS 018848
999
BRAKE LEVER , 000,001,010 FROM CHASSIS 013484,100,101,110 FROM CHASSIS 018848
999
BRAKE SHOE , Replaced By: A1104202620
999
BRAKE SHOE , Replaced By: A1104202720
999
BRAKE SHOE WITH LINING, 000,001,010 FROM CHASSIS 013484,100,101,110 FROM CHASSIS 018848
999
BRAKE ANCHOR PLATE RIGHT, 000,001,010 UP TO CHASSIS 013483,100,101,110 UP TO CHASSIS 018847
999
BRAKE SHOE WITH LINING, 000,001,010 FROM CHASSIS 013484,100,101,110 FROM CHASSIS 018848
999
BRAKE ANCHOR PLATE RIGHT, 000,001,010 FROM CHASSIS 013484,100,101,110 FROM CHASSIS 018848
999
LINE FROM COUPLING TO REAR DISTRIBUTOR, 000,001,010 UP TO CHASSIS 130557,100,101,110 UP TO CHASSIS 225647
999
GUIDE , 000,001,010 UP TO CHASSIS 003843,100,101,110 UP TO CHASSIS 004760, Replaced By: A1104270312, +001A1104270231, +002N000961010002
999
SPACER TUBE , 000,001,004,010,016 FROM CHASSIS 173830,002,003,005,011,017 FROM CHASSIS 023376,100,101,104,110,116 FROM CHASSIS 317270
999
GUIDE , 000,001,010 FROM CHASSIS 003844-059168,100,101,110 FROM CHASSIS 004761-090670
999
CABLE PULLEY , 000,001,004,010,016 FROM CHASSIS 173830,002,003,005,011,017 FROM CHASSIS 023376,100,101,104,110,116 FROM CHASSIS 317270
999
FLANGE
999
GASKET , 000,001,004,010,016 FROM CHASSIS 079284, 100,101,104,110,116 FROM CHASSIS 124610
999
SCREW , 000,001,010 UP TO CHASSIS 003843,100,101,110 UP TO CHASSIS 004760
999
SPRING , FOR UNDERSHIELD,ON SPECIAL REQUEST
999
PROTECTIVE PLATE , 000,001,010UP TO CHASSIS 089080,100,101,110 UP TO CHASSIS 142521, Replaced By: A1114200444, +001A1119940532, +001N000912006039
999
REPAIR KIT
999
PROTECTIVE PLATE , 000,001,010UP TO CHASSIS 089080,100,101,110 UP TO CHASSIS 142521, Replaced By: A1114200544, +001A1119940532, +001N000912006039
999
PROTECTIVE PLATE LEFT, 000,001,010 FROM CHASSIS 089081,100,101,110 FROM CHASSIS 142522
999
PROTECTIVE PLATE RIGHT, 000,001,010 FROM CHASSIS 089081,100,101,110 FROM CHASSIS 142522
999
BEARING BRACKET FOR BRAKE CABLE GUIDE,CENTRAL BRAKE CABLE, 012 UP TO CHASSIS 076355 NOT FOR USE WITH MERCEDES-BENZ HYDRAULIC-AUTOMATIC CLUTCH
999
BEARING BRACKET , 012 UP TO CHASSIS 076355 NOT FOR USE WITH MERCEDES-BENZ HYDRAULIC-AUTOMATIC CLUTCH
999
BRAKE CABLE FRONT, 010 FROM CHASSIS 023661 ALSO INSTALLED ON 023626-023628,023631,023633,023636,023639,023640,023642-023644,023646-023649,023651- 023659
999
LINE REAR, UP TO CHASSIS 012803 NOT INSTALLED ON,SEE FOOTN.100
999
LINE , Replaced By: A1114203128
999
LINE REAR, FROM CHASSIS 012804-026650 INSTALLED ON,SEE FOOTN.100
999
BRAKE CABLE FRONT, 010 FROM CHASSIS 023661 ALSO INSTALLED ON 023626-023628,023631,023633,023636,023639,023640,023642-023644,023646-023649,023651- 023659
999
LINE RIGHT, UP TO CHASSIS 012803 NOT INSTALLED ON,SEE FOOTN.100
999
LINE FROM DISTRIBUTOR TO LEFT FRONT WHEEL,026650
999
LINE , Replaced By: A1114203028
999
LINE RIGHT, FROM CHASSIS 012804-026650 INSTALLED ON,SEE FOOTN.100
999
LINE , Replaced By: A1234205528
999
LINE LEFT, 012 UP TO CHASSIS 094381 ALSO INSTALLED ON 103498-103884
999
LINE RIGHT, 021 FROM CHASSIS 026651 UP TO CHASSIS 040634 NOT INSTALLED ON,SEE FOOTN.103 INSTALLED ON,SEE FOOTN.104
999
LINE LEFT TO 000 421 26 98,000 421 45 98, 021 FROM CHASSIS 026651 UP TO CHASSIS 040634 NOT INSTALLED ON,SEE FOOTN.103 INSTALLED ON,SEE FOOTN.104
999
LINE RIGHT, 012 UP TO CHASSIS 094381 ALSO INSTALLED ON 103498-103884 ONLY FOR USE ON REPLACEMENT DELIVERY OF 000 421 49 98,IN PLACE OF 000 421 19 98,CALIPER
999
LINE LEFT TO 000 421 26 98,000 421 45 98, FROM CHASSIS 012804-026650 INSTALLED ON,SEE FOOTN.100
999
LINE RIGHT TO 000 421 27 98,000 421 46 98, FROM CHASSIS 012804-026650 INSTALLED ON,SEE FOOTN.100
999
LINE , Replaced By: A1094201828
999
PROTECTIVE PLATE , UP TO CHASSIS 012803 NOT INSTALLED ON,SEE FOOTN.100, Replaced By: A1114210820, +001A1114203028
999
PROTECTIVE PLATE , UP TO CHASSIS 012803 NOT INSTALLED ON,SEE FOOTN.100, Replaced By: A1114210920, +001A1114203128
999
PROTECTIVE PLATE LEFT, 012 UP TO CHASSIS 094381 ALSO INSTALLED ON 103498-103884
999
PROTECTIVE PLATE RIGHT, 021 FROM CHASSIS 026651 UP TO CHASSIS 040634 NOT INSTALLED ON,SEE FOOTN.103 INSTALLED ON,SEE FOOTN.104
999
ROD293 MM, 010 UP TO CHASSIS 027776,012 UP TO CHASSIS 058871
999
SHIM CABLE PULLEY BEARING TO FIRE WALL
999
ROD293 MM, 010 FROM CHASSIS 027777,012 FROM CHASSIS 058872 010 UP TO CHASSIS 032793,012 UP TO CHASSIS 069593
999
SHIM
999
GUIDE CABLE PULLEY CABLE PULLEYS TO SUPPORT, 012 UP TO CHASSIS 076355 NOT FOR USE WITH MERCEDES-BENZ HYDRAULIC-AUTOMATIC CLUTCH
999
HOUSING
999
WASHER0.5 MM, 10/50,12/52 UP TO CHASSIS 096085, 20/60,22/62 UP TO CHASSIS 095140
999
GUIDE , 023 UP TO CHASSIS 049722 NOT INSTALLED ON,SEE FOOTN.108 021 UP TO CHASSIS 049448 NOT INSTALLED ON,SEE FOOTN.107
999
BRAKE ANCHOR PLATE RIGHT, 012 UP TO CHASSIS 049855 EXCEPT FOR,SEE FOOTNOTE 54
999
SPACER WASHER AS REQUIRED 0.75 MM, 012 UP TO CHASSIS 094381 ALSO INSTALLED ON 103498-103884
999
SPACER WASHER AS REQUIRED 0.10 MM
999
LINE
999
CABLE PULLEY , Replaced By: A1104270442, +001A1104270253
999
ADAPTER FITTING BETWEEN THE LINES
999
LINE , UP TO CHASSIS: 017 062832, FEDERAL, EXCEPT FOR: 059499,060650,061519,061527,062799. 017 062926, CALIFORNIA, EXCEPT FOR 048629,060112,062772 114 029141, EXCEPT FOR: 002250,003131,016950,026317,026334,026513,027268,027269,027272,027281,027513,027518,027822,027824, 028251,029032,029113,029121,029128. 117 10/50 102742, EXCEPT FOR: 098668,099672,100535,100850,100851,101663,102380,102507,102622,102708,102717. 117 12/52 102758, EXCEPT FOR: 088215,099223,099235,099370,099371,099673,100542,101165,101171,101246,102475,102643,102651,102724.
999
LINE
999
LINE FROM DISTRIBUTOR TO REAR LEFT BRAKE HOSE
999
LINE FROM MASTER CYLINDER TO REAR BRAKE PRESSURE REGULATOR
999
LINE FROM MASTER CYLINDER TO FRONT BRAKE PRESSURE REGULATOR,126.021 005796, 126.022,023 020032, 126.032,033 008371, 126.036,037 007212
999
LINE FROM HYDRAULIC UNIT TO LEFT FRONT WHEEL, ONLY APPLICABLE TO ANTI-LOCK BRAKING SYSTEM (ABS)F039531
999
LINE FROM HYDRAULIC UNIT TO LEFT FRONT WHEEL, ONLY APPLICABLE TO ANTI-LOCK BRAKING SYSTEM (ABS)F039532 TO BE ADAPTED DURING ASSEMBLY
999
LINE FROM MASTER CYLINDER TO FRONT LEFT BRAKE HOSE, 000 193701 003 097469 086 006508 093 007717 102,103 209243 183 013349 190 020074 193 000014 200 006559 283 001514 INAPPLICABLE TO ANTI-LOCK BRAKING SYSTEM (ABS)
999
LINE FROM MASTER CYLINDER TO ADAPTER FITTING, 000 193701 003 097469 086 006508 093 007717 102,103 209243 183 013349 190 020074 193 000014 200 006559 283 001514 INAPPLICABLE TO ANTI-LOCK BRAKING SYSTEM (ABS)
999
LINE FROM MASTER CYLINDER TO REAR HYDRAULIC UNIT, ONLY APPLICABLE TO ANTI-LOCK BRAKING SYSTEM (ABS)F039532 NOT FOR R.S.A.
999
LINE FROM ADAPTER FITTING TO DISTRIBUTOR
