Поз.
Артикул
Описание

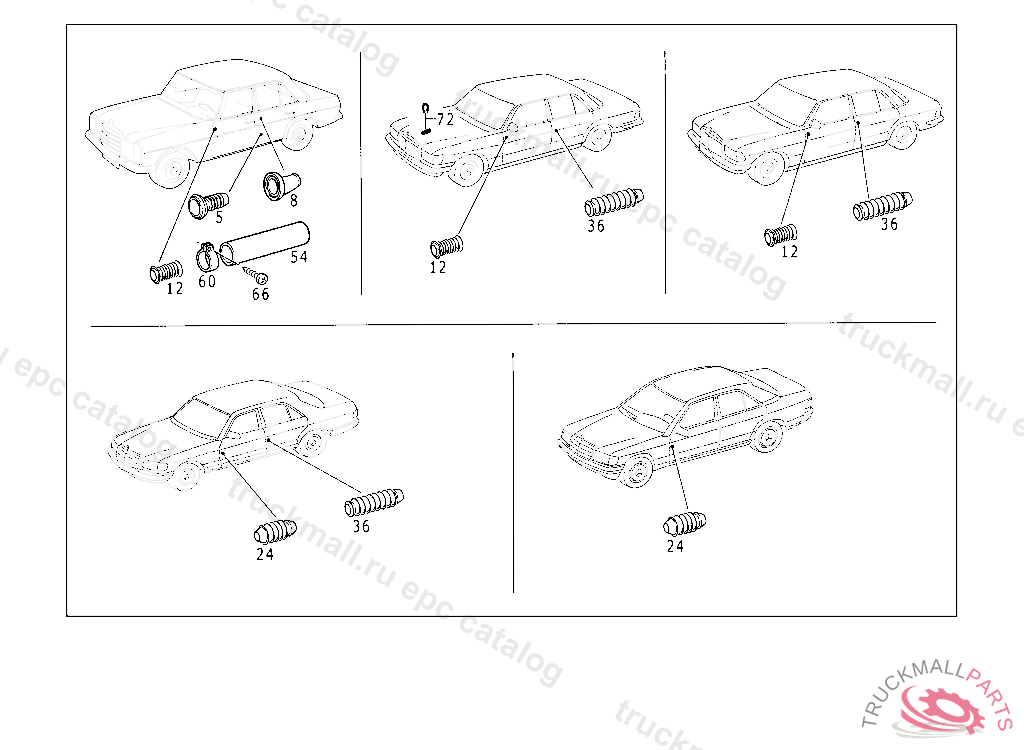

5
GROMMET CABLE PASSAGE THRU CENTRAL PILLARS
8
GROMMET (CABLE HARNESS THRU REAR DOOR)
12
HOSE LEFT AND RIGHT FRONT DOOR CABLE HARNESS
12
HOSE
24
HOSE FRONT-PANEL-PILLAR-TO-FRONT-DOOR-CABLE PROTECTIVE HOSE
36
HOSE CENTRAL-PILLAR-TO-REAR-DOOR-CABLE PROTECTIVE HOSE
36
HOSE CENTRAL-PILLAR-TO-REAR-DOOR-CABLE PROTECTIVE HOSE
54
PLASTIC PIPE FROM CENTRAL PILLAR TO REAR DOOR 500 MM, ORDER BY THE METER STATE COLOR NUMBER WHEN ORDERING
60
CLAMP , 107.023 UP TO CHASSIS 009336,107.024 UP TO006399,107.043 UP TO CHASSIS 011238,107.044 UP TO CHASSIS 018373,CONTINUED SEEFOOTNOTE 50
66
SHEET METAL SCREW BRACKET TO FLOOR PLATE, Replaced By: N000000000460
66
SHEET METAL SCREW BRACKET TO FLOOR PLATE
72
PLASTIC SECTION CABLE HARNESS TO ROOF RAIL
