Поз.
Артикул
Описание
5

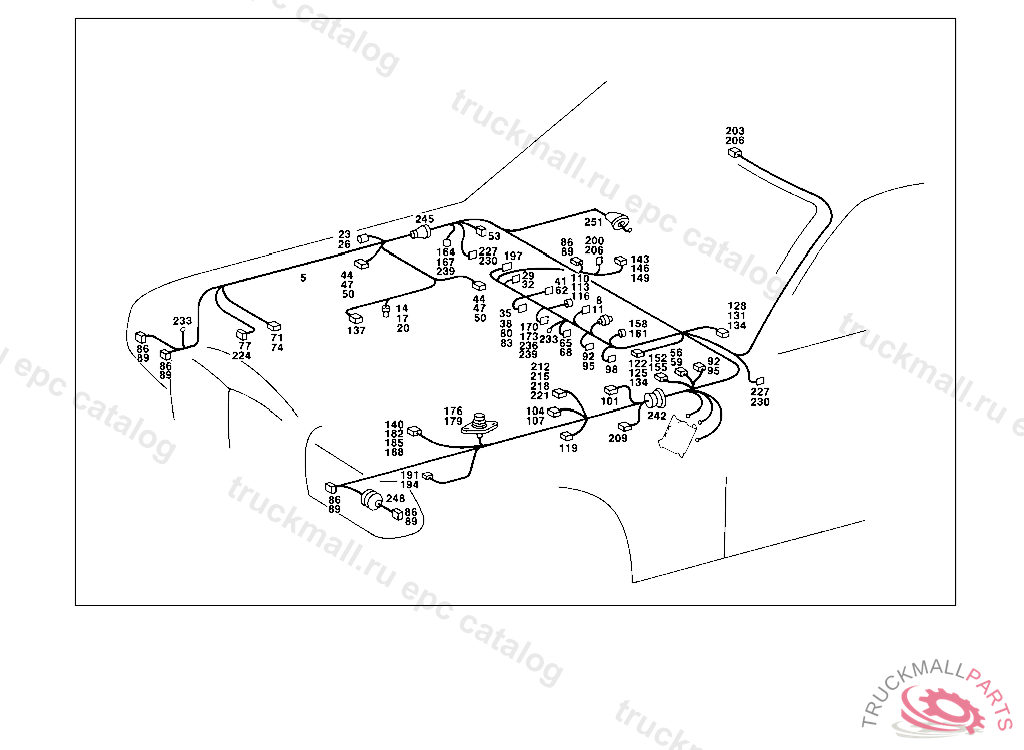

CABLE HARNESS MAIN CABLE HARNESS, 053 016970 FEDERAL,EXCEPT FOR 016104,016438,016546,016578,016737. 053 016923 CALIFORNIA,EXCEPT FOR 016465 150 004934 FEDERAL,EXCEPT FOR 004539,004808,004848,004874,004875,004878. 150 004936 CALIFORNIA,EXCEPT FOR 004883
5
CABLE HARNESS MAIN CABLE HARNESS
5
CABLE HARNESS (MAIN CABLE HARNESS) USED WITH AIR CONDITIONING AUTOMATICS, 053 021120 ALSO INSTALLED ON 019899,020881,020883,021005,021020,021021,021028,021052,021077,021083,021089. 150 006720 ALSO INSTALLED ON 005662,006542,006578,006593,006598,006609,006647,006649,006668,006670,006671,006673-006677,006685- 006712,006714-006718.
5
CABLE HARNESS MAIN CABLE HARNESS, 053 016971 FEDERAL,ALSO INSTALLED ON 016104,016438,016546,016578,016737. 053 016924 CALIFORNIA,ALSO INSTALLED ON 016465 150 004935 FEDERAL,ALSO INSTALLED ON 004539,004808,004848,004874,004875,004878. 150 004937 CALIFORNIA,ALSO INSTALLED ON 004883053 020974
29
CONNECTOR LOWER PART
32
COVER UPPER PART
41
PIN BUSHING HOUSING UNIPOLAR, HEAT SENSOR CONNECTION
44
PIN BUSHING HOUSING ELECTRIC CHANGE-OVER VALVE
47
COVERTO 008 545 08 28,008 545 09 28
50
ROUND PIN BUSHING4 MM2
62
PIN BUSHING HOUSING
65
PIN BUSHING HOUSING , 10/20 UP TO CHASSIS 4 411810,50/60 UP TO CHASSIS 4 414810
68
COVER , 10/20 UP TO CHASSIS 4 411810,50/60 UP TO CHASSIS 4 414810
71
PIN BUSHING HOUSING OUTBOARD TEMPERATURE FEELER
74
COVERTO 009 545 44 28
77
PIN BUSHING HOUSING 3-POLE
80
PLUG CHASSIS/CAB PLUG CONNECTION
83
COVERTO 009 545 42 28
86
PLUG TRIPLE
89
COVERTO 007 545 00 28
92
PIN BUSHING HOUSING 4-POLE
95
COVER
98
PIN BUSHING HOUSING HEADLAMP,WIPER MOTOR,BLOWER SWITCH
104
PIN BUSHING HOUSING SEAT HEATER RELAY, 8-POLE
107
COVERTO 006 545 81 28
113
PIN BUSHING HOUSING IGNITION/STARTING SWITCH,7-POLE
116
COVERTO 009 545 73 28,
122
PIN BUSHING HOUSING 12-POLE
125
COVERTO 009 545 26 28
128
PIN BUSHING HOUSING STEERING COLUMN MOUNTED CABLE HARNESS, 14-POLE
131
COVERTO 009 545 23 28
134
ROUND PIN BUSHING WITH DETENT AND WITH CATCH FOR HOUSING 2.5 MM2
143
PIN BUSHING HOUSING HAZARD WARNING LIGHT, 8-POLE
146
COVERTO 009 545 99 28
152
PIN BUSHING HOUSING CONTROL UNIT
155
COVERTO 010 545 00 28
158
PIN BUSHING HOUSING INSTRUMENT CLUSTER,15-POLE
161
COVERTO 010 545 04 28
170
PIN BUSHING HOUSING BIPOLAR
173
COVERTO 010 545 10 28
176
PLUG SOCKET DIAGNOSIS BOX
179
CAP DIAGNOSIS BOX
188
ROUND PIN BUSHING2.5 MM2
197
PLUG ELECTRIC CABLE TO AMPLIFIER
200
PIN BUSHING HOUSING BIPOLAR
206
FLAT PIN BUSHING , Replaced By: A0075458426
209
PLUG SOCKET METERING PUMP
212
PLUG WARM-UP SENDER,COLD START VALVE,AIRFLOW SENSOR PLATE CONTACT OR AIR SLIDE
215
CONTACT SPRING1-2.5 MM2
215
CONTACT SPRING , Replaced By: A0035450226
218
BOOTTO 116 540 01 81
221
BOOT TIMING VALVE
224
PIN BUSHING LESS DETENT,BUT WITH CATCH FOR HOUSING 2.5 MM2
224
PIN BUSHING LESS DETENT,BUT WITH CATCH FOR HOUSING 4 MM2
227
PIN BUSHING RADIO SET
230
INSULATING SLEEVETO 000 546 43 40
233
CABLE SHOE
233
CABLE SHOE GROUND
233
CABLE SHOE
236
PIN BUSHING HOUSING BIPOLAR
239
CABLE SHOE
242
GROMMET FIRE WALL,RIGHT
245
GROMMET
248
GROMMET FRONT BLINKER LAMP
251
GROMMET
