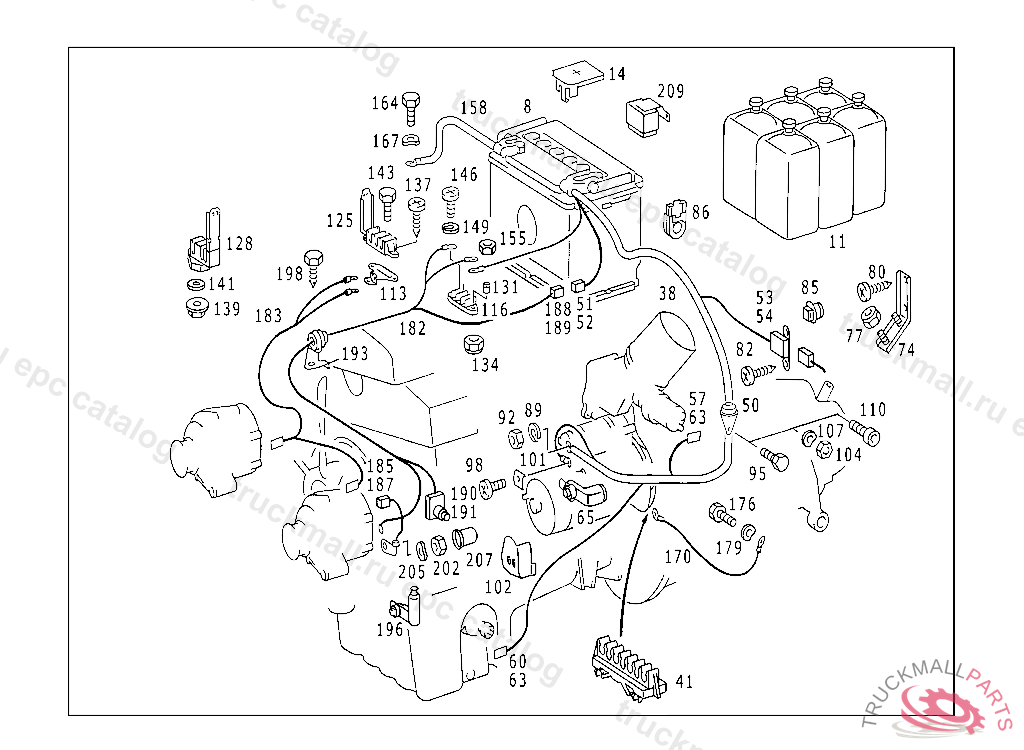

Поз.
Артикул
Описание
8
BATTERY PARTS KIT
8
BATTERY PARTS KIT,5 419106
8
BATTERY100 AH
8
BATTERY
11
BATTERY ACID BOTTLE SET
11
BATTERY ACID BOTTLE SETTO 001 541 79 01
14
BOOT POS. POLE
38
POSITIVE CABLE FROM BATTERY TO STARTING MOTOR
38
POSITIVE CABLE FROM BATTERY TO STARTING MOTOR
53
PLUG HOUSING INBOARD CABLE HARNESS PLUG-CONNECTION
54
PLUG PIN ADDITIONAL CABLE TO SERIES CABLE
57
PIN BUSHING HOUSING UNIPOLAR, HEAT SENSOR CONNECTION
60
PLUG. PIN BUSHING HOUSING NTC FEELER
60
GROMMETTO 014 545 07 28
63
ROUND PIN BUSHING WITH DETENT AND WITH CATCH FOR HOUSING 2.5 MM2
65
BOOT CABLE TO STARTING MOTOR,TERMINAL 30, 003 078976 086 003333 EXCEPT FOR 002924,002958,002959,002981,003004,003013,003017,003025,003114,003171,003282-003298,003300-003332.
74
BRACKET STARTING MOTOR CABLE HARNESS PLUGCONNECTION
77
NUT BRACKET TO ANTENNA, ONLY USED WITH REAR END MOUNTINGA 001878
80
SHEET METAL SCREW FUEL STRAINER SCREEN TO FUEL TANK
89
SPRING WASHER PROTECTIVE PLATE TO EXHAUST MUFFLER
89
SPRING WASHER , Replaced By: N000137008212
89
SPRING WASHER LICENSE PLATE TO BRACKET
92
NUT
92
NUT BALL PIVOT TO LEVER
95
SCREW COVER PLATE TO COVER PLATE M 6 X 10
113
BRACKET CABLE CONNECTOR TO DAMPER STRUT
116
SOCKET-TERMINAL STRIP SPRING DOME
125
SOCKET-TERMINAL STRIP 3-POLE
131
LOCK FRONT PANEL,LATERAL RIGHT,9/87
137
SHEET METAL SCREW WINDOW SILL GIRDER LOWER PART,4 273689
149
LOCK WASHER CONTROL LEVER TO INJECTION PUMP LEVER
158
NEG. CABLE FROM BATTERY NEG. POLE TO GROUND 220 MM
158
NEG. CABLE FROM BATTERY NEG. POLE TO GROUND
164
SCREW OIL-DIPSTICK GUIDE TUBE TO BRACKET
167
SPRING WASHER PROTECTIVE PLATE TO EXHAUST MUFFLER
167
SPRING WASHER , Replaced By: N000137008212
170
NEG. CABLE , Replaced By: A9015400741
170
GROUND STRAP FROM ENGINE TO FRAME
176
SCREW PROTECTIVE PLATE TO EXHAUST PIPE
179
SPRING WASHER PROTECTIVE PLATE TO EXHAUST MUFFLER
179
SPRING WASHER , Replaced By: N000137008212
182
CABLE HARNESS FROM ALTERNATOR TO CABLE CONNECTOR
193
BRACKET ALTERNATOR CABLE HARNESS
198
SHEET METAL SCREW BRACKET TO CAB FLOOR
202
NUT
202
NUT TACHOGRAPH TO BRACKET
205
SPRING WASHER PROTECTIVE PLATE TO EXHAUST MUFFLER
205
SPRING WASHER , Replaced By: N000137008212
205
SPRING WASHER ALTERNATOR CONNECTION D+
207
CAP SCREW HEAD COVERING
207
PROTECTION CAP , Replaced By: A0008310929
209
RELAY CUT-OFF RELAY BATTERY
