Mercedes N910143010009 - АВТОЗАПЧАСТЬ

SL 500 USA 129.067 TO 06/98

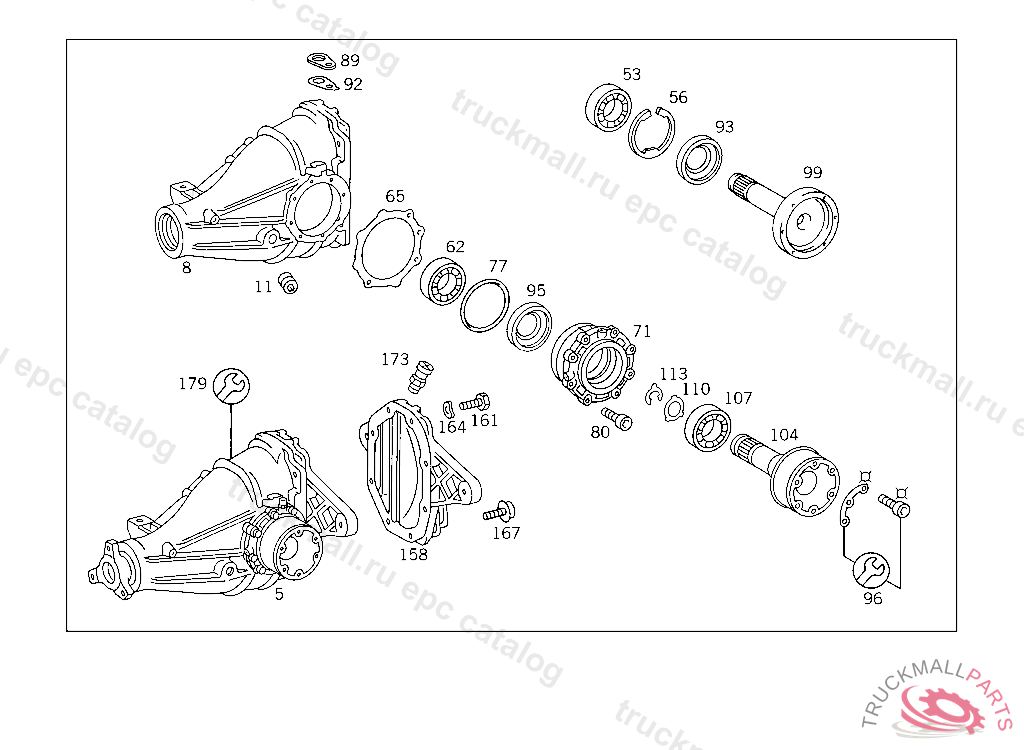

35 REAR AXLE - 015 REAR AXLE HOUSING WITH DIFFERENTIAL IL. 1
  • Поз.
    Артикул
    Описание
  • 5
    HOUSING FINAL DRIVE ASR, 1:2,65, AUSTRALIAFROM MODEL YEAR'95 PART IS ONLY OR ALSO SUPPLIED AS RECONDITIONED PART F 102745 EXCEPT FOR F 103694,F 103978,F 104254,F 104483, F105233 ONLY FOR VEHICLES WITH WHEEL-MOUNTED SENSORS
  • 5
    HOUSING FINAL DRIVE ASR, 1:2,65, AUSTRALIAFROM MODEL YEAR'95 PART IS ONLY OR ALSO SUPPLIED AS RECONDITIONED PART ALSO INSTALLED ON F 104483 F 125158 EXCEPT CODE 805 ALSO INSTALLED IN VEHICLE TO F 125157 WITH CODE 806
  • 5
    AXLE HOUSING FINAL DRIVE ASR, 1:2,65, AUSTRALIAUP TO END MODELYEAR 94 PART IS ONLY OR ALSO SUPPLIED AS RECONDITIONED PART F 102744 ALSO INSTALLED ON F 103694,F 103978,F 104254,F 104483,F 105233 NOT FOR VEHICLES WITH WHEEL-MOUNTED SENSORS
  • 8
    AXLE HOUSING , Replaced By: A1293510105
  • 8
    HOUSING ONLY USED W/ACCELERATION SKID CONTROL (ASR), UP TO IDENT NO. A 212244 EXCEPT FOR A 187334 - A 212243 WITH CODE 867
  • 11
    SCREW PLUG , Replaced By: A0009972632
  • 62
    TAPERED ROLLER BEARING RING GEAR BEARING
  • 65
    SPACER WASHER AS REQUIRED 2.40 MM
  • 65
    SPACER WASHER AS REQUIRED 1.30 MM
  • 65
    SPACER WASHER AS REQUIRED 2.50 MM
  • 65
    SPACER WASHER AS REQUIRED 1.00 MM
  • 65
    SPACER WASHER AS REQUIRED 2.10 MM
  • 65
    SPACER WASHER AS REQUIRED 1.15 MM
  • 65
    SPACER WASHER AS REQUIRED 1.05 MM
  • 65
    SPACER WASHER AS REQUIRED 1.40 MM
  • 65
    SPACER WASHER AS REQUIRED 1.55 MM
  • 65
    SPACER WASHER AS REQUIRED 1.80 MM
  • 65
    SPACER WASHER AS REQUIRED 1.70 MM
  • 65
    SPACER WASHER AS REQUIRED 0.90 MM
  • 65
    SPACER WASHER AS REQUIRED 1.45 MM
  • 65
    SPACER WASHER AS REQUIRED 1.50
  • 65
    SPACER WASHER AS REQUIRED 2.20 MM
  • 65
    SPACER WASHER AS REQUIRED 1.60 MM
  • 65
    SPACER WASHER AS REQUIRED 1.20 MM
  • 65
    SPACER WASHER AS REQUIRED 1.90 MM
  • 65
    SPACER WASHER AS REQUIRED 2.00 MM
  • 65
    SPACER WASHER AS REQUIRED 1.10 MM
  • 65
    SPACER WASHER AS REQUIRED 2.60 MM
  • 65
    SPACER WASHER AS REQUIRED 2.30 MM
  • 71
    COVER BEARING COVER, UP TO IDENT NO. A 212244 EXCEPT FOR A 187334 - A 212243 WITH CODE 867
  • 71
    COVER BEARING COVER, FROM IDENT NO. A 212245 ALSO INSTALLED ON A 187334 - A 212243 WITH CODE 867
  • 77
    SEAL RING BEARING COVER TO AXLE HOUSING
  • 80
    SCREW STEERING SHAFT BEARING TO CAB M 8X22
  • 89
    SHIM AS REQUIRED 1.6 MM
  • 89
    SHIM AS REQUIRED 1,8 MM
  • 89
    SHIM AS REQUIRED 1,5 MM
  • 89
    SHIM AS REQUIRED 1,3 MM
  • 89
    SHIM AS REQUIRED 1.1 MM
  • 89
    SHIM AS REQUIRED 1.7 MM
  • 89
    SHIM AS REQUIRED 1.2 MM
  • 89
    SHIM AS REQUIRED 2,0 MM
  • 89
    SHIM AS REQUIRED 1.4 MM
  • 89
    SHIM AS REQUIRED 2.1 MM
  • 89
    SHIM AS REQUIRED 2.2 MM
  • 89
    SHIM AS REQUIRED 1,9 MM
  • 89
    SHIM AS REQUIRED 2.3 MM
  • 89
    SHIM AS REQUIRED 1.0 MM
  • 92
    ADHESIVE TAPE
  • 95
    SEAL RING INTERIOR FLANGE
  • 96
    HOUSING MOUNTING PARTS
  • 96
    REPAIR KIT , Replaced By: A1403508414
  • 104
    FLANGE INSIDE, UP TO IDENT NO. A 212244 EXCEPT FOR A 187334 - A 212243 WITH CODE 867
  • 104
    FLANGE INSIDE, FROM IDENT NO. A 212245 ALSO INSTALLED ON A 187334 - A 212243 WITH CODE 867
  • 107
    GROOVED BALL BEARING
  • 113
    SNAP RING AS REQUIRED 2.05 MM, FROM IDENT NO. A 212245 ALSO INSTALLED ON A 187334 - A 212243 WITH CODE 867
  • 113
    SNAP RING AS REQUIRED 2.40 MM, FROM IDENT NO. A 212245 ALSO INSTALLED ON A 187334 - A 212243 WITH CODE 867
  • 113
    SNAP RING AS REQUIRED 2.10 MM, FROM IDENT NO. A 212245 ALSO INSTALLED ON A 187334 - A 212243 WITH CODE 867
  • 113
    SNAP RING AS REQUIRED 1.70 MM, FROM IDENT NO. A 212245 ALSO INSTALLED ON A 187334 - A 212243 WITH CODE 867
  • 113
    SNAP RING AS REQUIRED 1.40 MM, FROM IDENT NO. A 212245 ALSO INSTALLED ON A 187334 - A 212243 WITH CODE 867
  • 113
    SNAP RING AS REQUIRED 2.70 MM, FROM IDENT NO. A 212245 ALSO INSTALLED ON A 187334 - A 212243 WITH CODE 867
  • 113
    SNAP RING AS REQUIRED 2.35 MM, FROM IDENT NO. A 212245 ALSO INSTALLED ON A 187334 - A 212243 WITH CODE 867
  • 113
    SNAP RING AS REQUIRED 2.55 MM, FROM IDENT NO. A 212245 ALSO INSTALLED ON A 187334 - A 212243 WITH CODE 867
  • 113
    SNAP RING AS REQUIRED 2.25 MM, FROM IDENT NO. A 212245 ALSO INSTALLED ON A 187334 - A 212243 WITH CODE 867
  • 113
    SNAP RING AS REQUIRED 2.30 MM, FROM IDENT NO. A 212245 ALSO INSTALLED ON A 187334 - A 212243 WITH CODE 867
  • 113
    SNAP RING AS REQUIRED 2.00 MM, FROM IDENT NO. A 212245 ALSO INSTALLED ON A 187334 - A 212243 WITH CODE 867
  • 113
    SNAP RING AS REQUIRED 1.60 MM, FROM IDENT NO. A 212245 ALSO INSTALLED ON A 187334 - A 212243 WITH CODE 867
  • 113
    SNAP RING AS REQUIRED 2.65 MM, FROM IDENT NO. A 212245 ALSO INSTALLED ON A 187334 - A 212243 WITH CODE 867
  • 113
    SNAP RING AS REQUIRED 1.45 MM, FROM IDENT NO. A 212245 ALSO INSTALLED ON A 187334 - A 212243 WITH CODE 867
  • 113
    SNAP RING AS REQUIRED 2.15 MM, FROM IDENT NO. A 212245 ALSO INSTALLED ON A 187334 - A 212243 WITH CODE 867
  • 113
    SNAP RING AS REQUIRED 2.20 MM, FROM IDENT NO. A 212245 ALSO INSTALLED ON A 187334 - A 212243 WITH CODE 867
  • 113
    SNAP RING AS REQUIRED 2.50 MM, FROM IDENT NO. A 212245 ALSO INSTALLED ON A 187334 - A 212243 WITH CODE 867
  • 113
    SNAP RING AS REQUIRED 1.90 MM, FROM IDENT NO. A 212245 ALSO INSTALLED ON A 187334 - A 212243 WITH CODE 867
  • 113
    SNAP RING AS REQUIRED 1.65 MM, FROM IDENT NO. A 212245 ALSO INSTALLED ON A 187334 - A 212243 WITH CODE 867
  • 113
    SNAP RING AS REQUIRED 2.45 MM, FROM IDENT NO. A 212245 ALSO INSTALLED ON A 187334 - A 212243 WITH CODE 867
  • 113
    SNAP RING AS REQUIRED 1.55 MM, FROM IDENT NO. A 212245 ALSO INSTALLED ON A 187334 - A 212243 WITH CODE 867
  • 113
    SNAP RING AS REQUIRED 1.95 MM, FROM IDENT NO. A 212245 ALSO INSTALLED ON A 187334 - A 212243 WITH CODE 867
  • 113
    SNAP RING AS REQUIRED 1.85 MM, FROM IDENT NO. A 212245 ALSO INSTALLED ON A 187334 - A 212243 WITH CODE 867
  • 113
    SNAP RING AS REQUIRED 2.60 MM, FROM IDENT NO. A 212245 ALSO INSTALLED ON A 187334 - A 212243 WITH CODE 867
  • 113
    SNAP RING AS REQUIRED 1.75 MM, FROM IDENT NO. A 212245 ALSO INSTALLED ON A 187334 - A 212243 WITH CODE 867
  • 113
    SNAP RING AS REQUIRED 1.50 MM, FROM IDENT NO. A 212245 ALSO INSTALLED ON A 187334 - A 212243 WITH CODE 867
  • 113
    SNAP RING AS REQUIRED 1.80 MM, FROM IDENT NO. A 212245 ALSO INSTALLED ON A 187334 - A 212243 WITH CODE 867
  • 158
    END COVER , Replaced By: A1293500436
  • 158
    END COVER
  • 167
    SCREW. HEXALOBULAR BOLT SUPPORT TO BRACKET M10X25
  • 167
    SCREW , Replaced By: A0009902904
  • 167
    SCREW CONSOLE TO FRAME M 12X40, FOR USE WITH SHORT VERSION OF MERCEDES-BENZ CAB
  • 167
    SCREW GUSSET PLATES AND REAR CROSS MEMBER TO SIDE MEMBERS
  • 173
    VALVE
  • 179
    REPAIR KIT REAR AXLE HOUSING WITH DIFFERENTIAL
