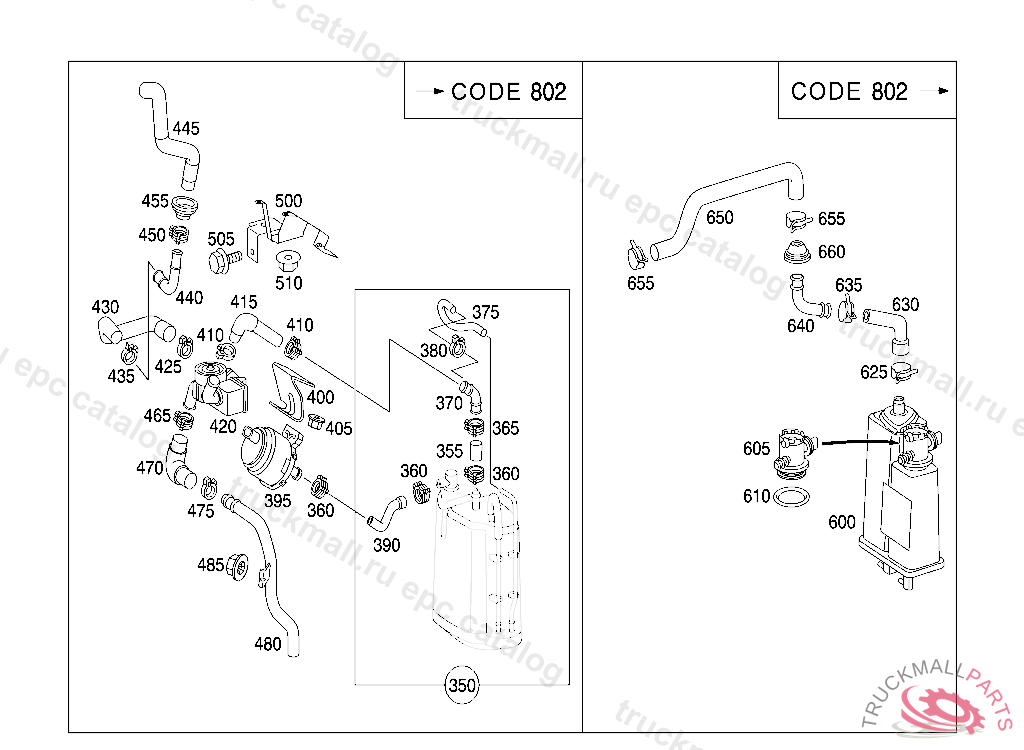

Поз.
Артикул
Описание
350
BRACKET PRESSURE GAUGE
350
ACTIVATED CHARCOAL FILTER , B 04000020000630800 X 03789020000531800 B 39799920010630802 X 06199920010629802
355
HOSE ACTIVATED CHARCOAL FILTER TO T-FITTING, B 04000020000630800 X 03789020000531800
360
HOSE CLAMP. LOOM TIE BREATHER LINE TO FUEL TANK, FROM MODEL YEAR '98
360
NUT LEVER TO THROTTLE VALVE SHAFT TO 366 140 02 32
365
HOSE CLAMP. LOOM TIE BREATHER LINE TO FUEL TANK, FROM MODEL YEAR '98
370
TANK RECESS FROM ACTIVATED CHARCOAL FILTER TO BREATHER LINE, B 04000020000630800 X 03789020000531800 NO LONGER AVAILABLE
375
HOSE FROM ACTIVATED CHARCOAL FILTER TO BREATHER LINE, B 04000020000630800 X 03789020000531800
380
HOSE CLAMP HOSE ATTACHMENT
390
FUEL HOSE. HOSE ACTIVATED CHARCOAL FILTER TO SHUT-OFF VALVE, FROM MODEL YEAR '99
395
VALVE , FROM MODEL YEAR'96
400
BRACKET REGENERATION VALVE
405
NUT COVERING TO CAB FIRE WALL
410
HOSE CLAMP. LOOM TIE BREATHER LINE TO FUEL TANK, FROM MODEL YEAR '98
415
HOSE T CONNECTOR TO FLOAT VALVE
420
VALVE FLOAT VALVE, B 04000020000630800 X 03789020000531800
425
HOSE CLAMP. LOOM TIE (PRESSURE RELIEF VALVE)
430
HOSE AT VALVE
435
HOSE CLAMP. LOOM TIE BREATHER LINE TO FUEL TANK, FROM MODEL YEAR '98
440
LINE , NO LONGER AVAILABLE
445
HOSE TO FILLER NECK
450
HOSE CLAMP. LOOM TIE (PRESSURE RELIEF VALVE)
455
GROMMET RIGHT WHEEL ARCH
465
HOSE CLAMP. LOOM TIE BREATHER LINE TO FUEL TANK, FROM MODEL YEAR '98
470
HOSE FLOAT VALVE TO OUTSIDE
475
HOSE CLAMP. LOOM TIE BREATHER LINE TO FUEL TANK, FROM MODEL YEAR '98
480
LINE FLOAT VALVE TO OUTSIDE
485
NUT COVERING TO CAB FIRE WALL
500
BRACKET FLOAT VALVE AND CUTOFF VALVE, B 04000020000630800 X 03789020000531800 NO LONGER AVAILABLE
505
HEXALOBULAR BOLT ELECTRIC CABLE MOUNTING M5X10,V 213244
510
NUT COVERING TO CAB FIRE WALL
600
ACTIVATED CHARCOAL FILTER , B 31920020010630801 X 05850020010629801
605
SHUT-OFF VALVE , Replaced By: A0004768332
605
VALVE SHUT-OFF VALVE, NO LONGER AVAILABLE, Replaced By: A0004704993
610
SEAL RING VALVE, J 01715720040430805
625
HOSE CLAMP. LOOM TIE BREATHER LINE TO FUEL TANK, FROM MODEL YEAR '98
630
HOSE HOSE TO ACTIVATED CHARCOAL FILTER, NO LONGER AVAILABLE
635
HOSE CLAMP. LOOM TIE (PRESSURE RELIEF VALVE)
640
LINE , NO LONGER AVAILABLE
650
HOSE TANK TO VENT LINE
655
HOSE CLAMP. LOOM TIE (PRESSURE RELIEF VALVE)
660
GROMMET RIGHT WHEEL ARCH
