Поз.
Артикул
Описание

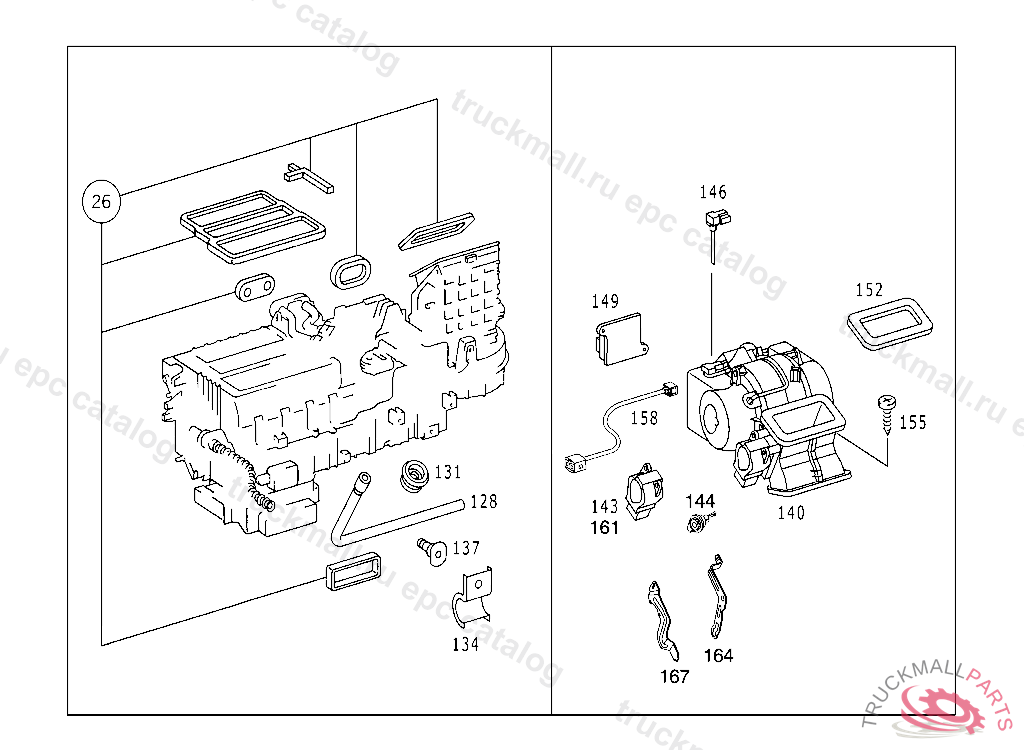

26
SEAL PARTS KIT
128
HOSE CONDENSED WATER DRAIN
128
HOSE
131
GROMMET CONDENSED WATER DRAIN
134
CLAMP , 107.022 005200 EXCEPT FOR 005190-005192,005194-005199. 107.023 012496 107.024 021803 EXCEPT FOR 021794,021804
137
NUT , Replaced By: A2109900150
137
HEXAGON NUT W COLLAR BRACKET MOUNTING
140
BLOWER IN CENTRAL CONSOLE, A 289560 X 754620 EXCEPT CODE 801 ALSO INSTALLED IN VEHICLE TO A 289559, X 754619 WITH CODE 802
143
STEPPER MOTOR , A 77781720040929 E 02000020070101
144
HOLDING DEVICE VENTILATION FLAP, A 289560 X 754620 EXCEPT CODE 801 ALSO INSTALLED IN VEHICLE TO A 289559, X 754619 WITH CODE 802
146
TEMPERATURE SENSOR HEATER CASE
149
BLOWER REGULATOR IN CENTRAL CONSOLE
152
SEAL IN CENTRAL CONSOLE, A 289560 X 754620 EXCEPT CODE 801 ALSO INSTALLED IN VEHICLE TO A 289559, X 754619 WITH CODE 802
155
TAPPING SCREW. SHEET METAL SCREW BRACKET TO CAB
158
CABLE HARNESS BLOWER MOTOR, A 289560 X 754620 EXCEPT CODE 801 ALSO INSTALLED IN VEHICLE TO A 289559, X 754619 WITH CODE 802A 444899 SACHNUMMER OHNE ES1 BESTELLENA 444900 SACHNUMMER MIT ES1 98 BESTELLEN
161
STEPPER MOTOR , A 77781720040929 E 02000020070101
164
ROD , A 289560 X 754620 EXCEPT CODE 801 ALSO INSTALLED IN VEHICLE TO A 289559, X 754619 WITH CODE 802
164
ROD , A 289560 X 754620 EXCEPT CODE 801 ALSO INSTALLED IN VEHICLE TO A 289559, X 754619 WITH CODE 802
167
BRACKET , A 289560 X 754620 EXCEPT CODE 801 ALSO INSTALLED IN VEHICLE TO A 289559, X 754619 WITH CODE 802
167
BRACKET , A 289560 X 754620 EXCEPT CODE 801 ALSO INSTALLED IN VEHICLE TO A 289559, X 754619 WITH CODE 802
