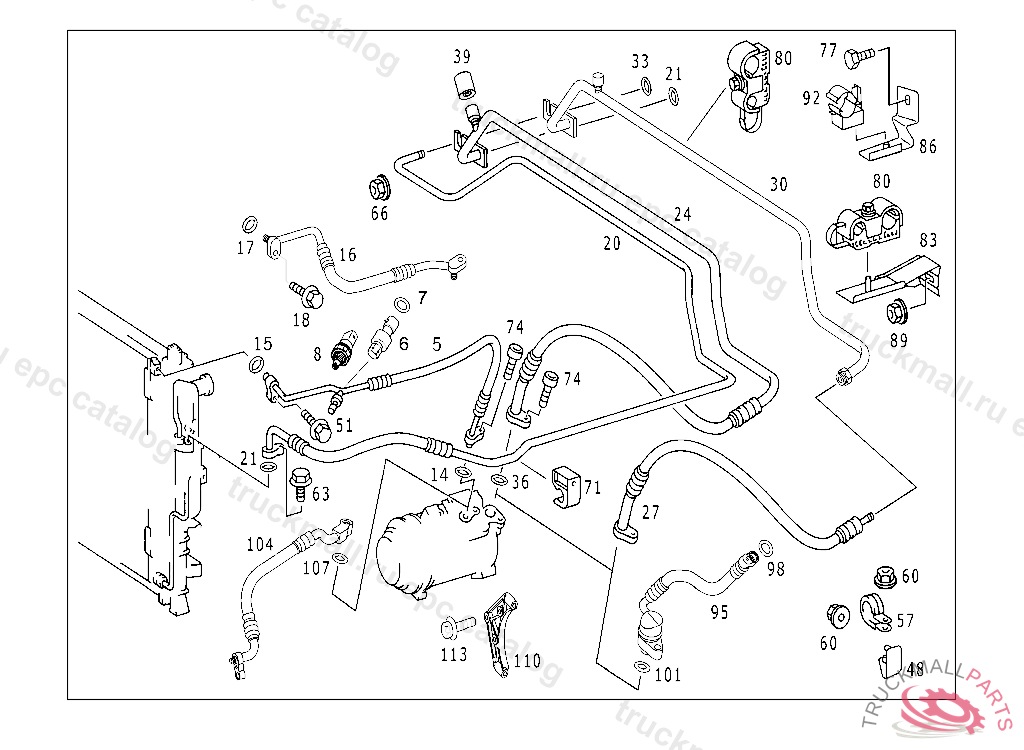

Поз.
Артикул
Описание
5
LINE FROM COMPRESSOR TO CONDENSER, A 289560 X 754620 EXCEPT CODE 801 ALSO INSTALLED IN VEHICLE TO A 289559, X 754619 WITH CODE 802
5
LINE FROM COMPRESSOR TO CONDENSER
5
LINE , Replaced By: A1635003872
6
SENDER UNIT
7
SEAL RING SENSOR
8
TEMPERATURE SENSOR , A 83253220050630806 L 01563020050731 X 18792720050630806, Replaced By: A2038300472
8
TEMPERATURE SENSOR AT CONDENSER, A 66602420040430805
14
SEAL RING
15
SEAL RING
20
LINE DRIER FOR EXPANSION VALVE
20
LINE DRIER FOR EXPANSION VALVE
21
SEAL RING
24
LINE FROM EXPANSION VALVE TO COMPRESSOR, A 289559 X 765444 EXCEPT A 289401, A 289402, A 289404
24
LINE FROM EXPANSION VALVE TO COMPRESSOR, A 289560 X 765445 ALSO INSTALLED IN VEHICLE A 289401, A 289402, A 289404
24
LINE FROM EXPANSION VALVE TO COMPRESSOR, A 289559 X 765444 EXCEPT A 289401, A 289402, A 289404
24
LINE FROM EXPANSION VALVE TO COMPRESSOR, A 289560 X 765445 ALSO INSTALLED IN VEHICLE A 289401, A 289402, A 289404
27
LINE FROM EXPANSION VALVE TO COMPRESSOR, A 289560 X 765445 ALSO INSTALLED IN VEHICLE A 289401, A 289402, A 289404
33
SEAL RING
36
SEAL RING
39
CAP REFILLING CONNECTION
48
BRACKET
51
SCREW CLAMP TO CONNECTING PIPE AND TO EXHAUST HOSE M 8X30
57
CLAMP , Replaced By: N916016015202
60
NUT LEVER TO THROTTLE VALVE SHAFT TO 366 140 02 32
63
SCREW , WITH DIESEL ENGINE
66
NUT LEVER TO THROTTLE VALVE SHAFT TO 366 140 02 32
71
END PIECE (EXPANSION VALVE) 5 MM
77
SCREW PUMP TO BRACKET
80
CLAMPING PIECE PIPE LINE TO FIRE WALL
83
BRACKET PIPE LINE TO FIRE WALL
86
BRACKET PIPE LINE TO FIRE WALL
89
NUT LEVER TO THROTTLE VALVE SHAFT TO 366 140 02 32
92
BRACKET HOSE ATTACHMENT
