Mercedes A2209971952 - Шланг

S 350 4MATIC 220.087

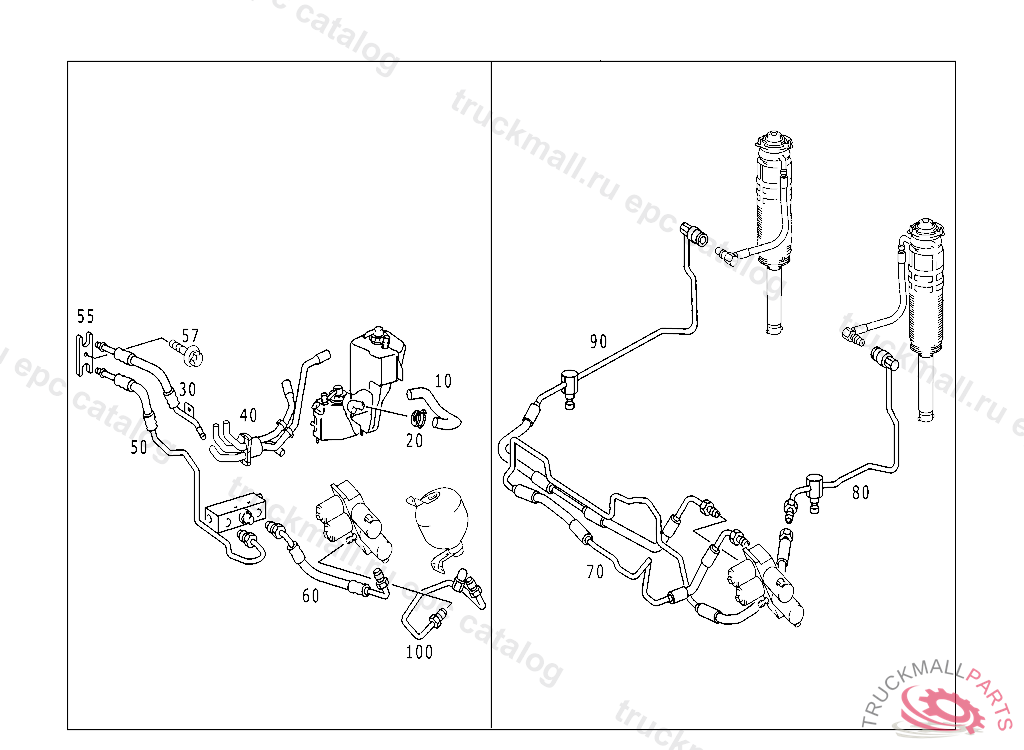

32 SPRINGS, SUSPENSION AND HYDRAULIC SYSTEM - 290 LINE ARRANGEMENT OF HYDRAULIC SYSTEM IL. 1
  • Поз.
    Артикул
    Описание
  • 10
    HOSE SUCTION HOSE TO OIL TANK
  • 20
    CLAMP POWER STEERING PUMP TO OIL TANK, FROM MODEL YEAR 2000CODE 800
  • 30
    HOSE FROM OIL COOLER TO OIL TANK
  • 40
    HOSE COOLING MODULE TO PUMP/OIL RESERVOIR, A 03875020030307
  • 50
    HOSE OIL COOLER TO TEMPERATURE SENSOR DISTRIBUTOR, A 26505420020930802
  • 55
    PLATE TO FRAME-TYPE INTEGRAL SUPPORT
  • 57
    HEXALOBULAR BOLT BRACKET TO BRACKET M8X16
  • 60
    HOSE VALVE BLOCK, FRONT LEFT, TO DISTRIBUTOR FITTING
  • 60
    HOSE TEMPERATURE SENSOR DISTRIBUTOR TO VALVE BLOCK, Replaced By: A2209977982
  • 70
    HOSE VALVE BLOCK FB1 "YELLOW" TO SEPARATIONPOINT SUSPENSION STRUT LEFT, A 26505420020930802
  • 80
    LINE SPRING STRUT, FRONT LEFT, TO INTERFACE, A 02427920020930802
  • 90
    HOSE SPRING STRUT, FRONT RIGHT, TO INTERFACE, A 02427920020930802
  • 100
    LINE VALVE BLOCK, FRONT LEFT, TO SPRING ACTUATOR
