Mercedes A0089976082 - ТРУБКА

L 508 DG 309.424

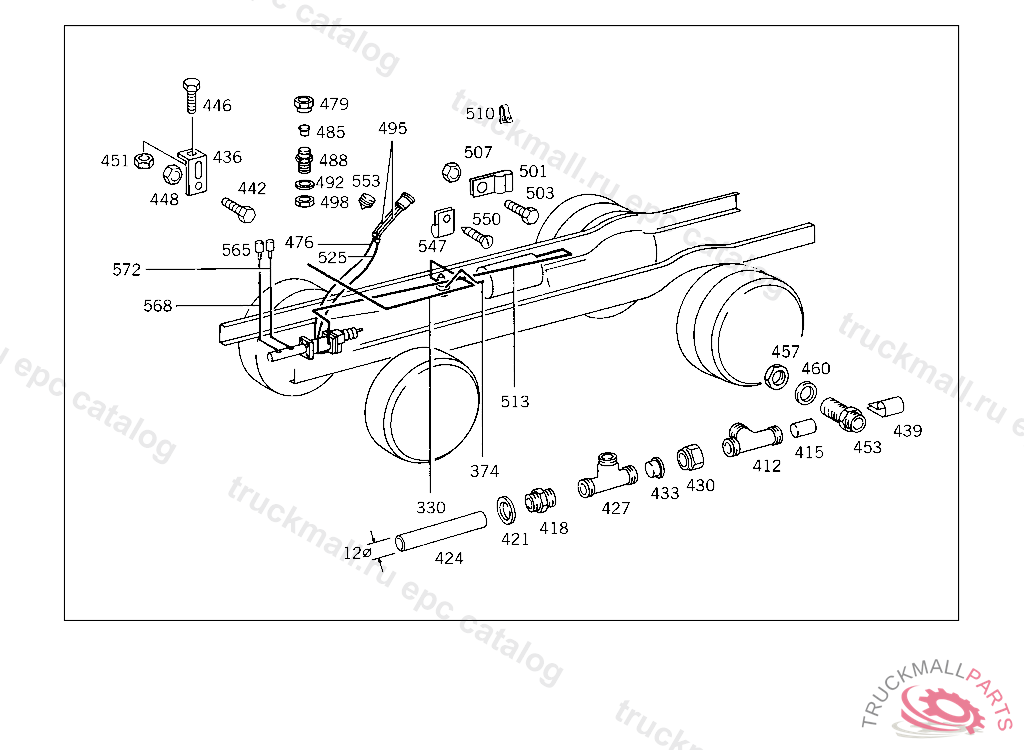

42 BRAKES - 001 AIR BRAKE LESS TRAILER BRAKE,L.H.D. IL.5
  • Поз.
    Артикул
    Описание
  • 330
    LINE , Replaced By: A0005516456
  • 330
    TUBE FEED AND RETURN LINES TO OIL COOLER, LENGTH AVAILABLE 3000 MM
  • 374
    LINE , Replaced By: A0005516256
  • 374
    TUBE FROM HIGH PRESSURE HOSE TO STEERING, LENGTH AVAILABLE: 3000 MM
  • 412
    T-FITTING (SAFETY VALVE)
  • 415
    PIN SCREW PLUG,145736 ALSO INSTALLED ON 145741,145768,145770,145774,145786,145787,145795,145807,145808,145819,145825,145830,145837,145840, 145846,145860,145861,145888,145901,145907,145910,145911,145913-145917,146138. EXCEPT FOR 139841,139842,140553,145397,145406,145409,145426,145445,145462,145592,145660,145697,145701.
  • 418
    DOUBLE FITTING FROM PRESSURE REGULATOR TO AIR RESERVOIR
  • 421
    SEAL RING LINE CONNECTION
  • 424
    LINE12 MM, ORDER BY THE METER4 691315
  • 427
    T-FITTING BETWEEN THE LINES,145736 ALSO INSTALLED ON 145741,145768,145770,145774,145786,145787,145795,145807,145808,145819,145825,145830,145837,145840, 145846,145860,145861,145888,145901,145907,145910,145911,145913-145917,146138. EXCEPT FOR 139841,139842,140553,145397,145406,145409,145426,145445,145462,145592,145660,145697,145701.
  • 427
    THREADED UNION , Replaced By: A0009905370
  • 430
    UNION NUT LINE CONNECTION, Replaced By: N000000006239
  • 430
    UNION NUT LINE CONNECTION
  • 433
    GLAND , Replaced By: A0019901967
  • 433
    SEAL CONE LINE CONNECTION
  • 436
    BRACKET LINE MOUNTING
  • 436
    BRACKET , Replaced By: A3184280240
  • 439
    CLAMP DELIVERY AND SUCTION LINES TO ENGINE, TOP
  • 442
    SCREW , Replaced By: N304017008021
  • 442
    SCREW PIPE CLAMP
  • 446
    SCREW
  • 448
    NUT AIR RESERVOIR TO FRAME
  • 451
    NUT , 309.170-173,181-183,190,191 FROM CHASSIS 011044
  • 453
    FITTING DELIVERY LINE TO FRAME
  • 457
    NUT BRACKET TO SIDE MEMBER
  • 460
    WASHER COILED TUBE TO BRAKE LINE COUPLING SUPPORT
  • 476
    LINE BRAKES 6X0.7 MM, LENGTH AVAILABLE 25000 MM
  • 476
    LINE , Replaced By: A0004296201
  • 479
    UNION NUT
  • 485
    GLAND , Replaced By: A0019901667
  • 488
    SCREW-IN FITTING MOUNTED TO T-FITTING,145736 ALSO INSTALLED ON 145741,145768,145770,145774,145786,145787,145795,145807,145808,145819,145825,145830,145837,145840, 145846,145860,145861,145888,145901,145907,145910,145911,145913-145917,146138. EXCEPT FOR 139841,139842,140553,145397,145406,145409,145426,145445,145462,145592,145660,145697,145701.
  • 492
    SEAL RING LINE CONNECTION
  • 495
    ELECTRIC CABLE ,145736 ALSO INSTALLED ON 145741,145768,145770,145774,145786,145787,145795,145807,145808,145819,145825,145830,145837,145840, 145846,145860,145861,145888,145901,145907,145910,145911,145913-145917,146138. EXCEPT FOR 139841,139842,140553,145397,145406,145409,145426,145445,145462,145592,145660,145697,145701.
  • 498
    NUT LOAD/NO-LOAD VALVE,CONNECTION: "20",5 727400
  • 501
    CLAMP HOSE TO CAB
  • 503
    SCREW COVER PLATE TO BRACKET
  • 503
    SCREW PROTECTIVE PLATE TO EXHAUST PIPE
  • 507
    NUT , 309.170-173,181-183,190,191 FROM CHASSIS 011044
  • 510
    CLAMP BREATHER LINE TO REAR AXLE
  • 513
    HOSE , Replaced By: A0009872827
  • 513
    PLASTIC PIPE FUEL LINE 12X1,5 MM, ORDER BY THE METER
  • 525
    HOSE LEAK LINE 4X6 MM, ORDER BY THE METER
  • 525
    PLASTIC PIPE RISING PIPE 4X6 MM
  • 547
    CLAMP DELIVERY AND SUCTION LINES TO ENGINE, TOP
  • 550
    TAPPING SCREW LINE MOUNTING,145737 ALSO INSTALLED ON 139841,139842,140553,145397,145406,145409,145426,145445,145462,145592,145660,145697,145701. EXCEPT FOR 145741,145768,145770,145774,145786,145787,145795,145807,145808,145819,145825,145830,145837,145840, 145846,145860,145861,145888,145901,145907,145910,145911,145913-145917,146138.
  • 553
    GROMMET FOR PASSAGE OF LINE, UP TO IDENT NO. 5 033766,ALSO INSTALLED ON 5 039977
  • 565
    HOSE , Replaced By: A6039970482
  • 565
    HOSE , THIS NOTE OF REPLACEMENT APPLIES ONLY TO THE ITEM LISTED OPPOSITE, Replaced By: A3109970382
  • 565
    HOSE FLUID RESERVOIR
  • 568
    LINE FROM RESERVOIR HOSE TO BRAKE MASTER CYLINDER, ON TRUCKS,L.H.D.UP TO CHASSIS 145736 ALSO INSTALLED ON 145741,145768,145770,145774,145786,145787,145795 145697,145701,145807,145808,145819,145825,145830,145837,145840,145846,145860,145861,145888,145901, 145907,145910,145911,145913-145917,146138. EXCEPT FOR 139841,139842,140553,145397,145406,145409,145426,145445,145462,145660. ON TRUCKS,R.H.D.UP TO CHASSIS 148036 WITH EXCEPTION OF 140555,142078 ON BUSES,L.H.D.UP TO CHASSIS 018153 ALSO INSTALLED ON 018155,018156,018159,018308,018310,018315,018317,018318,018327,018350,01 8355 WITH EXCEPTION OF 017661,017829, ON BUSES,R.H.D.UP TO CHASSIS 018729
  • 568
    LINE , Replaced By: A3104208528
  • 572
    LINE , Replaced By: A3104208528
  • 572
    LINE FROM RESERVOIR HOSE TO BRAKE MASTER CYLINDER, ON TRUCKS,L.H.D.UP TO CHASSIS 145736 ALSO INSTALLED ON 145741,145768,145770,145774,145786,145787,145795 145697,145701,145807,145808,145819,145825,145830,145837,145840,145846,145860,145861,145888,145901, 145907,145910,145911,145913-145917,146138. EXCEPT FOR 139841,139842,140553,145397,145406,145409,145426,145445,145462,145660. ON TRUCKS,R.H.D.UP TO CHASSIS 148036 WITH EXCEPTION OF 140555,142078 ON BUSES,L.H.D.UP TO CHASSIS 018153 ALSO INSTALLED ON 018155,018156,018159,018308,018310,018315,018317,018318,018327,018350,01 8355 WITH EXCEPTION OF 017661,017829, ON BUSES,R.H.D.UP TO CHASSIS 018729
  • 999
    CLAMP , Replaced By: N000000000665
  • 999
    FITTING LINE CONNECTION TO FIRE WALL,5 726664
  • 999
    UNION NUT
  • 999
    NUT , Replaced By: N913004008001
  • 999
    SCREW OIL-DIPSTICK GUIDE TUBE TO BRACKET
  • 999
    WASHER BRACKET TO LEFT SIDE MEMBER
  • 999
    WASHER , Replaced By: N009021008213
  • 999
    SCREW , Replaced By: N304017008016
  • 999
    CLAMP HOSE TO RADIATOR AND TO EXPANSION TANK 12-22X13 MM
  • 999
    LINE FROM DISTRIBUTOR TO VALVE 3200 MM
  • 999
    LINE FROM DISTRIBUTOR TO VALVE 3000 MM
  • 999
    LINE FROM MASTER CYLINDER TO FRONT AXLE TEST CONNECTION 2600 MM
  • 999
    LINE FROM TEST CONNECTION TO RIGHT FRONT WHEEL BRAKE HOSE
  • 999
    LINE FROM TEST CONNECTION TO RIGHT FRONT WHEEL 2200 MM,4 478329
  • 999
    LINE FROM PRESSURE CONTROL VALVE TO FRONT AXLE BRAKE HOSE,LEFT
  • 999
    LINE FROM MASTER CYLINDER TO INTERMEDIATE PIECE 1850 MM
  • 999
    LINE FROM VALVE TO BRAKE HOSE 1500 MM
  • 999
    LINE FROM TEST CONNECTION TO LEFT FRONT WHEEL BRAKE HOSE 1400 MM
  • 999
    SEAL RING
  • 999
    BRAKE MASTER CYLINDER CAB, WITH TRUCKS FROM CHASSIS 145737,ALSO INSTALLED ON,SEE FOOTNOTE 5,EXCEPT FOR,SEE FOOTNOTE 4,WITH BUSES FROM CHASSIS 018154 ALSOINSTALLED ON 017661,017829,EXCEPTO FOR SEE FOOTNOTE 7
  • 999
    BRAKE MASTER CYLINDER , Replaced By: A0034307101
  • 999
    PRESSURE REGULATOR"WESTINGHOUSE", TO 001 429 60 44
  • 999
    PRESSURE REGULATORBOSCH
  • 999
    BRAKE MASTER CYLINDER CAB 23.81 MM, WITH TRUCKS FROM CHASSIS 145737,ALSO INSTALLED ON,SEE FOOTNOTE 5,EXCEPT FOR,SEE FOOTNOTE 4,WITH BUSES FROM CHASSIS 018154 ALSOINSTALLED ON 017661,017829,EXCEPTO FOR SEE FOOTNOTE 7
  • 999
    BRAKE MASTER CYLINDER CAB,145736 ALSO INSTALLED ON 145741,145768,145770,145774,145786,145787,145795,145807,145808,145819,145825,145830,145837,145840, 145846,145860,145861,145888,145901,145907,145910,145911,145913-145917,146138. EXCEPT FOR 139841,139842,140553,145397,145406,145409,145426,145445,145462,145592,145660,145697,145701.
  • 999
    BRAKE MASTER CYLINDER , UP TO CHASSIS 162733
  • 999
    REPAIR KIT VALVE KIT WABCO,5 148812
  • 999
    FITTING
  • 999
    FITTING , Replaced By: N915059004001
  • 999
    REPAIR KIT , Replaced By: A0004301407
  • 999
    REPAIR KIT BRAKE MASTER CYLINDER, WITH TRUCKS FROM CHASSIS 145737,ALSO INSTALLED ON,SEE FOOTNOTE 5,EXCEPT FOR,SEE FOOTNOTE 4,WITH BUSES FROM CHASSIS 018154 ALSOINSTALLED ON 017661,017829,EXCEPTO FOR SEE FOOTNOTE 7
  • 999
    REPAIR KIT BRAKE MASTER CYLINDER
  • 999
    PRESSURE REGULATOR , Replaced By: A0024316006
  • 999
    PRESSURE REGULATORWABCO
  • 999
    PRESSURE REGULATOR"WABCO",486597
  • 999
    REPAIR KIT PRESSURE REGULATOR WABCO
  • 999
    BRAKE BOOSTER ASSEMBLY , Replaced By: A0044300630
  • 999
    SEAL RING
  • 999
    RING DRAIN VALVE TO 000 432 08 07, NOT USED
  • 999
    FILLER CAP BUTTRESS THREAD
  • 999
    FILLER CAP , Replaced By: A0004315433
  • 999
    STRAINER
  • 999
    STRAINER , Replaced By: A0004314334
  • 999
    CLAMPTO 000 431 58 02
  • 999
    REPAIR KIT (BRAKE BOOSTER)
  • 999
    REPAIR KITTO 001 431 06 06,BOSCH 0 481 039 101,5 148812
  • 999
    SCREW PLUG , Replaced By: A0004315433
