Поз.
Артикул
Описание

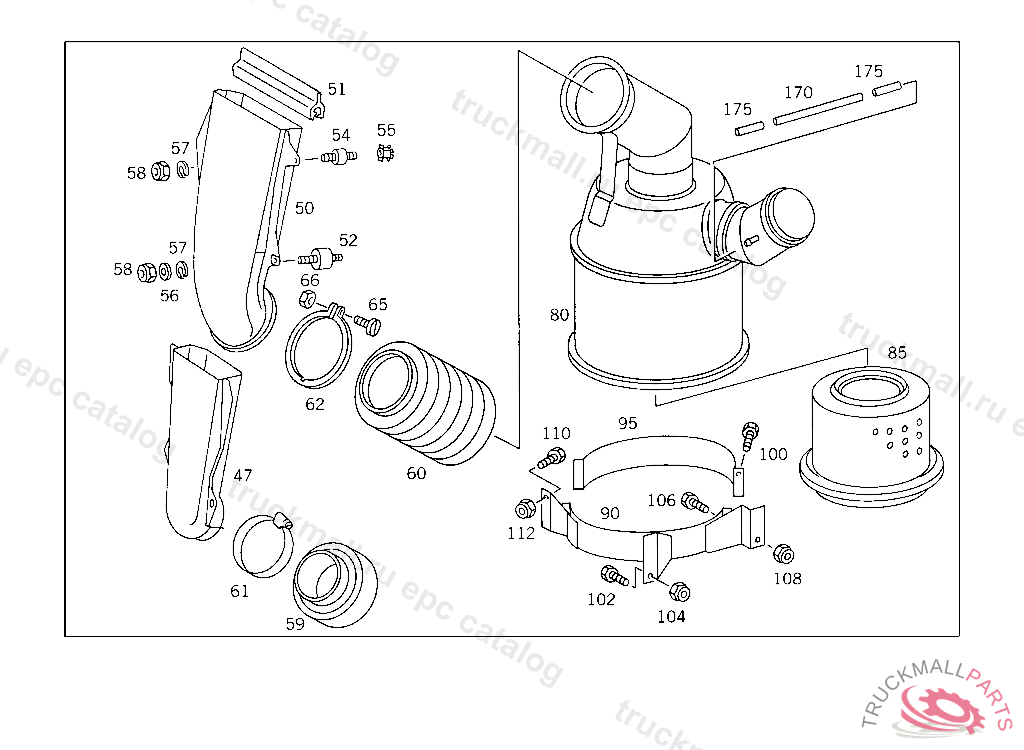

47
AIR INTAKE PIPE ,4 258299
47
AIR INTAKE PIPE ,4 258299
50
AIR INTAKE PIPE LEFT, UP TO IDENT NO.4 872645, FROM IDENT NO. SEE GROUP 83
50
AIR INTAKE PIPE RIGHT, UP TO IDENT NO.4 872645, FROM IDENT NO. SEE GROUP 83
52
BUFFER AIR INTAKE PIPE TO CAB, UP TO IDENT NO.4 872645, FROM IDENT NO. SEE GROUP 83
54
BUFFER AIR INTAKE PIPE TO CAB, UP TO IDENT NO.4 872645, FROM IDENT NO. SEE GROUP 83
55
NUT RETAINER AIR INTAKE PIPE TO CAB, UP TO IDENT NO.4 872645, FROM IDENT NO. SEE GROUP 83
56
WASHER , Replaced By: N000125008443
56
WASHER EXHAUST MUFFLER TO STRAP
57
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
58
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
58
NUT , Replaced By: N913004008001
59
BOOT ,4 256253
60
BOOT AIR CLEANER TO CAB
61
LOOM TIE BOOT TO AIR INTAKE PIPE,4 256253
62
CLAMP BOOT TO INTAKE PIPE
65
SCREW BOOT TO AIR DUCT AND TO AIR CLEANER
66
NUT BOOT TO AIR DUCT AND TO AIR CLEANER
80
AIR CLEANER ,4 256254
80
AIR CLEANER ,4 256254
80
AIR CLEANER ,4 256254
80
AIR CLEANER ,4 256254
85
FILTER ELEMENT AIR CLEANER MANN & HUMMEL
90
SUPPORT AIR CLEANER
90
SUPPORT OIL BATH AIR CLEANER MOUNTING
95
STRAP AIR CLEANER
100
SCREW , Replaced By: N304017008021
100
SCREW PIPE CLAMP
102
SCREW , Replaced By: N308676014020
102
SCREW BRACKET TO SIDE MEMBER M 14X1.5X35
104
NUT , Replaced By: N910113014001
104
NUT BRACKET TO SIDE MEMBER
106
SCREW DELIVERY AND SUCTION LINES TO FRAME M 12X40
108
NUT SUPPORT TO SIDE MEMBER
110
SCREW PROTECTIVE PLATE TO EXHAUST MUFFLER
112
NUT STRAP TO BRACKET
112
NUT , Replaced By: N910113010000
170
HOSE FROM WARNING INDICATOR TO AIR CLEANER, ORDER BY THE METER
175
HOSE LEAK LINE, ORDER BY THE METER
999
SCREW SUPPORT TO FENDER
999
SHEET METAL SCREW COVER PLATE TO CAB REAR PANEL
999
SCREW , Replaced By: N304017008018
999
BRACKET AIR INTAKE PIPE,LEFT FRONT,4 171308
999
BRACKET MUFFLER TO SIDE MEMBER,4 171308
999
SUPPORT
999
SUPPORT , Replaced By: A3815201433
999
ACCORDION TUBE ,4 775769
999
CAP , Replaced By: A0000180702
999
AIR CLEANER , Replaced By: A0090945202, +001A3855200301, +001A3815280443, +001A3815280191
999
AIR CLEANER ,4 256253, Replaced By: A0090945102, +001A3855200301, +001A3815280443, +001A3815280191
999
AIR CLEANER , Replaced By: A0090945002, +001A3855200201, +001A3815280443, +001A3815280191
999
AIR CLEANER ,4 256253, Replaced By: A0090944902, +001A3855200201, +001A3815280443, +001A3815280191
999
FILTER ELEMENT , Replaced By: A0010949404
999
GASKET , Replaced By: A1020180080
