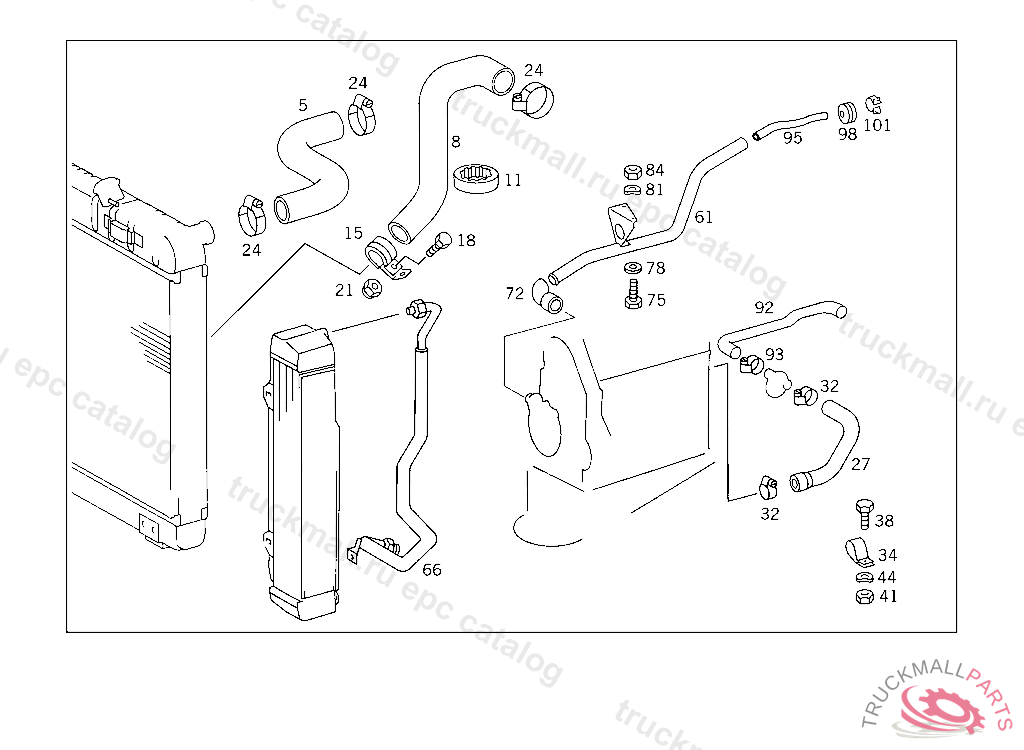

Поз.
Артикул
Описание
5
HOSE TOP
8
HOSE BOTTOM
15
BRACKET ,035231
18
SCREW BRACKET TO TAIL LAMP BRACKET
21
NUT TACHOGRAPH TO BRACKET
24
CLAMP , Replaced By: N000000000670
24
CLAMP
27
HOSE FROM ENGINE TO CONTROL VALVE
32
CLAMP PRESSURE REGULATOR
32
CLAMP HOSE TO SUCTION LINE AND TO OIL TANK 20-32X13 MM
32
CLAMP , Replaced By: N000000000667
34
CLAMP FEED LINE
38
SCREW BRACKET TO TAIL LAMP BRACKET
41
NUT TACHOGRAPH TO BRACKET
44
LOCK WASHER BRACKET TO STEERING COLUMN END
61
PIPE LINE FROM RETURN LINE TO ENGINE,015181
61
PIPE LINE FROM RETURN LINE TO ENGINE,015182
66
LINE OIL COOLER
72
HOSE , FROM CHASSIS: 010 001717 110 005012
92
HOSE HEAT EXCHANGER
93
CLAMP HOSE TO SUCTION LINE AND TO OIL TANK 20-32X13 MM
93
CLAMP , Replaced By: N000000000667
95
HOSE ,015182
98
GROMMET MAIN CABLE HARNESS THRU WINDOW SILL 36X25 MM
