Поз.
Артикул
Описание
5

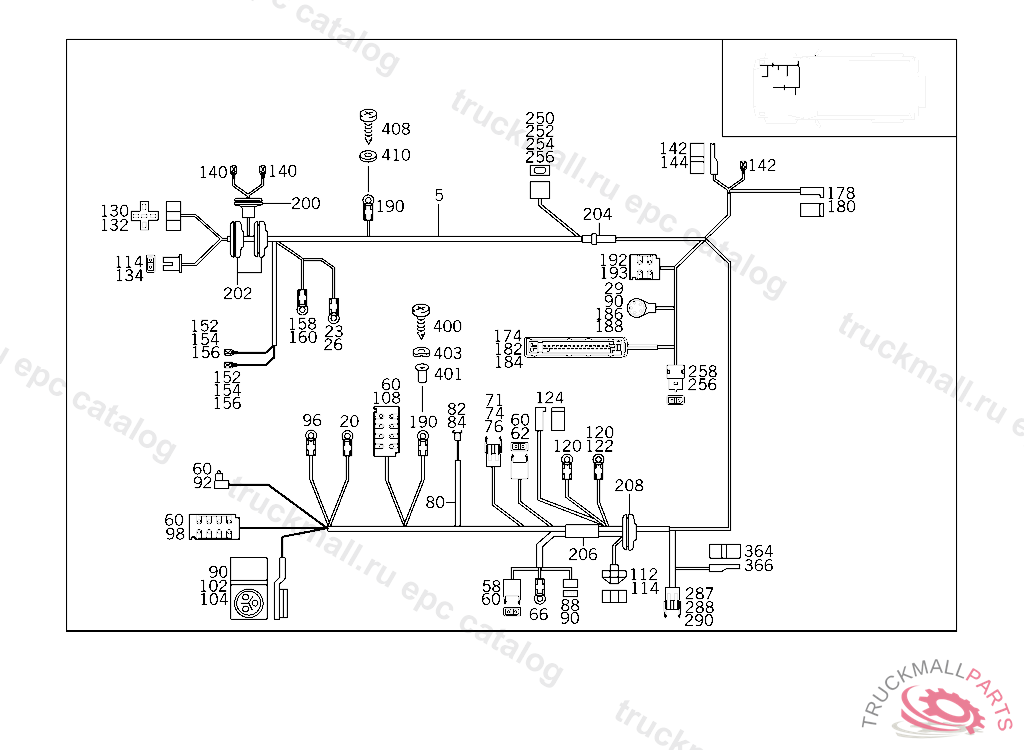

CABLE HARNESS MAIN CABLE HARNESS
5
CABLE HARNESS MAIN CABLE HARNESS
20
ELECTRIC CABLE CONTROL UNIT EZL
23
CABLE SHOE
26
LOOM TIE LINE MOUNTING 280 MM
29
COVER (TRIMMER PLUG)
29
CABLE HARNESS , Replaced By: A0225458828, +001A0025459926, +001A0135454728
58
PIN BUSHING HOUSING BIPOLAR
60
ROUND PIN BUSHING WITH DETENT AND WITH CATCH FOR HOUSING 2.5 MM2
60
ROUND PIN BUSHING , Replaced By: A0035452626
66
CABLE SHOE
71
PLUG WARM-UP SENDER,COLD START VALVE,AIRFLOW SENSOR PLATE CONTACT OR AIR SLIDE
74
BOOT SIDE MARKER LAMP
76
CONTACT SPRING , Replaced By: A0045455326
76
FLAT PIN BUSHING
76
CONTACT SPRING LESS DETENT,BUT WITH CATCH FOR HOUSING 1.0-2.5 MM2
80
ELECTRIC CABLE REFRIGERANT TEMPERATURE SENDER UNIT
82
PLUG. PIN BUSHING HOUSING NTC FEELER
84
GROMMETTO 014 545 07 28
88
PIN BUSHING HOUSING MICRO-SWITCH
90
ROUND PIN BUSHING2.5 MM2
90
PLUG SOCKET , Replaced By: A0025459926
92
PIN BUSHING HOUSING UNIPOLAR, HEAT SENSOR CONNECTION
96
ELECTRIC CABLE CONTROL UNIT EZL
98
PIN BUSHING HOUSING REFRIGERANT COMPRESSOR
102
PIN BUSHING HOUSING AIR CLEANER INTAKE PIPE, ONLY ON RETROFIT/CATALYST VEHICLES
104
GASKETTO 124 540 13 81, ONLY ON RETROFIT/CATALYST VEHICLES
108
PIN BUSHING HOUSING REFRIGERANT COMPRESSOR
112
PIN BUSHING HOUSING 5-POLE
114
PIN BUSHING , Replaced By: A0075458226
114
SOCKET. PIN BUSHING LESS DETENT,BUT WITH CATCH FOR HOUSING 2,5 MM2
120
CABLE SHOE CABLE HARNESS CONNECTION/SCREW-CONNECTION
120
CABLE SHOEA 6-2,5
122
GROMMET3.0 MM
124
PIN BUSHING HOUSING UNIPOLAR
130
PIN BUSHING HOUSING 3-POLE
132
PIN BUSHING OFFSET 4 MM2
132
PIN BUSHING , Replaced By: A0075457426
134
PIN BUSHING HOUSING
140
PIN BUSHING WITH DETENT,LESS CATCH FOR HOUSING 6 MM2,5 097182
142
PIN BUSHING HOUSING UNIPOLAR
144
PIN BUSHING HOUSING BIPOLAR
152
GROMMET
154
BOOT HORN
156
PIN BUSHING WITH DETENT,LESS CATCH FOR HOUSING 6 MM2,5 097182
156
PIN BUSHING , Replaced By: A0005456626
156
PIN BUSHING LESS DETENT,BUT WITH CATCH FOR HOUSING 1-2.5 MM2
158
BOOTTO 007 545 07 28
160
CABLE SHOE
174
PLUG SOCKET , Replaced By: A0005451981, +001A0005454903, +001A0005450839, +001A0005451339, +001A0005452140, +001A0005450973, +001N007971002206, +001N007981002208
174
SHELL TYPE HANDLE
178
PIN BUSHING WITH DETENT,LESS CATCH FOR HOUSING 6 MM2,5 097182
180
PIN BUSHING HOUSING UNIPOLAR
182
SHELL TYPE HANDLE
182
PLUG SOCKET , Replaced By: A0005451981, +001A0005454903, +001A0005450839, +001A0005451339, +001A0005452140, +001A0005450973, +001N007971002206, +001N007981002208
184
CONTACT SPRING , Replaced By: A0045455326
184
FLAT PIN BUSHING
184
CONTACT SPRING LESS DETENT,BUT WITH CATCH FOR HOUSING 1.0-2.5 MM2
186
PIN BUSHING HOUSING 7-POLE
188
COVER (TRIMMER PLUG)
188
COVER , Replaced By: A0225458828
190
CABLE SHOE CABLE HARNESS CONNECTION/SCREW-CONNECTION
190
CABLE SHOEA4X3.4 MM
192
PIN BUSHING HOUSING 4-POLE
193
SOCKET. PIN BUSHING LESS DETENT,BUT WITH CATCH FOR HOUSING 2,5 MM2
193
PIN BUSHING , Replaced By: A0075458226
193
PLUG. PIN BUSHING LESS DETENT,BUT WITH CATCH FOR HOUSING 2.5 MM2
200
GROMMET , Replaced By: A0029971081
200
GROMMET HEADLAMP WIPER/WASHER
202
GROMMET HEADLAMP
204
GROMMET
206
BRACKET , UP TO END OF MODEL YEAR'84 CALIFORNIA
208
GROMMET
250
PLUG HOUSING
252
PLUG PIN
254
PIN BUSHING HOUSING TELL-TALE LAMP ASD
256
CONTACT BUSHING , Replaced By: A0035450626
256
ROUND PIN BUSHING LIGHT SWITCH 2,5 MM
258
PIN BUSHING HOUSING TELL-TALE LAMP ASD
287
COVERTO 010 545 10 28
288
PIN BUSHING HOUSING BIPOLAR
290
ROUND PIN BUSHING2.5 MM2
290
ROUND PIN BUSHING WITH DETENT AND WITH CATCH FOR HOUSING 2.5 MM2
364
PIN BUSHING HOUSING UNIPOLAR
366
PIN BUSHING WITH DETENT,LESS CATCH FOR HOUSING 6 MM2,5 097182
400
SCREW COVER PLATE TO COVER PLATE M 6 X 12
401
NUT SPRING-LOADED PUSH ROD
403
SPRING WASHER LICENSE PLATE TO BRACKET
408
SHEET METAL SCREW MODULE TO HOUSING
408
SHEET METAL SCREW , Replaced By: N000000000453
410
WASHER , Replaced By: N000125004319
410
WASHER BRACKET TO SUPPORT
