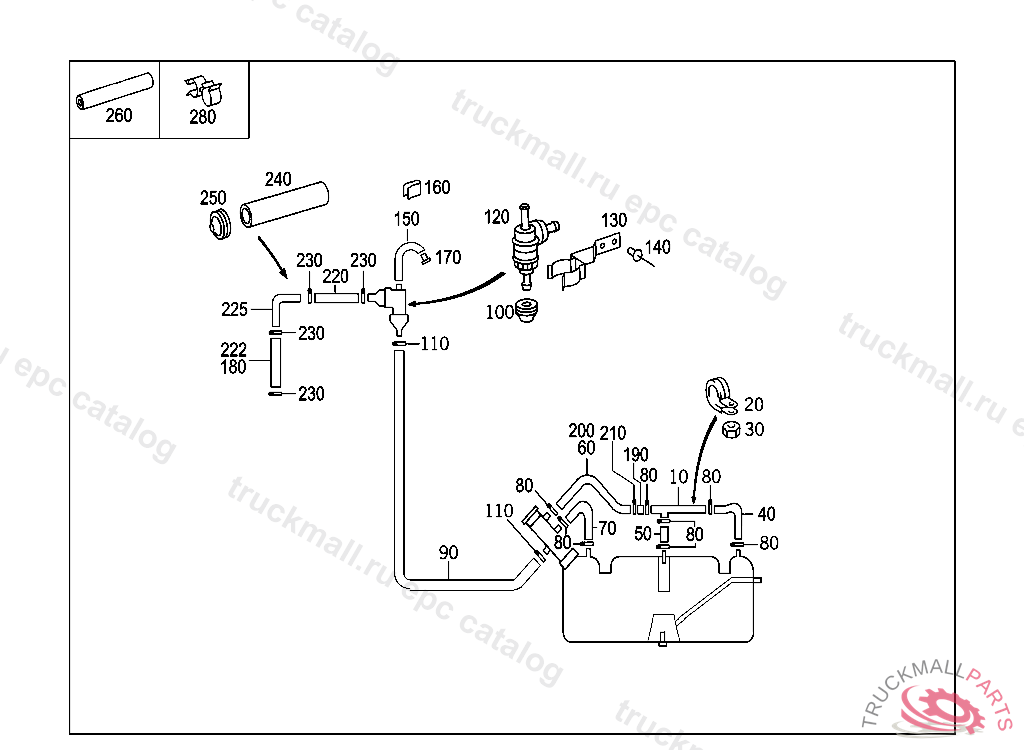

Поз.
Артикул
Описание
10
BREATHER AT FRAME ABOVE FUEL TAK
20
CLAMP DELIVERY AND SUCTION LINES TO ENGINE, FRONT
30
NUT SPRING-LOADED PUSH ROD
40
HOSE FROM LEFT FUEL TANK TO DEAERATION PIPE
50
HOSE ADDITIONAL FUEL TANK, ORDER BY THE METER
60
HOSE ADDITIONAL FUEL TANK, ORDER BY THE METER
70
HOSE ADDITIONAL FUEL TANK, ORDER BY THE METER
80
LOOM TIE FROM COOLING PIPE TO PUMP
90
HOSE BETWEEN BREATHER AND GRAVITIY VALVE
100
GROMMET
110
LOOM TIE
120
VALVE COMBINATION VALVE,906515
130
BRACKET AT VALVE
140
RIVET TYPE PLATE
150
HOSE *** 30 MM
160
CLIP BELT LOCK TO SEAT RAIL
170
BOOTTO 116 540 01 81
180
HOSE FUEL LINE TO TANK 13.5 X 7.5 MM, ORDER BY THE METER
220
HOSE FUEL LINE TO TANK 13.5 X 7.5 MM, ORDER BY THE METER
230
LOOM TIE
230
CLAMP BETWEEN SENDER UNIT & FEED LINE
260
HOSE (VENT VALVE), 055662 903941
280
HOSE BRACKET. LOOM TIE
