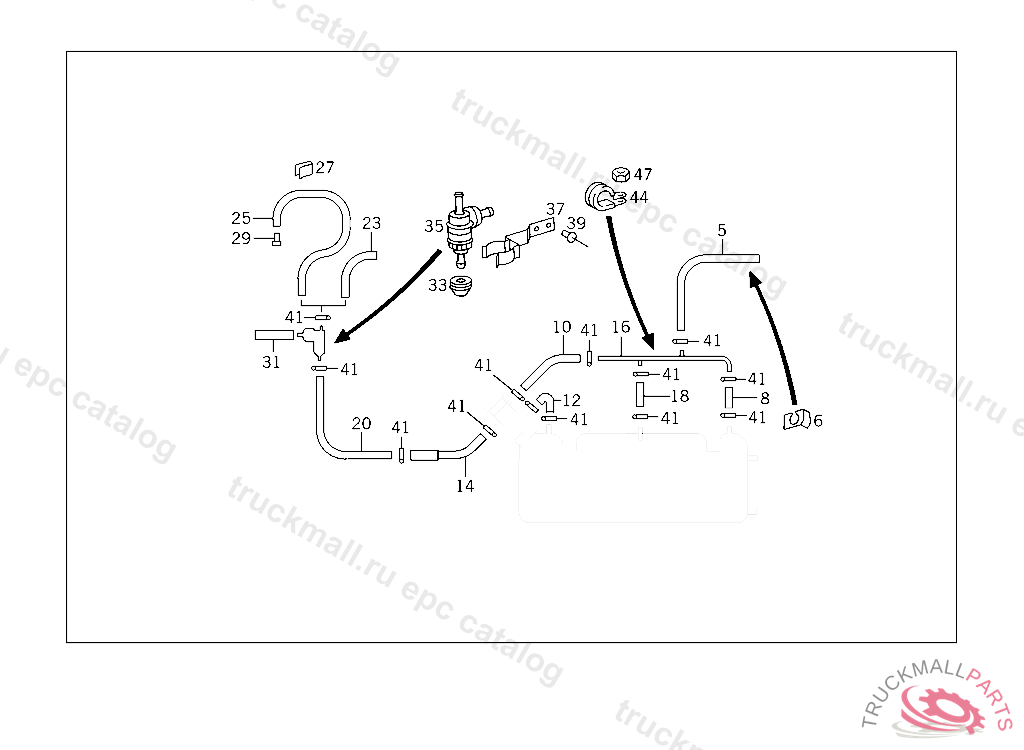

Поз.
Артикул
Описание
5
HOSE LEAK LINE, ORDER BY THE METER
6
FUSE. LOCK GUIDE WHEEL ROTAT. SPEED SENSOR WIRES AND MOUNT. FOR TRANSV. FRAME PIPE
8
HOSE ADDITIONAL FUEL TANK, ORDER BY THE METER
10
HOSE ADDITIONAL FUEL TANK, ORDER BY THE METER
12
HOSE ADDITIONAL FUEL TANK, ORDER BY THE METER
14
HOSE FUEL LINE TO TANK 13.5 X 7.5 MM, ORDER BY THE METER
16
BREATHER AT FRAME ABOVE FUEL TAK
18
HOSE FROM LEFT FUEL TANK TO DEAERATION PIPE
20
HOSE BETWEEN BREATHER AND GRAVITIY VALVE
23
HOSE TO ELEMENT AT FRONT SEAT
25
HOSE *** 30 MM
27
CLIP BELT LOCK TO SEAT RAIL
29
BOOTTO 116 540 01 81
31
HOSE (VENT VALVE), 055662 903941
33
GROMMET
35
VALVE COMBINATION VALVE,906515
37
BRACKET GRAVITY VALVE
39
RIVET BRACKET TO CAB, 055661 903740
41
CLAMP CHECK VALVE,K 169122
41
LOOM TIE
41
LOOM TIE
41
HOSE BRACKET. LOOM TIE
41
LOOM TIE FUEL HOSE TO RETURN LINE
44
CLAMP DELIVERY AND SUCTION LINES TO ENGINE, FRONT
47
NUT BALL PIVOT TO LEVER
