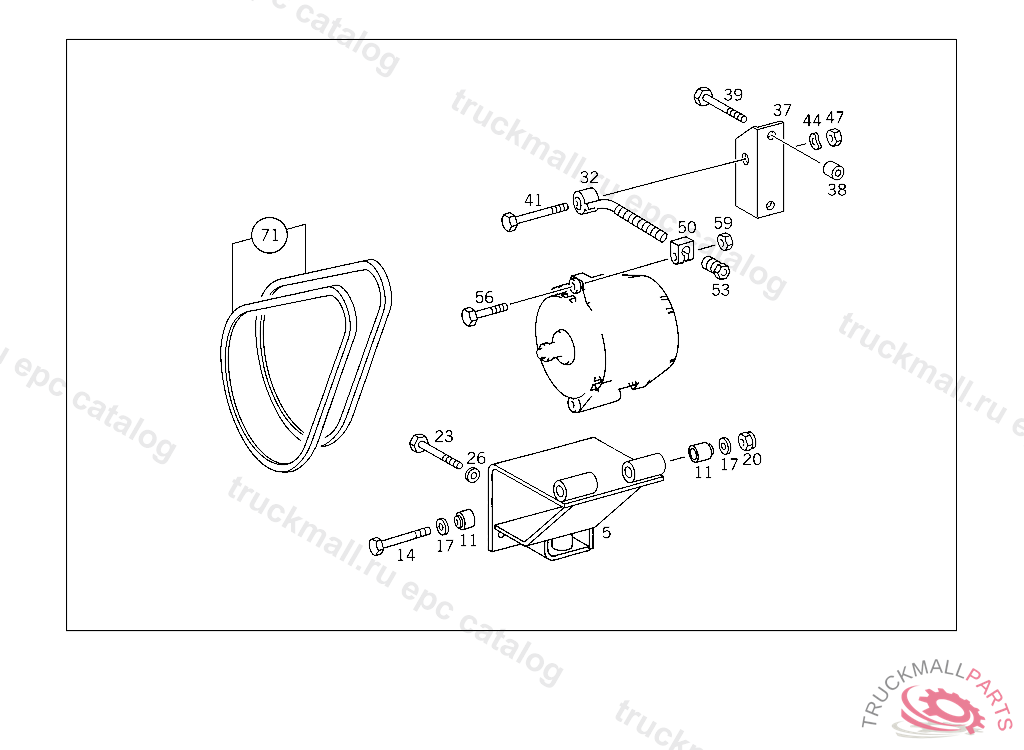

Поз.
Артикул
Описание
5
SUPPORTTO 476 150 84 50
11
BUSHING
14
SCREW ALTERNATOR TO SUPPORT
14
SCREW SPARE WHEEL TO CROSS MEMBER M 12X1,5X110
17
WASHER HUB CAP TO BRACKET
20
NUT ALTERNATOR TO SUPPORT
23
SCREW BRACKET TO RIGHT SIDE MEMBER
23
SCREW REINFORCEMENT TO REAR PART
26
WASHER SHIFT LEVER TO PIVOT PIN
32
CLAMPING BOLT CLAMPING BOLT
37
BRACKET CLAMPING BOLT
38
SPACER TUBE BRACKET AND FILLER NECK ON WATER PUMP
39
SCREW FENDER TO BRACKET, NOT USED
41
SCREW BRACKET TO TRANSMISSION,D 203092
44
SPRING WASHER. LOCK RING SHIFTING ROD TO BRACKET
47
NUT , Replaced By: N304032010002
50
CLAMPING PIECE TIGHTENER PULLEY TO LEVER
50
CLAMPING PIECE CLAMPING BOLT TO ALTERNATOR
53
NUT ALTERNATOR
56
SCREW CLAMPING BOLT M12X1,5X45X20
59
HEX. NUT. NUT FUEL TANK TO CONSOLE,167609
71
V-BELT BETWEEN VIBRATION DAMPER AND TIGHTENER PULLEY,212369 SET2 PIECES
999
BUSHINGTO 355 150 03 72,366 150 13 72
999
CLAMPING BOLT CLAMPING BOLT, NOT USED
999
BRACKET , NOT USED
999
SUPPORT ALTERNATOR TO 476 150 76 50, NOT USED
999
SCREW TORSION BAR TO SHACKLE,5 903514
