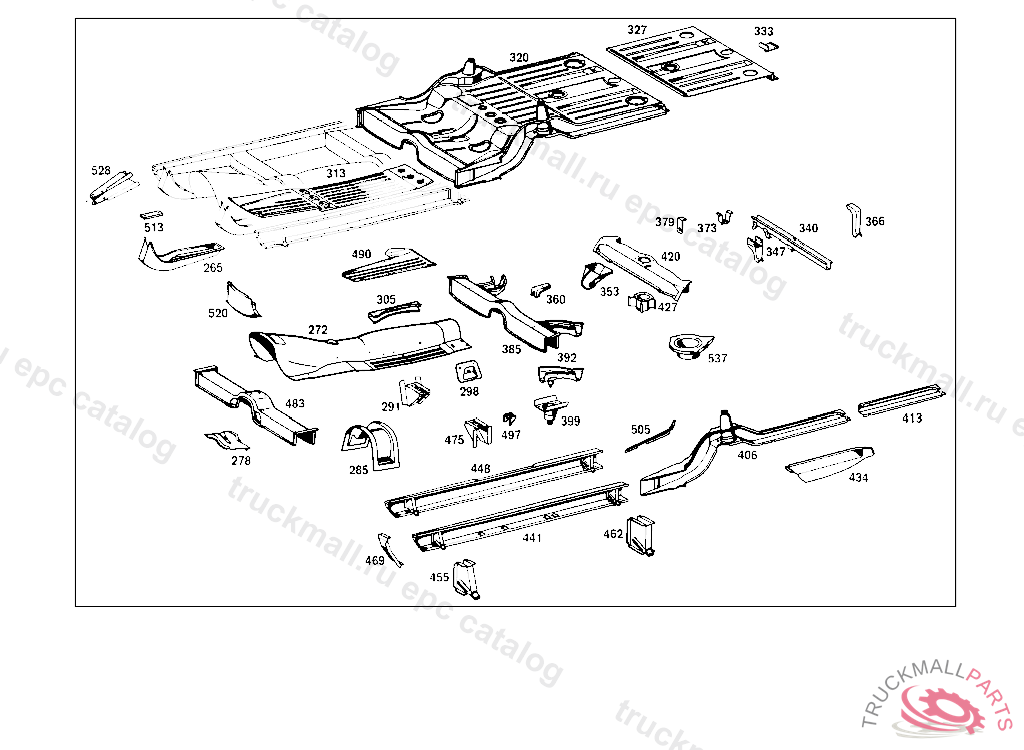

Поз.
Артикул
Описание
265
SIDE MEMBER , Replaced By: A1086100113
272
TUNNEL , 000,001,004,010 UP TO CHASSIS 130557,100,101,104,110 UP TO CHASSIS 225647
285
TAKE-UP DEVICE , 000,001,004,010 FROM CHASSIS 130558,100,101,104,110 FROM CHASSIS 225648
291
CONSOLE FRONT SEAT, 000,001,004,010 UP TO CHASSIS 130557,100,101,104,110 UP TO CHASSIS 225647
305
GUIDE HAND BRAKE INTERMEDIATE LEVER, 000,001,004,010 UP TO CHASSIS 130557,100,101,104,110 UP TO CHASSIS 225647
313
FLOOR LEFT, 000,001,004,010 UP TO CHASSIS 130557,100,101,104,110 UP TO CHASSIS 225647
320
FLOOR , 000,001,004,010 UP TO CHASSIS 130557,100,101,104,110 UP TO CHASSIS 225647, Replaced By: A1106100861, +001A1106830224
327
FLOOR
333
REINFORCEMENT , Replaced By: A1106100725
333
REINFORCEMENT FUEL TANK MOUNTING
340
CROSS MEMBER , Replaced By: A1106100216
340
CROSS MEMBER
347
BRACKET EXHAUST PIPE SUSPENSION
353
CONSOLE REAR AXLE
360
BRACKET BRAKE CABLE
366
BRACKET EXHAUST PIPE SUSPENSION
373
BRACKET DISTRIBUTOR BRAKE HOSE
379
BRACKET BRAKE HOSE
385
CROSS MEMBER , 000,001,004,010 FROM CHASSIS 130558-140938,100,101,104,110 FROM CHASSIS 225648-243417,002,003,005,011 UP TO CHASSIS 004976
392
DIAGONAL GIRDER LEFT
399
BELL HUB
406
SIDE MEMBER REAR LEFT
406
SIDE MEMBER , Replaced By: A1106101510
413
TUBE
420
CROSS MEMBER , 000,001,004,010 UP TO CHASSIS 188251,100,101,104,110 UP TO CHASSIS 352225,002,003,005,011 UP TO CHASSIS 032035, Replaced By: A1106100217, +002A1269840125
427
CUP
434
END PIECE LEFT
448
SUPPORT OUTSIDE LEFT
455
TAKE-UP DEVICE FRONT
455
TAKE-UP DEVICE , Replaced By: A1106100052
462
TAKE-UP DEVICE , THIS NOTE OF REPLACEMENT APPLIES ONLY TO THE ITEM LISTED OPPOSITE, Replaced By: A1106100452
462
TAKE-UP DEVICE REAR
469
END PIECE LEFT
475
CONSOLE OUTSIDE, 000,001,004,010 UP TO CHASSIS 130557,100,101,104,110 UP TO CHASSIS 225647
483
CROSS MEMBER , 000,001,004,010 UP TO CHASSIS 130557,100,101,104,110 UP TO CHASSIS 225647
490
PLATE LEFT
497
CONSOLE
520
PLATE LEFT
528
MOUNTING IN CONNECTION PIECE FOR RIGHT SIDE MEMBER, 010 FROM CHASSIS 023661 ALSO INSTALLED ON,SEE FOOTNOTE 017,012 FROM CHASSIS 049856 ALSO INSTALLED ON,SEE FOOTNOTE 018
537
SPRING CASE TOP
999
ADHESIVE TAPE , Replaced By: A0009899885
999
ADHESIVE TAPE
999
ADHESIVE TAPE , THIS NOTE OF REPLACEMENT APPLIES ONLY TO THE ITEM LISTED OPPOSITE, Replaced By: A0009899885
999
SIDE MEMBER , 000,001,004,010 FROM CHASSIS 074939,100,101,104,110 FROM CHASSIS 11721
999
BELL HUB , Replaced By: A1103500633
999
CROSS MEMBER , Replaced By: A1106100117
999
GUIDE , Replaced By: A1106100191
999
DIAGONAL GIRDER RIGHT
999
SIDE MEMBER , Replaced By: A1106110321
999
SIDE MEMBER , Replaced By: A1106110821
999
SIDE MEMBER , 000,001,004,010 UP TO CHASSIS 074938,100,101,104,110 UP TO CHASSIS 117220, Replaced By: A1106100713
999
SIDE MEMBER , Replaced By: A1106101610
999
SIDE MEMBER , Replaced By: A1106100813, +001A1106110011
999
SIDE MEMBER , 000,001,004,010 FROM CHASSIS 074939,100,101,104,110 FROM CHASSIS 11721
999
END PIECE RIGHT, 000,001,004,010 UP TO CHASSIS 130557,100,101,104,110 UP TO CHASSIS 225647
999
TUBE , Replaced By: A1106110821
999
END PIECE RIGHT
999
TUBE
999
FLOOR , THIS NOTE OF REPLACEMENT APPLIES ONLY TO THE ITEM LISTED OPPOSITE, Replaced By: A1106160462
999
FLOOR RIGHT, 000,001,004,010 UP TO CHASSIS 130557,100,101,104,110 UP TO CHASSIS 225647
999
SUPPORT OUTSIDE RIGHT
999
PLATE RIGHT
999
PLATE RIGHT
