Mercedes A0009972081 - Втулка

280 SL 113.044

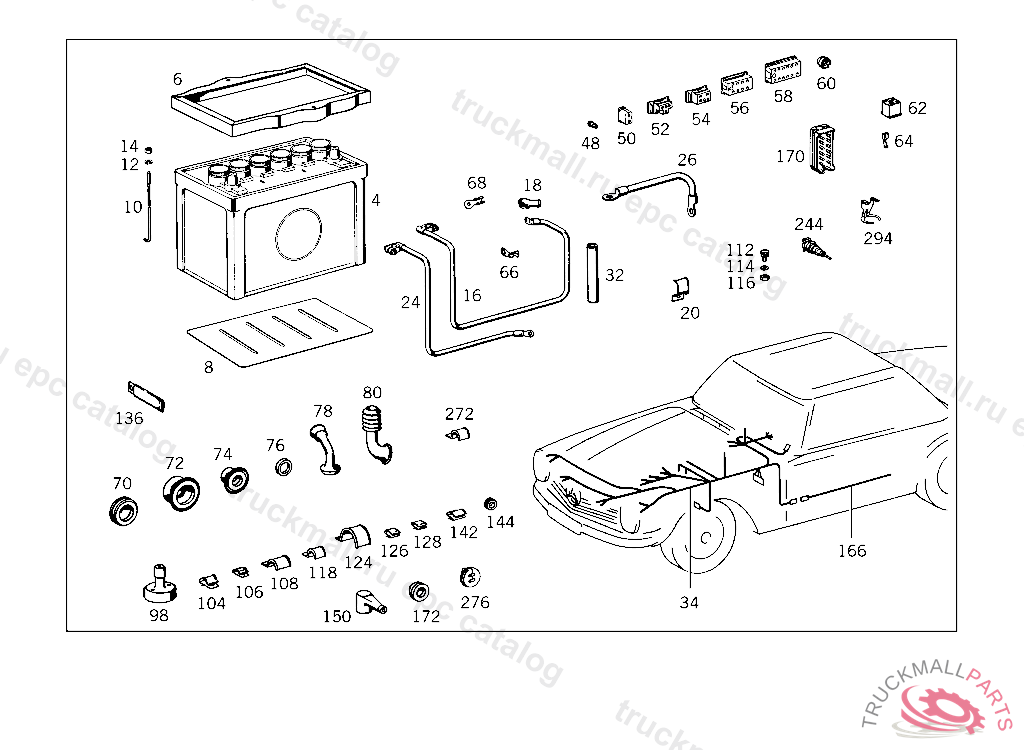

54 ELECTRICAL EQUIPMENT AND INSTRUMENTS - 001 ELECTRICAL EQUIPMENT AND INSTRUMENTS IL. 1
  • Поз.
    Артикул
    Описание
  • 4
    BATTERY
  • 6
    MOUNTING FRAME
  • 8
    BOTTOM , 011695
  • 10
    CLAMPING SCREW , 000,001,010 FROM CHASSIS 011696-130557, 100,101,110 FROM CHASSIS 099642
  • 12
    LOCK WASHER EXTENSIBLE BRAKE VALVE TO CAB
  • 12
    LOCK WASHER CONTROL LEVER TO INJECTION PUMP LEVER
  • 14
    NUT
  • 14
    NUT CYLINDER TO BRACKET TO0002902112
  • 14
    NUT FROM TURNBUCKLE NUT TO INTERMEDIATE LEVER
  • 16
    POSITIVE CABLE
  • 16
    POSITIVE CABLE , Replaced By: A1135400130
  • 18
    BOOT , Replaced By: A1165460135
  • 18
    BOOT
  • 20
    CLAMP MAIN CABLE HARNESS TO LEFT WHEEL ARCH PANEL, NO LONGER AVAILABLE
  • 24
    NEG. CABLE , Replaced By: A2015400031
  • 24
    NEG. CABLE FROM BATTERY NEG. POLE TO GROUND 220 MM
  • 26
    NEG. CABLE , Replaced By: A1165400531
  • 26
    NEG. CABLE , Replaced By: A1105400131
  • 26
    NEG. CABLE FROM SIDE MEMBER TO ENGINE
  • 32
    INSULATING HOSE , Replaced By: A0005462930
  • 32
    INSULATING HOSE150 MM, ORDER BY THE METER FROM CHASSIS: 010 105672
  • 34
    CABLE HARNESS MAIN CABLE HARNESS, 013650
  • 34
    CABLE HARNESS MAIN CABLE HARNESS, 002980
  • 34
    CABLE HARNESS MAIN CABLE HARNESS, 002980
  • 34
    CABLE HARNESS , 043 FROM CHASSIS 002980
  • 34
    CABLE HARNESS , 043 FROM CHASSIS 002980
  • 34
    CABLE HARNESS MAIN CABLE HARNESS, 014643
  • 48
    PIN BUSHING HOUSING UNIPOLAR, FROM CHASSIS:107.023 000429 107.043 006834 107.044 004104
  • 48
    PLUG
  • 48
    PLUG
  • 50
    PLUG , Replaced By: A0025454928
  • 50
    PLUG , Replaced By: A0085453728, +002A0035452626, +001A0085453828
  • 50
    PIN BUSHING HOUSING , 10/20 UP TO CHASSIS 4 411810,50/60 UP TO CHASSIS 4 414810
  • 52
    PLUG
  • 54
    PLUG , Replaced By: A0075450028, +004A0035452626, +001A0095452128
  • 54
    PIN BUSHING HOUSING 4-POLE, UP TO CHASSIS: 114.005,007,008,015,017 049721 114.010 044486 114.021 003371 114.022 007377 114.023 001704 FROM CHASSIS SEE 10948
  • 54
    PLUG TRIPLE
  • 54
    PIN BUSHING HOUSING 4-POLE, BLOWER MOTOR
  • 56
    PIN BUSHING HOUSING 4-POLE
  • 56
    PLUG , THIS NOTE OF REPLACEMENT APPLIES ONLY TO THE ITEM LISTED OPPOSITE, Replaced By: A0065458028, +006A0015453726, +001A0095453028
  • 58
    PLUG 12-POLE, 000,001,010 UP TO CHASSIS 130557, 100,101,110 UP TO CHASSIS 225647
  • 60
    PLUG
  • 62
    PLUG , Replaced By: A0025459528
  • 62
    PIN BUSHING HOUSING 3-POLE,4 483482
  • 64
    CABLE SHOE DOOR CONTACT SWITCH
  • 64
    CABLE SHOE , 010,10/50 FROM CHASSIS 066176,010,12/52 FROM CHASSIS 067209 ALSO INSTALLED ON 067205,010,20/60 FROM CHASSIS 065673,010,22/62 F ROM CHASSIS 068684 012,10/50 FROM CHASSIS 151592 ALSO INSTALLED ON,SEE FOOTNOTE 075,012,12/52 FROM CHASSIS 153777 ALSO INSTALLED ON 153758,153760 ,153771 012,20/60 FROM CHASSIS 148880 ALSO INSTALLED ON 148827,148837,148844,148830,148852,012,22/62 FROM CHASSIS 158514
  • 66
    CABLE SHOE
  • 68
    CABLE SHOE
  • 70
    GROMMET 34 MM
  • 72
    GROMMET
  • 74
    GROMMET BLINKER LAMP BRANCH-OFF
  • 76
    SEAL RING
  • 78
    PROTECTIVE TUBE
  • 80
    PROTECTIVE TUBE LEFT
  • 80
    PROTECTIVE TUBE , Replaced By: A1155460085
  • 98
    SWITCH (FOOT DIMMER SWITCH) BOSCH, 000,001,010 UP TO CHASSIS 130557, 100,101,110 UP TO CHASSIS 225647
  • 104
    CLIP
  • 106
    CLIP
  • 108
    CLAMP , Replaced By: A3449957120
  • 108
    CLAMP , 000,001,010 FROM CHASSIS 130558, 100,101,110 FROM CHASSIS 225648
  • 108
    CLIP
  • 108
    CLIP FLEXIBLE SHAFT TO WHEELHOUSE, 086 007397 093 010089 183 NOT FOR SWEDEN 028930 183 SWEDEN F 001867 ALSO INSTALLED ON 028960 190 030466 ALSO INSTALLED ON 030442 193 005964 280 NOT FOR SWITZERLAND 009681 ALSO INSTALLED ON 009608,009626-009679 280 SWITZERLAND 009208 283 NOT FOR SWITZERLAND 019905 ALSO INSTALLED ON 019489,019510,019514,019524,019528-019534,019541,019543,019548-019550,019554-019575,019587,019590, 019593,019603,019604,019613,019614,019625-019638,019646,019649-019712,019715-019814,019821,019830- 019894,019899,019901. 283 SWITZERLAND F 000423 ALSO INSTALLED ON 021312,F 000333
  • 112
    SCREW PUMP TO BRACKET
  • 112
    SCREW COVER PLATE TO BRACKET
  • 112
    SCREW LINES UNDER FUEL TANK
  • 114
    LOCK WASHER CONTROL LEVER TO INJECTION PUMP LEVER
  • 116
    NUT CYLINDER TO BRACKET TO0002902112
  • 116
    NUT SPRING-LOADED PUSH ROD
  • 118
    CLAMP TO MOUNT MAIN CABLE HARNESS
  • 124
    CLAMP MAIN CABLE HARNESS TO LEFT SIDE PART
  • 126
    CLIP HOSE TO CAB,4 238841
  • 128
    CLIP FUEL LINE TO CAB CONSOLE
  • 136
    BRACKET , FROM CHASSIS:108.012 073611 108.016 016714 108.018,019 015927 UP TO CHASSIS: 108.019 033277
  • 136
    BRACKET MAIN CABLE HARNESS TO BODY
  • 142
    CLIP HOSE TO CAB,4 238841
  • 142
    CLIP CABLE HARNESS TO ROOF RAIL
  • 144
    GROMMET ,D 314239
  • 150
    BOOT , 107.042 011568 EXCEPT FOR 010107,010328,010378,011305,011341,011348,011356,011418,011426,011434,011436,011444,011454,011455, 011464,011472,011473,011476,011480,011494,011496,011503,011504,011513,011514,011518,011519,011520, 011526,011528,011531,011533,011535,011537,011538,011539,011541-011567. 107.045 009131 EXCEPT FOR 004581,007703,008068,008344,008400,008401,008455,008627,008724,008836,008842,008885,008911,008920, 008925,008958,008967,008989,008994,009001,009100,009128. 107.046 000986 EXCEPT FOR 000518,000621,000841,000897,000899,000921,000933,000936,000938,000940,000942,000944,000956,000964, 000967,000970,000974-000985.
  • 166
    CABLE HARNESS TAIL LAMPS
  • 170
    PLUG WITH DETENT AND WITH CATCH FOR HOUSING 2.5 MM,5 255829
  • 172
    GROMMET 34 MM
  • 244
    PLUG SOCKET AT COVERING
  • 272
    CLAMP , Replaced By: A3449957120
  • 276
    GROMMET HOSE GUIDE, 000,001,004,010 UP TO CHASSIS 101085,100,101,104,110 UP TO CHASSIS 166807
  • 276
    GROMMET FLEXIBLE SHAFT THRU FIRE WALL, 014,10/50,12/52 UP TO CHASSIS 049461 NOT INSTALLED ON,SEE FOOTN.76 021 UP TO CHASSIS 049448 NOT INSTALLED ON,SEE FOOTN.77 023 UP TO CHASSIS 049722 NOT INSTALLED ON,SEE FOOTN.78
  • 294
    CLIP , FROM CHASSIS: 023 007245 ALSO INSTALLED ON: 007095,007113,007119,007120,007156,007228,007231,007240,007242,007243.
  • 999
    NUT
  • 999
    LAMP SOCKET INFLATION PRESSURE CONTROL SYSTEM
  • 999
    SOCKET SPEEDOMETER LIGHTING
  • 999
    SWITCH (FOOT DIMMER SWITCH)
  • 999
    SWITCHBOSCH
  • 999
    PLUG , Replaced By: A0055451328
  • 999
    FUSE , Replaced By: N072581008101
  • 999
    BOOT , Replaced By: A0005463335
  • 999
    GROMMET , Replaced By: A0005460837
  • 999
    GROMMET , Replaced By: A0005460937
  • 999
    GROMMET , 003 038504 EXCEPT FOR 038143,038206,038214,038216-038220,038223-038227,038229,038231,038232,038234-038311,038313,038314, 038316-038324,038326-038330,038332-038335,038337,038338,038340,038342,038343,038345-038350,038352- 038368,038372-038374,038376,038380,038382,038383,038385-038387,038389-038397,038401-038405,038408- 038424,038426-038494,038496-038502.
  • 999
    BOOT HEATER PLUGS
  • 999
    CABLE SHOE
  • 999
    BATTERY ACID BOTTLE SET , Replaced By: A0009891315
  • 999
    BATTERY ACID BOTTLE SETTO 001 541 79 01
  • 999
    GROMMET CAB ROOF
  • 999
    LOOM TIE , UP TO CHASSIS: 108.012 UNTIL PRODUCTION STOP 108.016 042417 108.018,019 043374 109.016 002452
  • 999
    LOOM TIE , Replaced By: A0019974390
  • 999
    LOOM TIE TO MOUNT PLASTIC PIPING
  • 999
    TEMPERATURE GAUGE
  • 999
    PLUG , Replaced By: A0055451328
  • 999
    PLUG , Replaced By: A0085453728, +002A0035452626, +001A0085453828
  • 999
    PLUG , Replaced By: A0045458628
  • 999
    CLIP PLUG TO REAR PILLAR
  • 999
    PLUG , Replaced By: A0085450828, +002A0015454426, +001A0085451128
  • 999
    PLUG. PIN BUSHING HOUSING IGNITION/STARTING SWITCH, 8-POLE
  • 999
    PLUG , Replaced By: A0075450028, +004A0035452626, +001A0095452128
  • 999
    PLUG , THIS NOTE OF REPLACEMENT APPLIES ONLY TO THE ITEM LISTED OPPOSITE, Replaced By: A0065458028, +006A0015453726, +001A0095453028
  • 999
    PIN BUSHING HOUSING 4-POLE, UP TO CHASSIS: 114.005,007,008,015,017 049721 114.010 044486 114.021 003371 114.022 007377 114.023 001704 FROM CHASSIS SEE 10948
  • 999
    PIN BUSHING HOUSING ELECTRIC CHANGE-OVER VALVE
  • 999
    PLUG TRIPLE
  • 999
    CLAMP , Replaced By: A1119950042
  • 999
    CABLE HARNESS FROM CABLE CONNECTOR TO STARTING MOTOR
  • 999
    RUBBER PAD , 000 130185 003 066450 007 053317 083 002303 086 001761 093 001873 102,103 113214 105 135078 183 004048 190 005028, Replaced By: A1234280085, +001A1239950222
  • 999
    CLAMP , Replaced By: A1409950222
  • 999
    GROMMET BACK-UP LIGHT
  • 999
    ELECTRIC CABLE OIL PRESSURE GAUGE
  • 999
    BRACKET
  • 999
    PIPE LINE OIL PRESSURE GAUGE, 089078
  • 999
    PIPE LINE OIL PRESSURE GAUGE, 089078
  • 999
    BRACKET ALTERNATOR CABLE THRU SIDE MEMBER
  • 999
    CLAMP WIRE CABLE TO CAB, FOR USE WITH SHORT VERSION OF MERCEDES-BENZ CAB
  • 999
    CLAMP
  • 999
    GROMMET FOR PASSAGE OF LINE
  • 999
    SHEET METAL SCREW FUEL STRAINER SCREEN TO FUEL TANK
  • 999
    SHEET METAL SCREW BRACKET TO FLOOR PLATE
  • 999
    SCREW FUSE BOX TO SIDE MEMBER,5 097182
  • 999
    SCREW
  • 999
    SCREW OIL PRESSURE GAUGE AND COOLING WATER TEMPERATURE GAUGE
  • 999
    SCREW BRACKET TO COVERING, FROM IDENT NO. K 074703ALSO INSTALLED ON K 062141
  • 999
    SCREW COVER TO CONVERTER HOUSING
  • 999
    SCREW
  • 999
    SCREW
  • 999
    LOCK WASHER. SPRING LOCK WASHER ELECTRIC CABLE TO HORN TO 004 542 44 20 /45 20
  • 999
    LOCK WASHER 3/2-WAY SOLENOID VALVE TO BRACKET
  • 999
    LOCK WASHER EXTENSIBLE BRAKE VALVE TO CAB
  • 999
    LOCK WASHER TAIL LAMP TO BRACKET
  • 999
    SPRING WASHER ALTERNATOR CONNECTION D+
  • 999
    SPRING WASHER , Replaced By: N000137004202
  • 999
    SPRING WASHER CABLE TO ALTERNATOR
  • 999
    SPRING WASHER LICENSE PLATE TO BRACKET
  • 999
    SCREW WIRE CABLE TO BRACKET OF BEARING BRACKET
  • 999
    SCREW BRACKET MOUNTING
  • 999
    SCREW , Replaced By: N304017005002
  • 999
    SCREW BRACKET TO BRACKET
  • 999
    SCREW BRACKET TO AIR INTAKE PIPE
  • 999
    SCREW COVER PLATE TO BRACKET
  • 999
    SCREW , Replaced By: N304017006018
  • 999
    SCREW , Replaced By: N304017006016
  • 999
    SCREW , Replaced By: N304017008016
  • 999
    NUT AIR INTAKE PIPE TO AIR INTAKE PIPE,937184
  • 999
    NUT BOOT TO AIR DUCT AND TO AIR CLEANER
  • 999
    NUT
  • 999
    NUT TACHOGRAPH TO BRACKET
  • 999
    NUT
  • 999
    NUT CYLINDER TO BRACKET TO0002902112
  • 999
    NUT
  • 999
    TOOTHED WASHER
  • 999
    TOOTHED WASHER OVERLOAD PROTECTOR TO TERMINAL BOARD
  • 999
    SHEET METAL SCREW , UP TO CHASSIS116.024,025 040083 116.028,029 026529 116.032,033 036462
  • 999
    SHEET METAL SCREW CABLE CONNECTOR TO BRACKET, 000,001,010 UP TO CHASSIS 130557, 100,101,110 UP TO CHASSIS 225647
  • 999
    SHEET METAL SCREW
  • 999
    SHEET METAL SCREW. TAPPING SCREW , Replaced By: N007981003214
  • 999
    SHEET METAL SCREW BATTERY CABLE MOUNTING
  • 999
    SHEET METAL SCREW
  • 999
    SHEET METAL SCREW
  • 999
    SHEET METAL SCREW BRACKET TO FLOOR PLATE, Replaced By: N000000000460
  • 999
    SHEET METAL SCREW WIRE CABLE TO CAB
  • 999
    SHEET METAL SCREW , Replaced By: N000000002062
  • 999
    SHEET METAL SCREW , Replaced By: N007981004339
  • 999
    SHEET METAL SCREW WIRE CABLE TO MOUNTING CLAMP,774712
  • 999
    SHEET METAL SCREW , Replaced By: N000000000459
  • 999
    SHEET METAL SCREW COVERING TO REINFORCEMENT
  • 999
    SHEET METAL SCREW FOOT DIMMER SWITCH TO TOEBOARD, 010 FROM CHASSIS 032685,012 FROM CHASSIS 069293
  • 999
    SCREW STEERING COLUMN MOUNTED SWITCH TO STEERING COLUMN BRACKET M4X10
  • 999
    SCREW ELECTRIC CABLE TO HORN
  • 999
    SCREW PLUG MOUNTING
  • 999
    SCREW , Replaced By: N007985004107
  • 999
    SCREW WIPER PULSE SENDER UNIT TO APPARATUS PLATE
  • 999
    SCREW ELECTRIC CABLE TO FUSE BOX
  • 999
    SCREW , Replaced By: N000000001933
  • 999
    SCREW ,K 062140, Replaced By: N007985006580
  • 999
    SCREW APPARATUS PLATE TO CAB,K 062140
  • 999
    INSULATING HOSE PRESSURE REGULATOR,ANTI-FREEZE DEVICE, ORDER BY THE METER
  • 999
    CLAMP WIRE CABLE TO CAB
  • 999
    CLAMP , Replaced By: A1279950020
  • 999
    FUSE
  • 999
    FUSEA8
  • 999
    FUSE , Replaced By: A0015457534
  • 999
    BULB2W
  • 999
    SCREW LEVER TO SHAFT
  • 999
    SCREW COVER PLATE TO COVER PLATE M 6 X 12
  • 999
    SCREW OIL-DIPSTICK GUIDE TUBE TO BRACKET
  • 999
    NUT BATTERY MOUNTING
