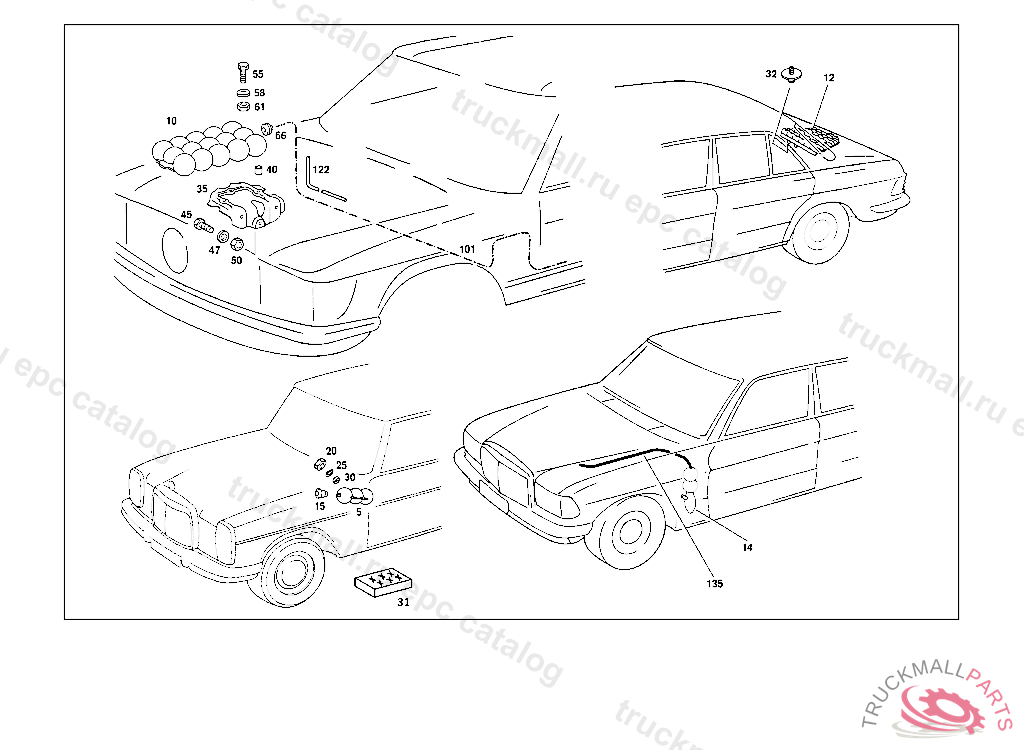

Поз.
Артикул
Описание
5
TANK , Replaced By: A1158000519
5
TANK , FROM CHASSIS:114.005,007,008,015,017 120954 114.011 014765 114.060 001693 114.062 001710, Replaced By: A1158000419
5
TANK , FROM CHASSIS: 010 060996 110 152519
10
TANK
10
TANK , EXHAUST STOCK OF OLD PART NUMBERS FIRST UP TO CHASSIS: 116.020 072528 116.024,025 068900 116.028,029 036006 115.032,033 055205 116.036 001346, Replaced By: A1168000219
10
TANK
12
TANK , EXHAUST STOCK OF OLD PART NUMBERS FIRST UP TO CHASSIS: 123.003,026,028 102823 123.007,033 085173 123.130 256166 123.053 024128, Replaced By: A1238001419
12
TANK
14
TANK
15
SEAL VACUUM SUPPLY TANK
15
SEAL
15
SEAL , Replaced By: A1238050298
20
NUT BALL PIVOT TO LEVER
25
TOOTHED WASHER MASKED STOP LAMP
30
SEAL RING
31
FOAM PLASTICS FRONT ROOF RAIL
32
RIVET
32
RIVET , Replaced By: A0009904892
32
RIVET , Replaced By: A0009904292
35
BRACKET
40
SPACER TUBE
45
SCREW APPARATUS PLATE M 6X45
45
SCREW , Replaced By: N304017006027
47
WASHER COMPRESSED AIR LINE TO BRACKET, Replaced By: N000125006449
50
NUT , Replaced By: N913002006009
50
NUT OIL TANK TO BRACKET
55
SCREW , Replaced By: N304017006018
55
SCREW COVER PLATE TO COVER PLATE M 6 X 12
58
SPRING WASHER LICENSE PLATE TO BRACKET
61
NUT BALL PIVOT TO LEVER
66
GROMMET FOR PASSAGE OF LINE, UP TO IDENT NO. 5 033766,ALSO INSTALLED ON 5 039977
101
HOSE GREY-YELLOW,FROM VACUUM DISTRIBUTOR IN ENGINE COMPARTMENT TO SUPPLY TANK, ORDER BY THE METER
101
HOSE , Replaced By: A0019973952
122
INSULATING HOSE5 X 0.6 MM, ORDER BY THE METER
135
HOSE FROM CHECK VALVE TO SUPPLY TANK 1300 MM, ORDER BY THE METER
999
TANK SUBSEQUENT INSTALLATION
999
CLIP
